Removal And Installation: Removal

  1. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
    GC0202811Courtesy of CHRYSLER GROUP, LLC

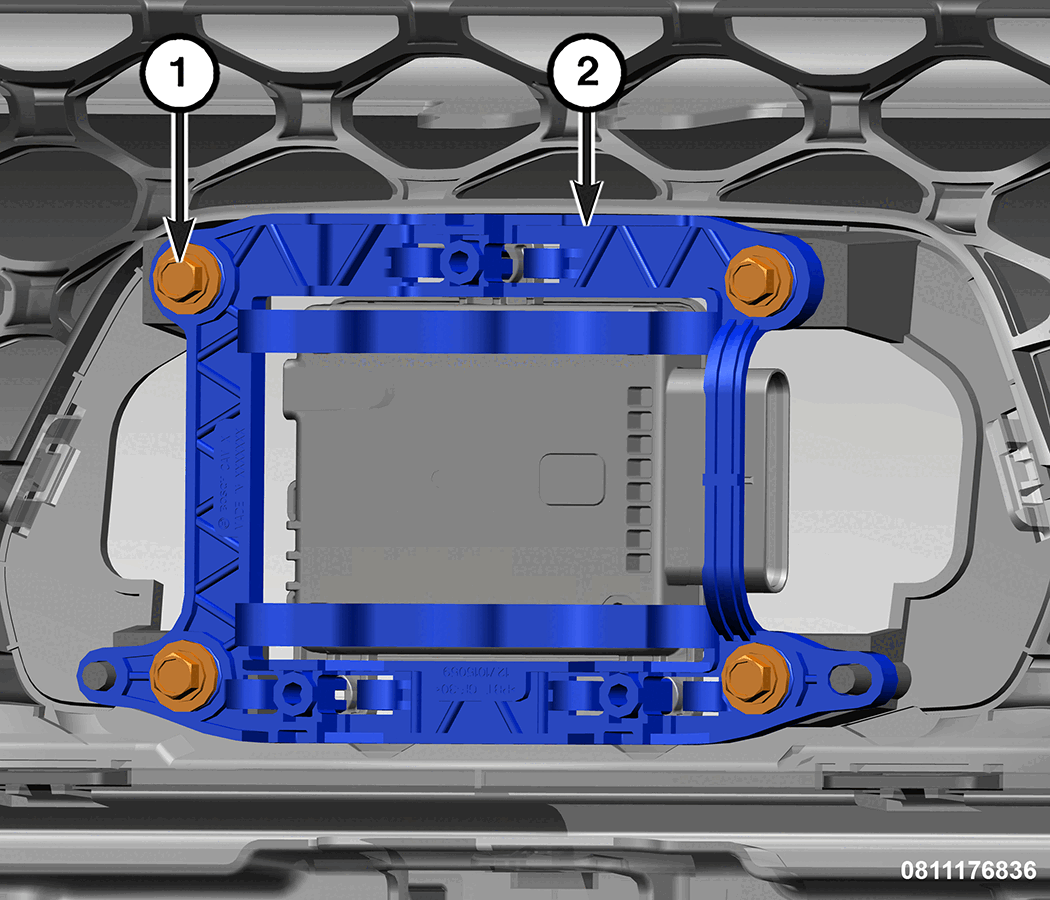

  2. Remove the fasteners (1) securing the ACC bracket (2) with radar to the fascia.
    GC0202792Courtesy of CHRYSLER GROUP, LLC

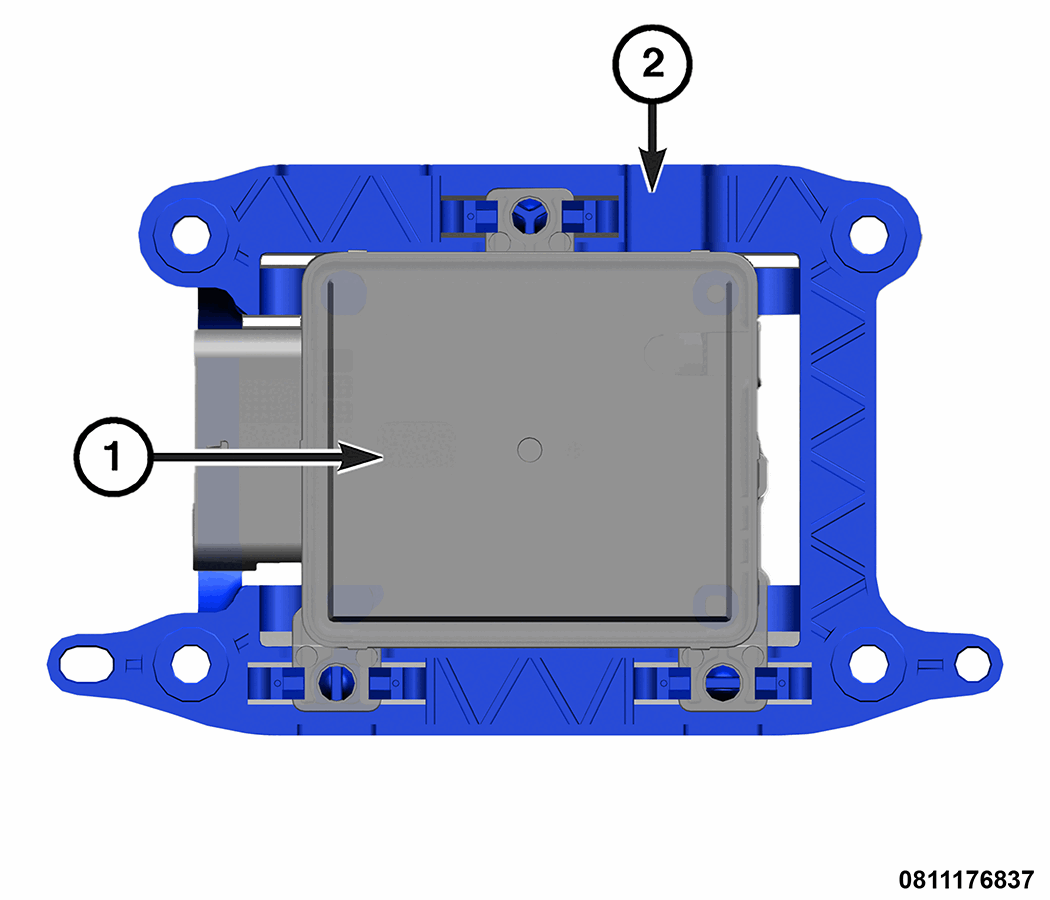

  3. Remove the ACC bracket (2) with the radar (1) as an assembly from the front fascia.
