Relay, MOPAR Connect TELEMATIC Box: Installation
WARNING: This page is about a different car, the 2021 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

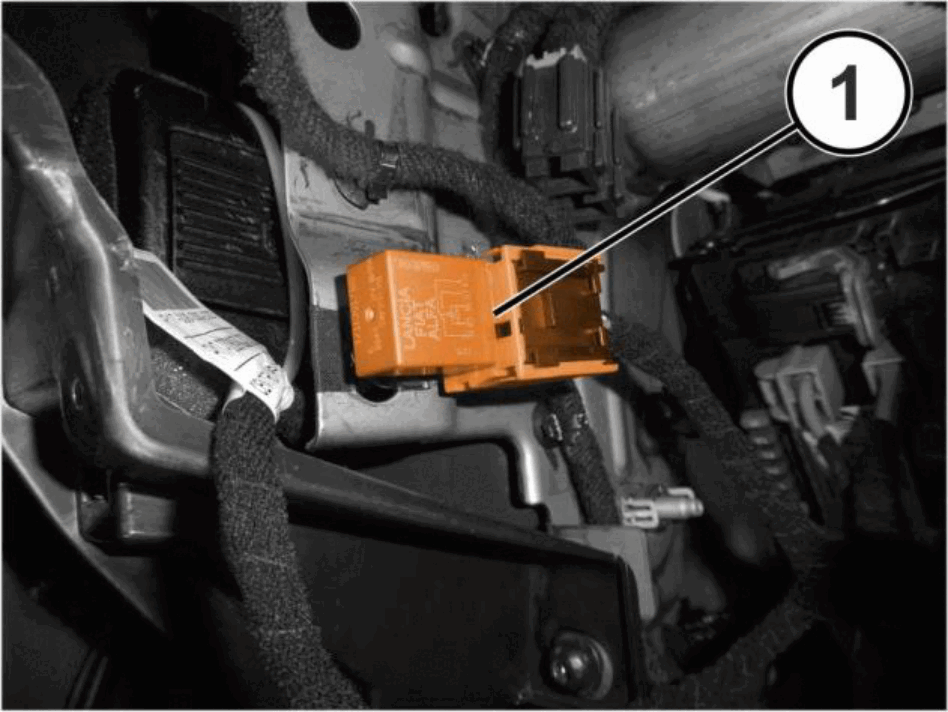

- Install the T-Box relay (1), taking care not to detach the relay-holder from the mounting bracket.
- Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
