Wiring, MOPAR Connect TELEMATIC Box: Installation

WARNING: This page is about a different car, the 2021 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

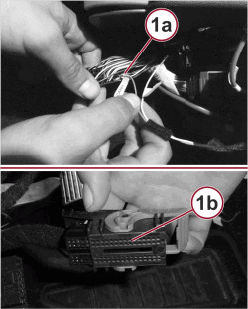

Connect the door opening signal cable (1a) (green) of the new T-box harness to the pin 11 position and replace the internal connection cover block (1b) of the Body Computer C6 connector.
NOTE:
When done, restore the connector wiring with a new tie.

Courtesy of CHRYSLER GROUP, LLC

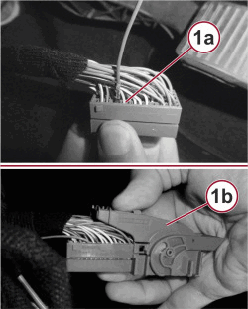

Connect the two cables (1a) CAN L (white) and CAN H (blue) of the new T-box harness to the position corresponding to pins 52 (CAN L) and 51 (CAN H) respectively and replace the block which covers the internal connections of the Body Computer C6 connector.
NOTE:
When done, restore the connector wiring with a new tie.

Courtesy of CHRYSLER GROUP, LLC

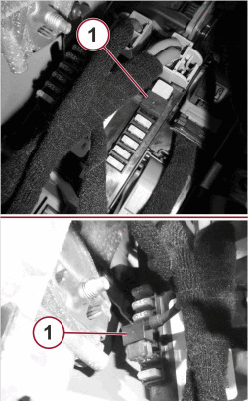

Fit the fuses F51 (+15) and F36 (+30) (1) recovered earlier during disconnection on the turret fuse-holders of the new T-box harness.

Courtesy of CHRYSLER GROUP, LLC
Connect the connectors (1) of the new T-box harness (with twin fuse) in the positions previously occupied by the corresponding fuse-holders of the Body Computer.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Take great care not to get the cables to be joined dirty as this will adversely affect the continuity of the electrical conduction. While heating the thermal shrinking tubs, as a result of the high temperatures reached, the drier and the heat shield must not, under any circumstances, come into contact with cladding parts or other components.

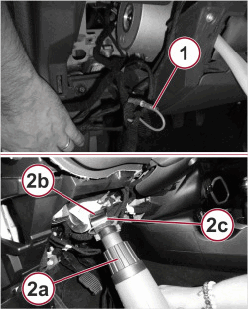

Fit the thermal shrinking connection tubes (1) onto the two sets of harness wires and use an air heater (2a) with heat shield (2b) to heat the thermal shrinking tube (2c) until the ring of solder melts; then wait for it to cool.
NOTE:
The air heater (drier) used in this procedure is commercially available.

NOTE:
Apply insulating tape to the two wires individually and then combine the wires with the main wiring and tape to create a more compact bundle.

Courtesy of CHRYSLER GROUP, LLC

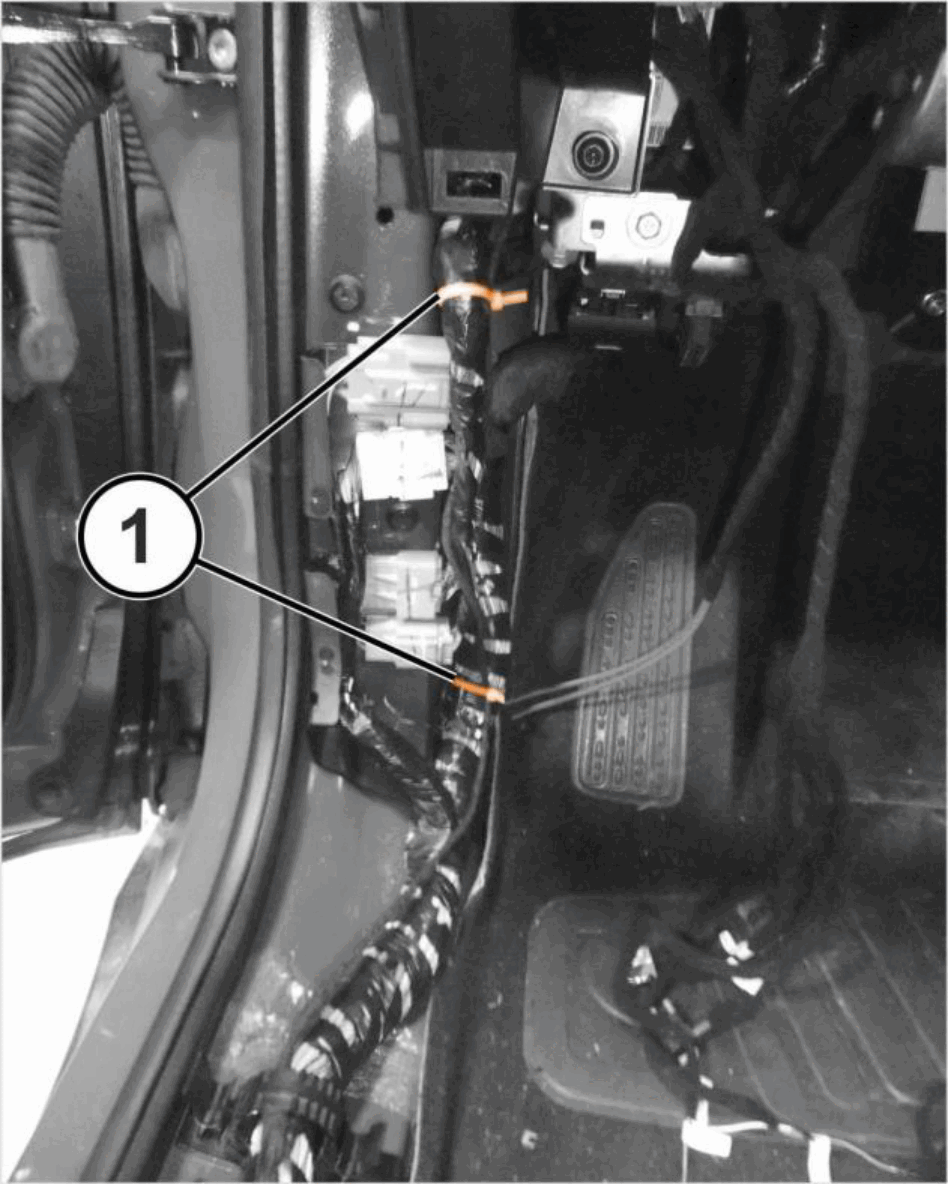

Pass the ground lead of the T-box harness along the internal side panel and tie (1) it to the vehicle wire harness.

Courtesy of CHRYSLER GROUP, LLC

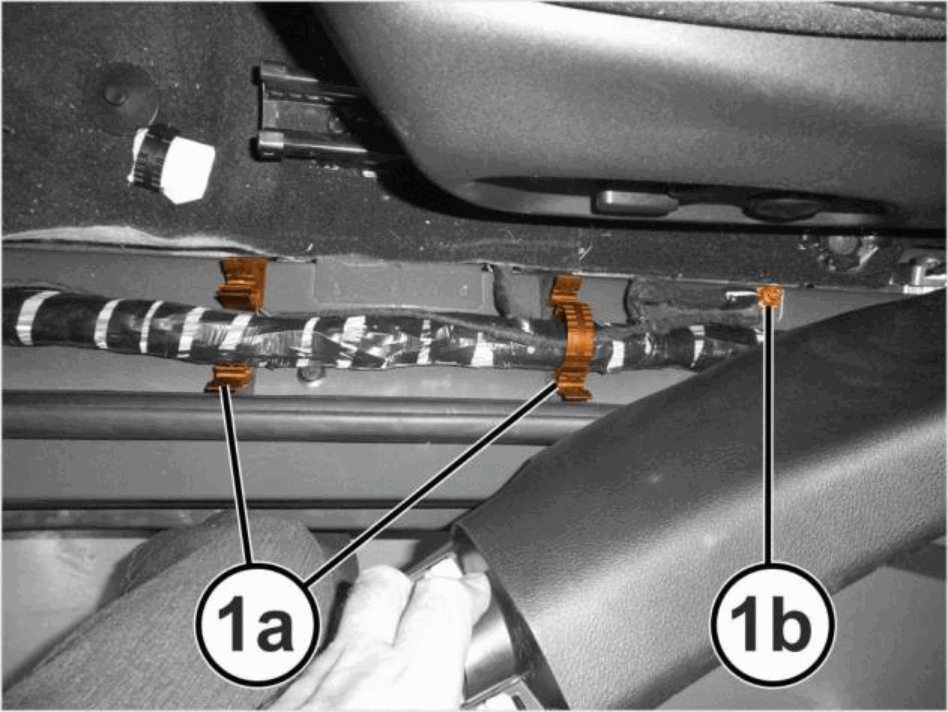

Remove the nut on the ground pin near the central pillar and open the vehicle wiring retainers along the side panel.
Insert the T-box ground lead into the wiring retainers (1a) and close them, then position the T-box harness ground ring (1b) on the ground pin over any existent wiring and tighten securely.
NOTE:
If there are previously removed wires connected to this ground pin, be careful to insert the ground wire of the T-box harness so that it is offset by 90° with respect to the previous ones.

Courtesy of CHRYSLER GROUP, LLC
Fit the relay holder with the T-box relay (1) on the cradle left in place earlier.

Courtesy of CHRYSLER GROUP, LLC

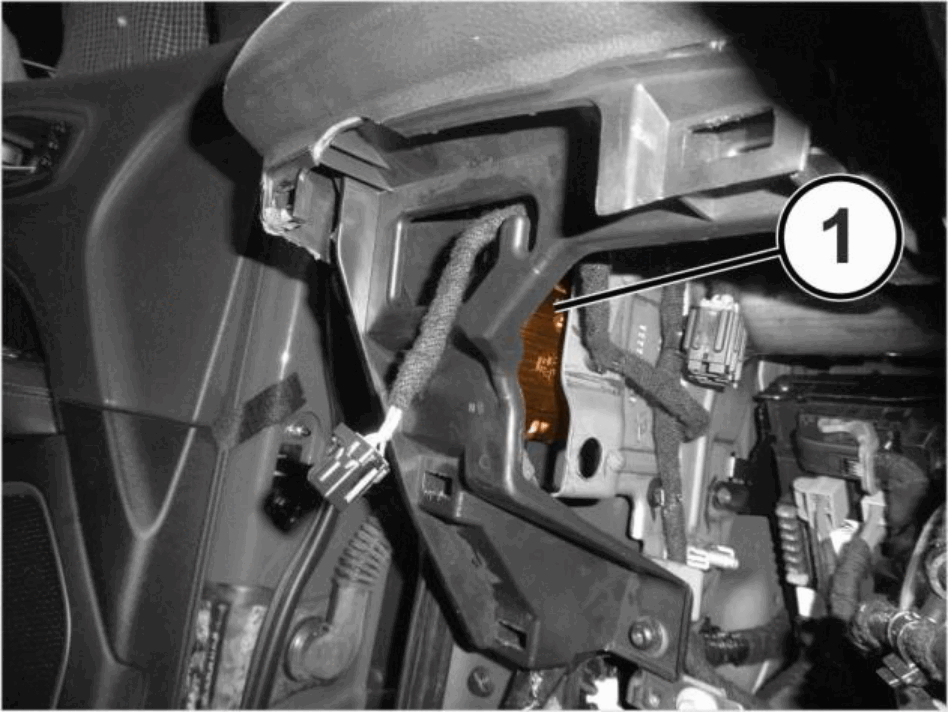

Insert the T-box (1), already connected to its harness, inside the dashboard, while keeping it vertical.

Courtesy of CHRYSLER GROUP, LLC

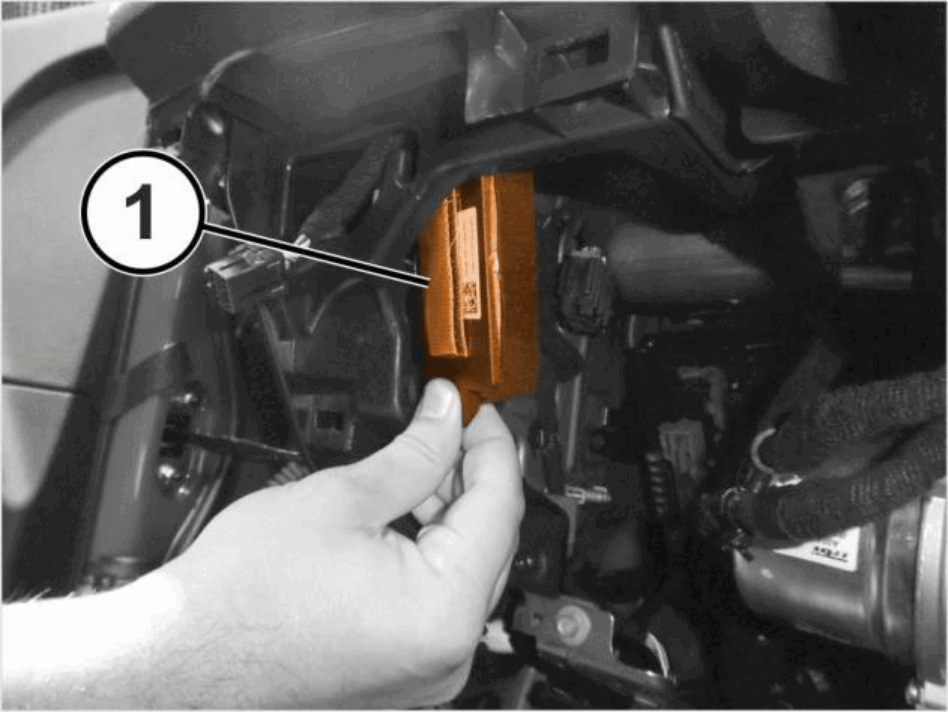

Position the T-box (1) on the internal dashboard bracket and turn it to the horizontal position with the wiring facing downwards.

Courtesy of CHRYSLER GROUP, LLC

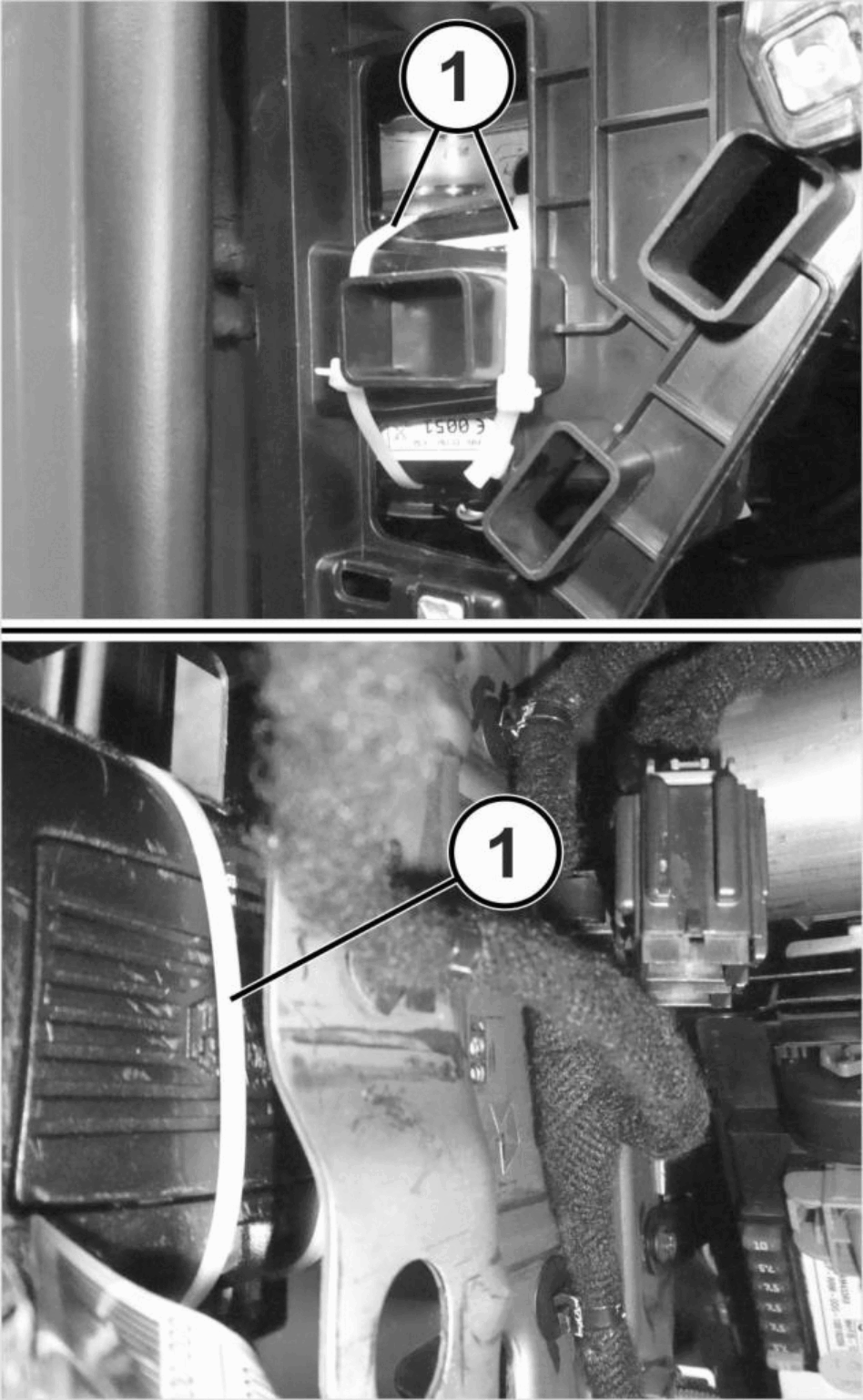

Fix the T-box in position using the bands (1) provided.
NOTE:
Take care to position the bands so that they do not also pass over the innermost metal bracket.

Courtesy of CHRYSLER GROUP, LLC
Fit the wiring together with the other cables and fasten the cable retainer (1).
Tie the wiring as shown in illustration and secure the T-box harness to the car wiring with the last ties (2).
Install the lower B pillar trim. Refer to PANEL, B-PILLAR TRIM, LOWER, REMOVAL AND INSTALLATION or PANEL, B-PILLAR TRIM, UPPER, REMOVAL AND INSTALLATION .
Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
On completion of installation of the T-box module, connect the diagnosis instrument to the car's OBD socket, locate the BCM module and check for errors.
