Description And Operation

WARNING: This page is about a different car, the 2021 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

Courtesy of CHRYSLER GROUP, LLC

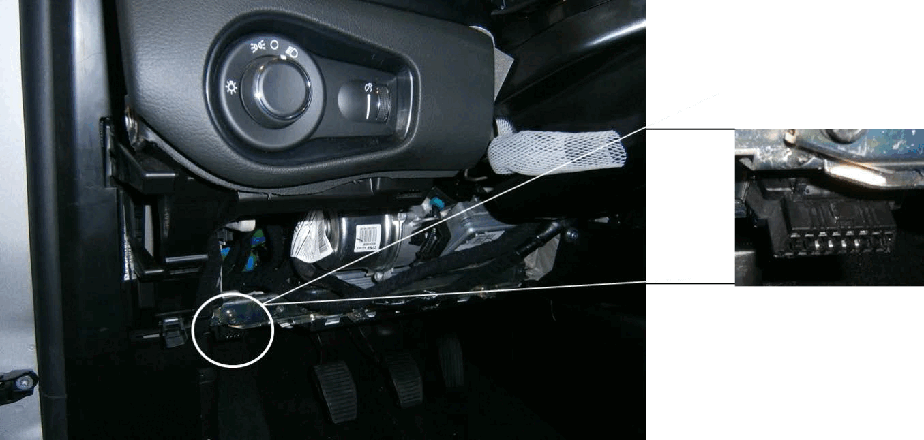

The Data Link Connector (DLC) - Is a 16-way molded plastic connector insulator on a dedicated take out of the instrument panel wire harness. This connector is located at the lower edge of the instrument panel, outboard of the steering column. The connector insulator is retained by integral snap features within a rectangular cutout in a mounting bracket located just under the lower edge of the instrument panel, directly above the hood release.

OPERATION

The central diagnostic socket receives a direct battery power supply from the line protected by a fuse located in the BCM. The BCM receives a direct power supply from the battery through the line protected by maxi fuse in the engine compartment junction unit. The BCM receives an ignition-operated power supply. This signal is used, among other things, to "wake up the network".
