Removal And Installation: Removal

WARNING: This page is about a different car, the 2021 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to align the PROXI configuration data into the new ECU. Follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under Body Control Module (BCM) Miscellaneous Functions menu.

To replace the Antilock Brake System (ABS) Module, remove the Integrated Control Unit (ICU). Refer to INTEGRATED CONTROL UNIT (ICU), REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

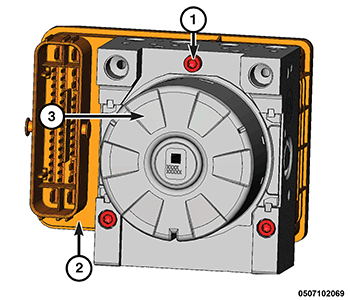

Remove the three ABS Module screws (1).
Separate the ABS Module (2) from the Hydraulic Control Unit (HCU) (3).
