Removal And Installation: Installation

WARNING: This page is about a different car, the 2021 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

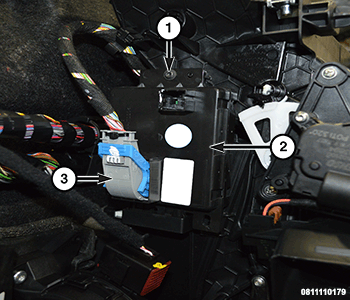

Illustration shown with instrument panel removed from view for clarity.

Courtesy of CHRYSLER GROUP, LLC

Position the HVAC module (2) to the HVAC housing.
Install and tighten the screw (1) that secures the HVAC module to the HVAC housing.
Connect the wire harness connector (3) to the HVAC module.
Install the steering column. Refer to COLUMN, REMOVAL AND INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
NOTE:
If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
Initiate the Actuator Calibration function using a scan tool. Refer to STANDARD PROCEDURE .
