Removal And Installation: Installation

WARNING: This page is about a different car, the 2021 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

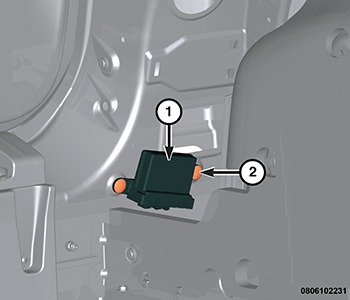

Position the Park Assist Module (PAM) (1) into the left of the cargo are behind the left rear wheel house.
Connect the two or three wire harness connectors to the PAM connector receptacles.
Install the two plastic push-pin retainers (2) that secure the PAM.
Install the left inner rear quarter panel. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .
Connect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), reconnect the IBS connector.
NOTE:
If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
