Removal And Installation: Removal

WARNING: This page is about a different car, the 2021 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If a NEW Security Gateway Module (SGW) is being installed, use the diagnostic scan tool to flash the module. Failure to flash the module will leave the SGW module in a locked mode preventing SGW module operation.

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

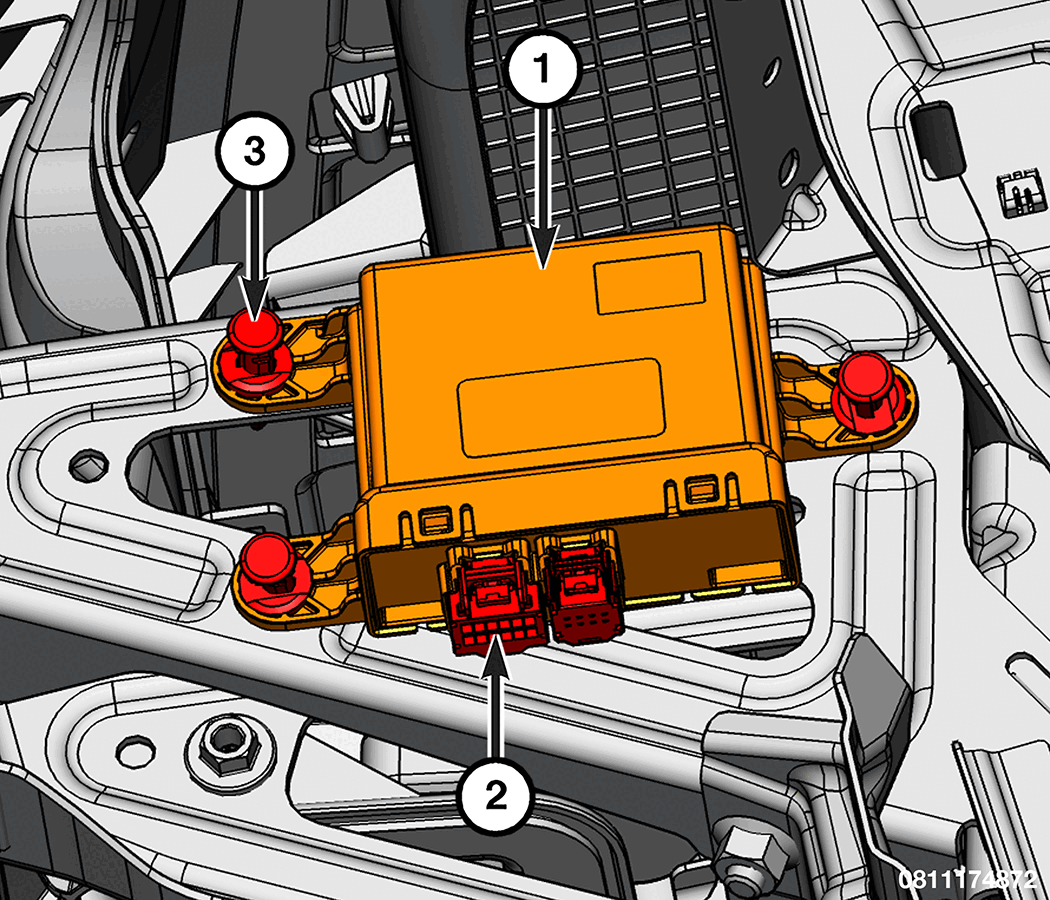

Remove the (SGW) fasteners (3) and disconnect the wire harness connectors (2).
Remove the (SGW) (1) from the instrument panel carrier bracket.
