Shock Absorbers

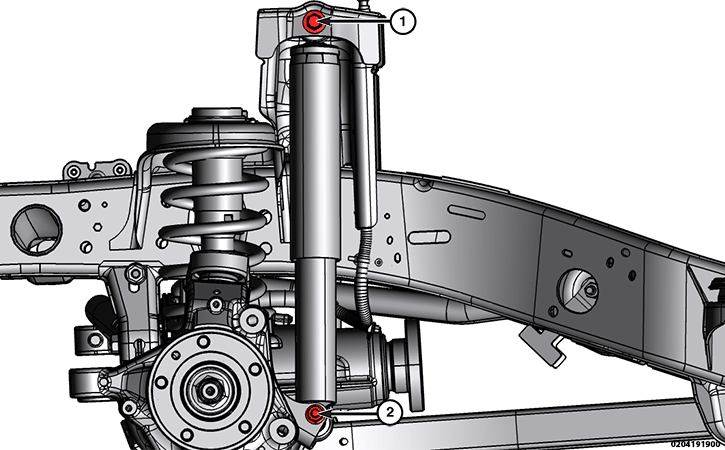

GC0205935Courtesy of CHRYSLER GROUP, LLC
TORQUE SPECIFICATIONS - SHOCK ABSORBERS

CALLOUT DESCRIPTION SPECIFICATION COMMENT
1 Shock Absorber Upper Bolt 140 N. m (103 Ft. Lbs.)  -
2 Shock Absorber Lower Bolt 100 N. m (77 Ft. Lbs.)  -
