Removal And Installation: Installation

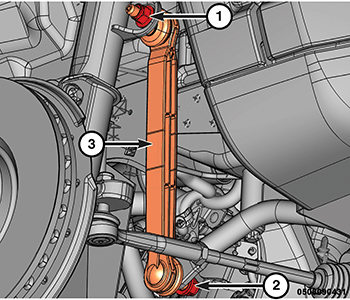

GC0179283Courtesy of CHRYSLER GROUP, LLC
  1. Place the stabilizer bar link upper joint stud through the hole in the strut, and install a NEW  upper stabilizer bar link nut (1).
  2. Install the lower stabilizer bar link in the stabilizer bar and install a NEW  lower stabilizer bar link nut (2).
  3. Tighten both of the stabilizer link nuts to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  4. Install the tire and wheel assembly. Refer to TIRES & WHEELS, REMOVAL AND INSTALLATION .
  5. Remove the support and lower the vehicle.
