Aft Link: Installation

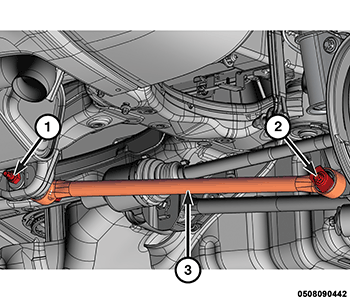

- Position the aft link (3) to the vehicle.
- Install the aft link inner bolt (1) and aft link outer bolt (2).
- With a suitable jack, raise the rear suspension to the proper torque specification. Refer to WHEEL ALIGNMENT, TECHNICAL SPECIFICATIONS .
- Tighten the aft link inner bolt (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Tighten the aft link outer bolt (2) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Install the tire and wheel assembly. Refer to TIRES & WHEELS, REMOVAL AND INSTALLATION .
- Remove the support and lower the vehicle.
- Perform a wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
