Description And Operation: Notes
DESCRIPTION

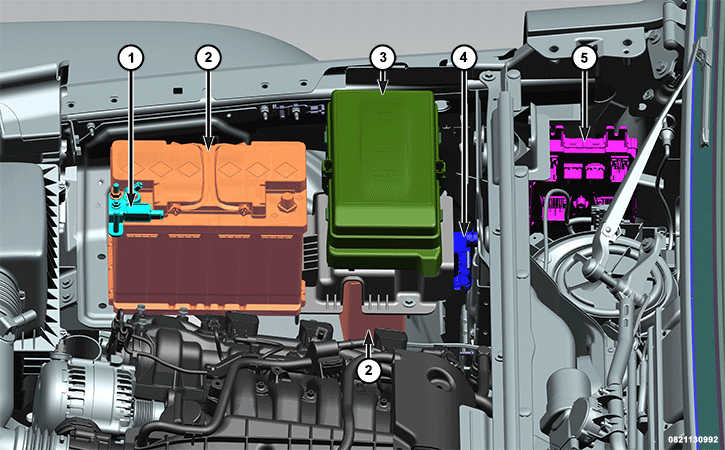

COMPONENT INDEX
| 1. | Intelligent Battery Sensor (IBS) |
| 2. | Dual Battery System (Auxiliary and Cranking) - Auxiliary battery is located beneath the Power Distribution Center (PDC) |
| 3. | Main Power Distribution Center (PDC) |
| 4. | Power Control Relay (PCR) |
| 5. | Body Control Module (BCM) |
| - | PCR Control Relay - Located in the PDC |
| - | Battery Cables |
