Display Screen Module

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM, 3.0L , BATTERY DISCONNECT AND CONNECT - SINGLE 12V BATTERY SYSTEM, 6.4L , BATTERY DISCONNECT AND CONNECT - ETORQUE SYSTEM, 5.7L .
2. Remove the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Bezel

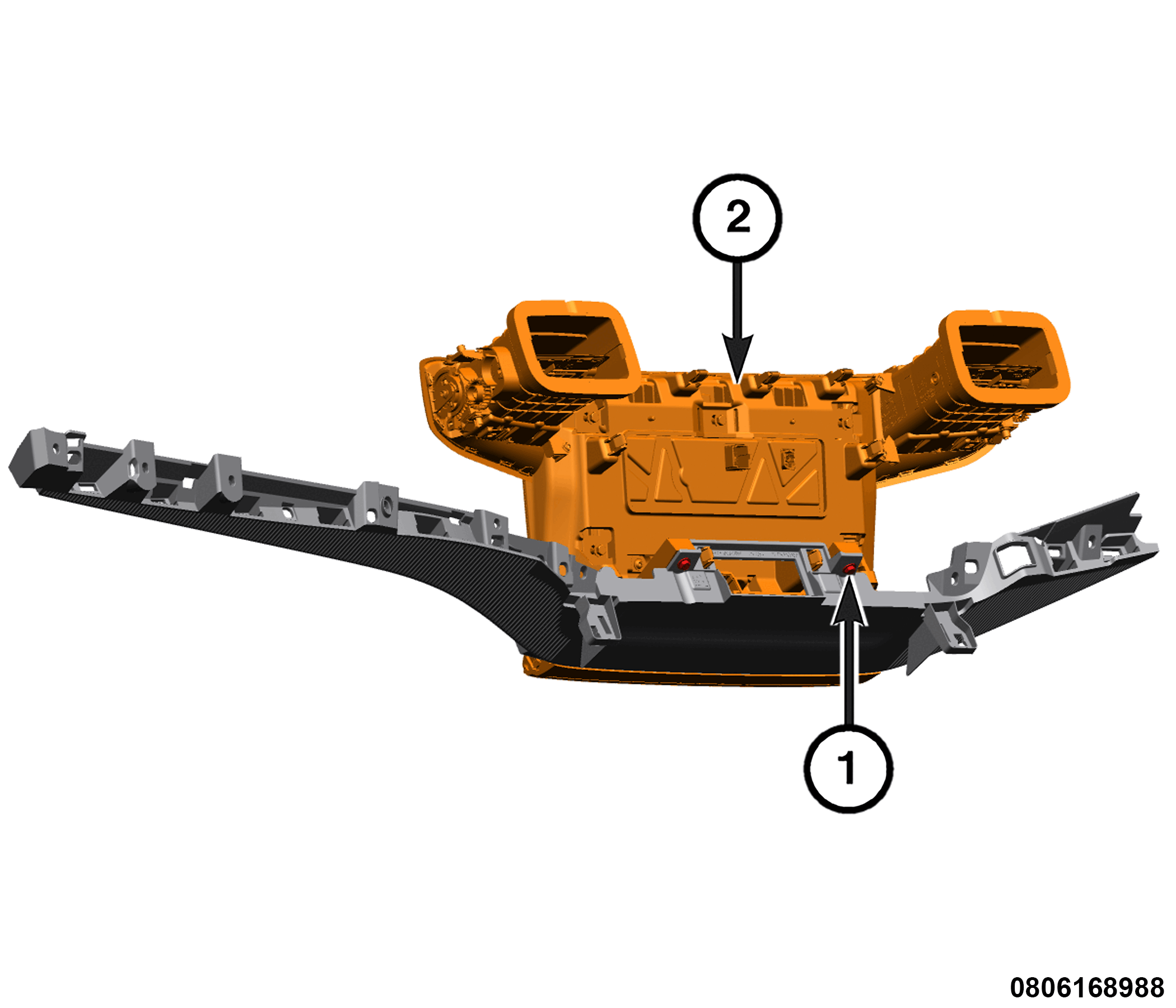

3. Remove the fasteners from the back of the instrument panel center bezel.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Bezel

   2 - Retainer

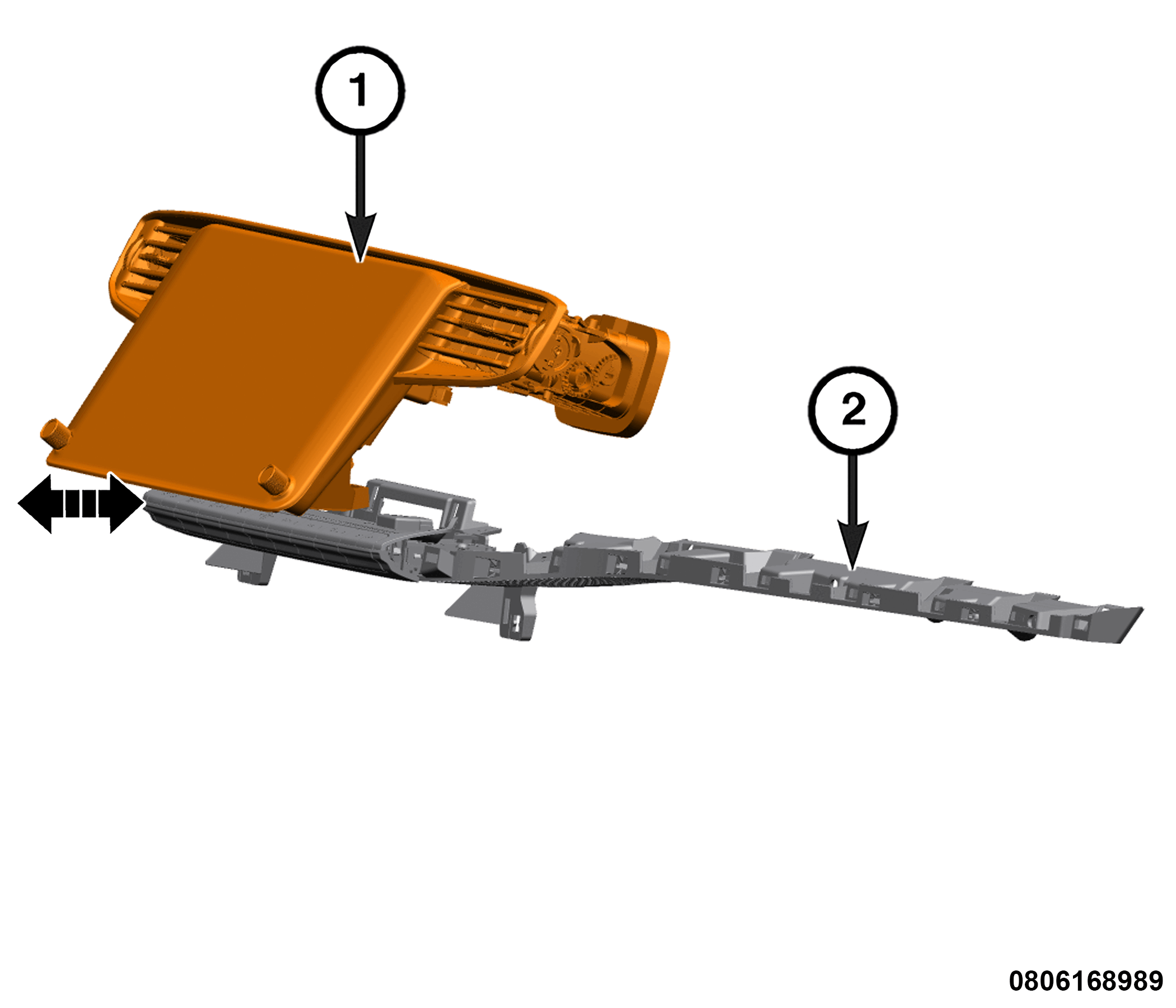

4. Release the center bezel from the instrument panel trim retainer.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Display Screen Module (DSM)

   3 - Bezel

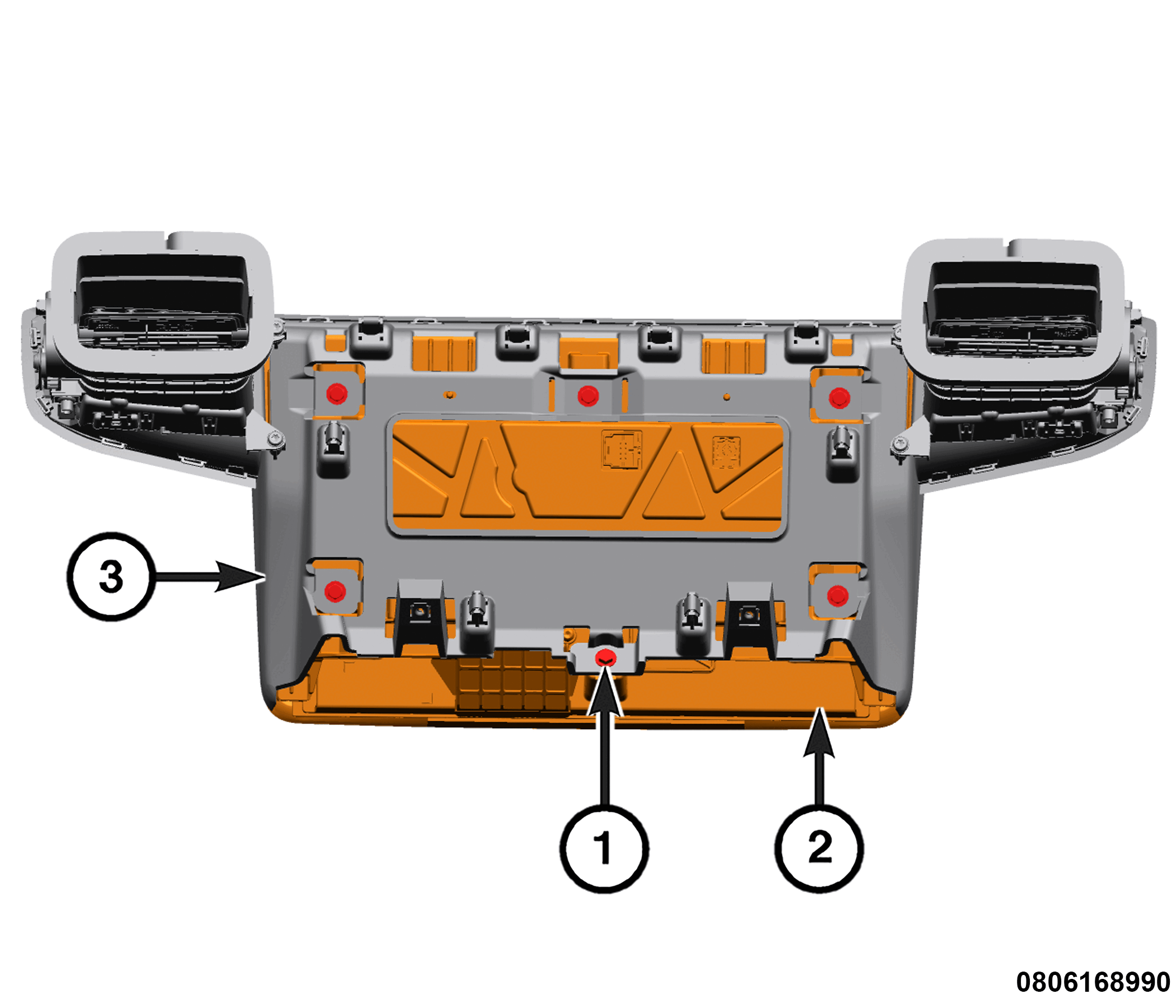

5. Remove the fasteners that retain the DSM to the center bezel.

   Courtesy of CHRYSLER GROUP, LLC

   1 - DSM

   2 - Bezel

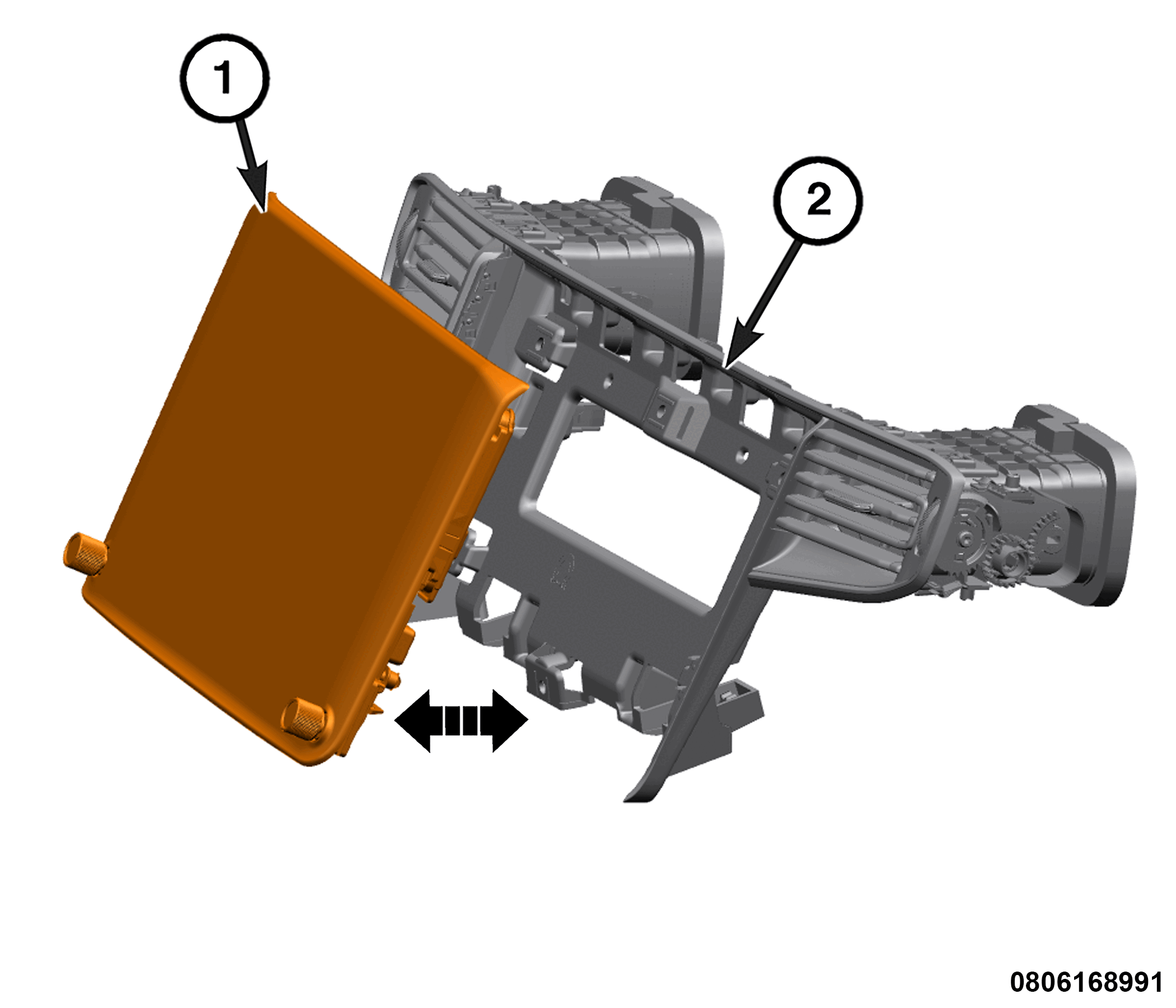

6. Separate the DSM form the center bezel.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
