Torque Specifications: BELLHOUSING

Courtesy of CHRYSLER GROUP, LLC

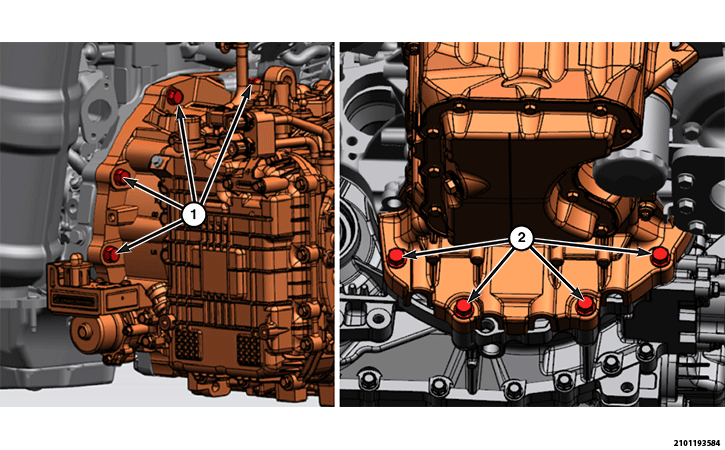

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Bellhousing to Engine Bolts	64 N.m (47 Ft. Lbs.)	-
2	Engine Oil Pan to Bellhousing Bolts	64 N.m (47 Ft. Lbs.)	-
