Removal And Installation: Flywheel: Notes
REMOVAL
FCA US LLC does not manufacture any vehicles or replacement parts that contain asbestos. Aftermarket products may or may not contain asbestos. Refer to aftermarket product packaging for product information. Whether the product contains asbestos or not, dust and dirt can accumulate on manual clutch parts during normal use. Follow practices prescribed by appropriate regulations for the handling, processing and disposing of dust and debris.
- Remove clutch pressure plate and disc. Refer to DISC, CLUTCH, REMOVAL AND INSTALLATION .NOTE:

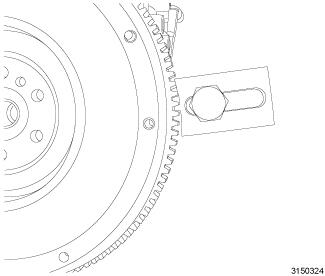

Typical installation of 10272 shown.
- Install the special tool # 10272, (Flywheel Locking Tool).NOTE:
It may be necessary to install an appropriate length 10 MM bolt, washer and nut in place of the supplied 12 MM fastener.
- While holding the flywheel against the engine, remove and DISCARD
the bolts holding the flywheel to the crankshaft flange.
1 - Flywheel Bolts 2 - Flywheel - Remove the flywheel (2) from the crankshaft.
INSTALLATION
FCA US LLC does not manufacture any vehicles or replacement parts that contain asbestos. Aftermarket products may or may not contain asbestos. Refer to aftermarket product packaging for product information. Whether the product contains asbestos or not, dust and dirt can accumulate on manual clutch parts during normal use. Follow practices prescribed by appropriate regulations for the handling, processing and disposing of dust and debris.
Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
- Install NEW flywheel bolts.
TORQUE SPECIFICATIONS
