Description And Operation: Notes
DESCRIPTION
The power distribution system consists of the following components:

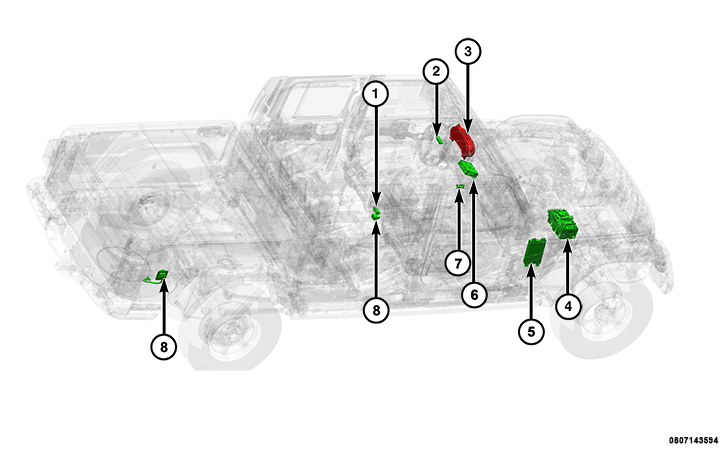

COMPONENT INDEX
| 1. | Refer to: UNIVERSAL SERIAL BUS (USB) CHARGE ONLY PORT . |
| 2. | Refer to: REAR POWER OUTLET SWITCH . |
| 3. | Refer to: INSTRUMENT PANEL CLUSTER (IPC) . |
| 4. | Refer to: POWER DISTRIBUTION CENTER (PDC) . |
| 5. | Refer to: BODY CONTROL MODULE (BCM) . |
| 6. | Refer to: POWER INVERTER MODULE (PIM) . |
| 7 | Refer to: POWER OUTLETS - 12V . |
| 8 | Refer to: POWER OUTLET - 115V/220V . |
OPERATION
The Auxiliary Switch Bank Module uses a configuration from the BCM over the Local Interior Network (LIN) bus to determine how many programmable switches are on the vehicle. The Auxiliary Switch Bank Module is used for powering aftermarket items such as light bars or electric winches.
