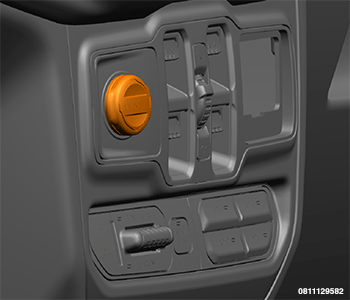

Front Power Outlet

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to: BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM .
   NOTE:

   Record the position of the retaining bosses inside power outlet.

2. Insert special tool #10246A, (Power Outlet Remover) into the retaining bosses of the power outlet.

   Courtesy of CHRYSLER GROUP, LLC

3. Pull out the base through the mounting ring by gently rocking the tool.
4. Disconnect the wire harness connector from the power outlet.
5. Set the base aside and remove the base mount ring.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Align the splines on the outside of the power outlet receptacle base with the grooves on the inside of the mount ring.
• Press firmly on the power outlet receptacle base until the retaining bosses of the mount ring are fully engaged in their receptacles.
