Torque Specifications - Front Brakes

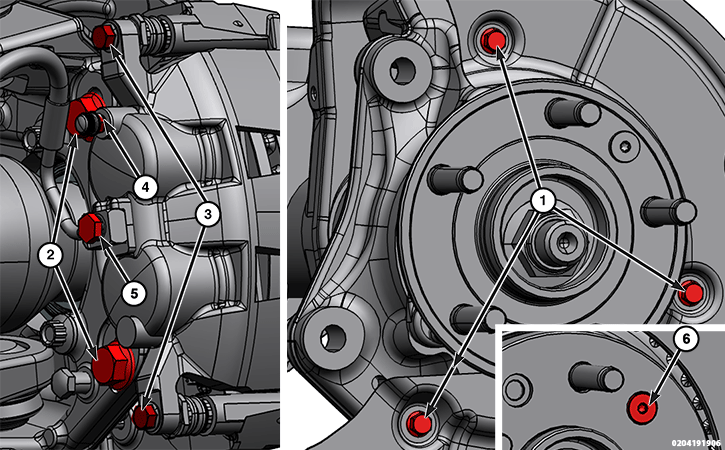

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Brake Rotor Splash Shield Bolts | 10 N. m (7 Ft. Lbs.) | - |
| 2 | Front Caliper Adapter Bolts | 195 N. m (144 Ft. Lbs.) | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. |
| 3 | Front Caliper Bolts | 37 N. m (27 Ft. Lbs.) | - |
| 4 | Front Caliper Bleed Screw | 10 N. m (7 Ft. Lbs.) | - |
| 5 | Front Caliper Brake Hose Banjo Bolt | 35 N. m (26 Ft. Lbs.) | - |
| 6 | Front Rotor Screw | 20 N. m (15 Ft. Lbs.) | - |
