Right Hand Drive: Notes

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to: BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM .
2. Remove the power distribution center. Refer to CENTER, POWER DISTRIBUTION (PDC), REMOVAL AND INSTALLATION .
3. Disconnect the two Electric Hydraulic Power Steering (EHPS) pump wire harness connectors and remove the wiring harness routing clips from the EHPS pump.

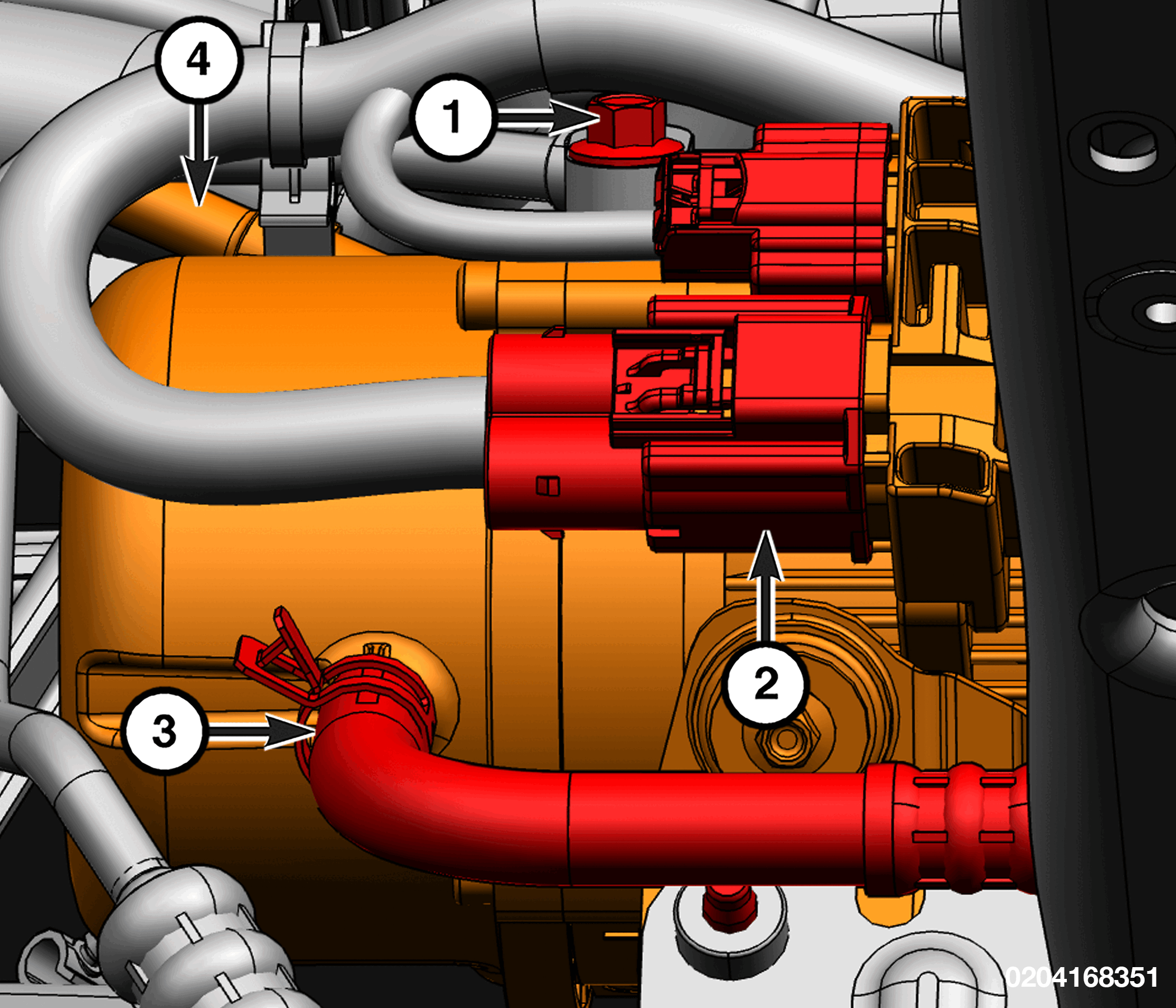

   Courtesy of CHRYSLER GROUP, LLC

   1 - Pressure Line Bolt

   2 - Wire Harness Connector

   3 - Return Line

   4 - Supply Line

4. With the hose clamp released disconnect the supply line from the EHPS pump and secure the hose end higher than the power steering pump reservoir.
5. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
6. Remove the left front wheel house splash shield. Refer to: SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
7. Remove the EHPS pump pressure line bolt and remove the EHPS pressure line from the EHPS pump.

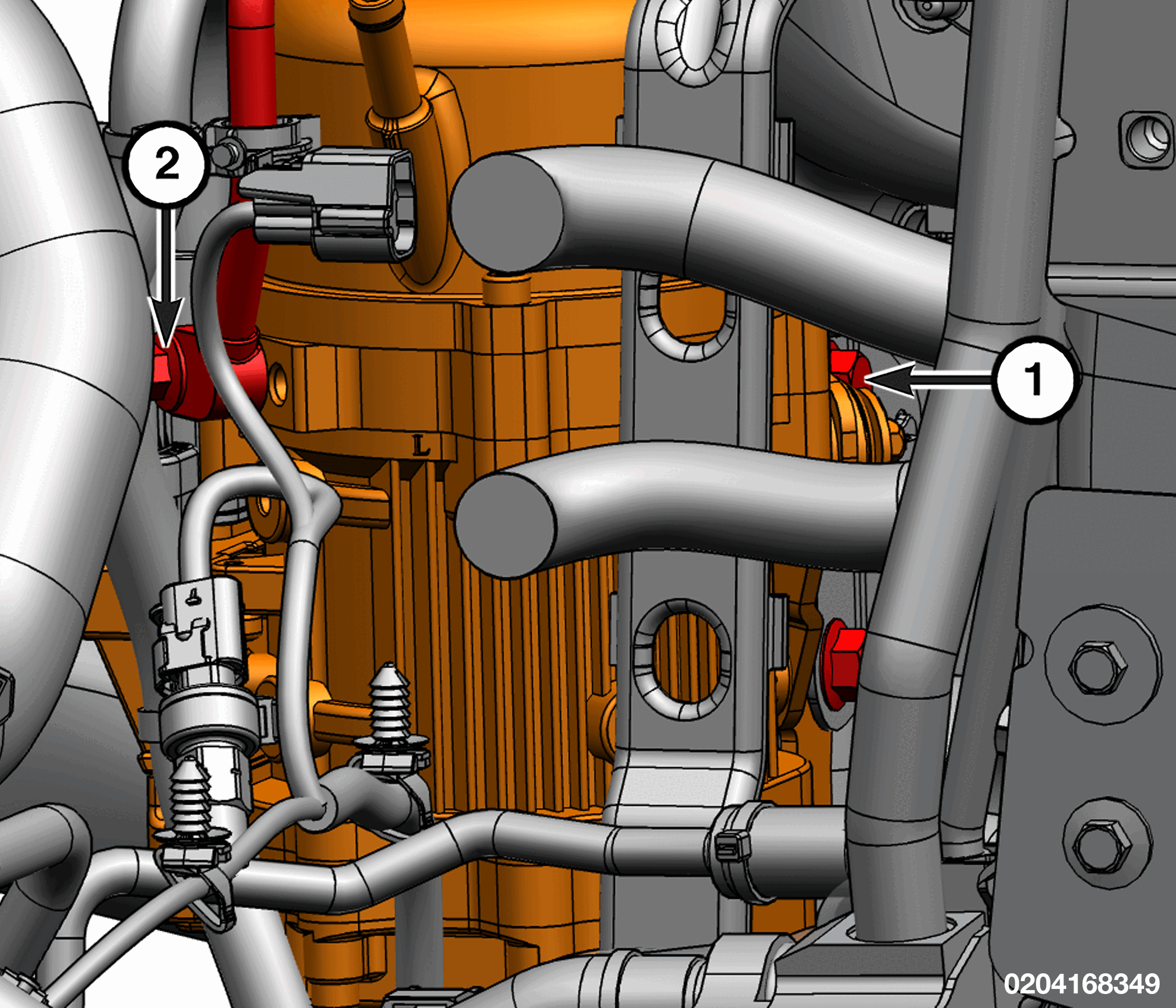

   Courtesy of CHRYSLER GROUP, LLC

   1 - Bracket Frame Bolts

   2 - Pressure Line Bolt

8. Loosen the two power steering pump bracket frame bolts.
9. With the hose clamp released disconnect the return line from the EHPS pump.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Pressure Line Bolt

   2 - Wire Harness Connector

   3 - Return Line

   4 - Supply Line

10. Remove the EHPS pump from the vehicle.

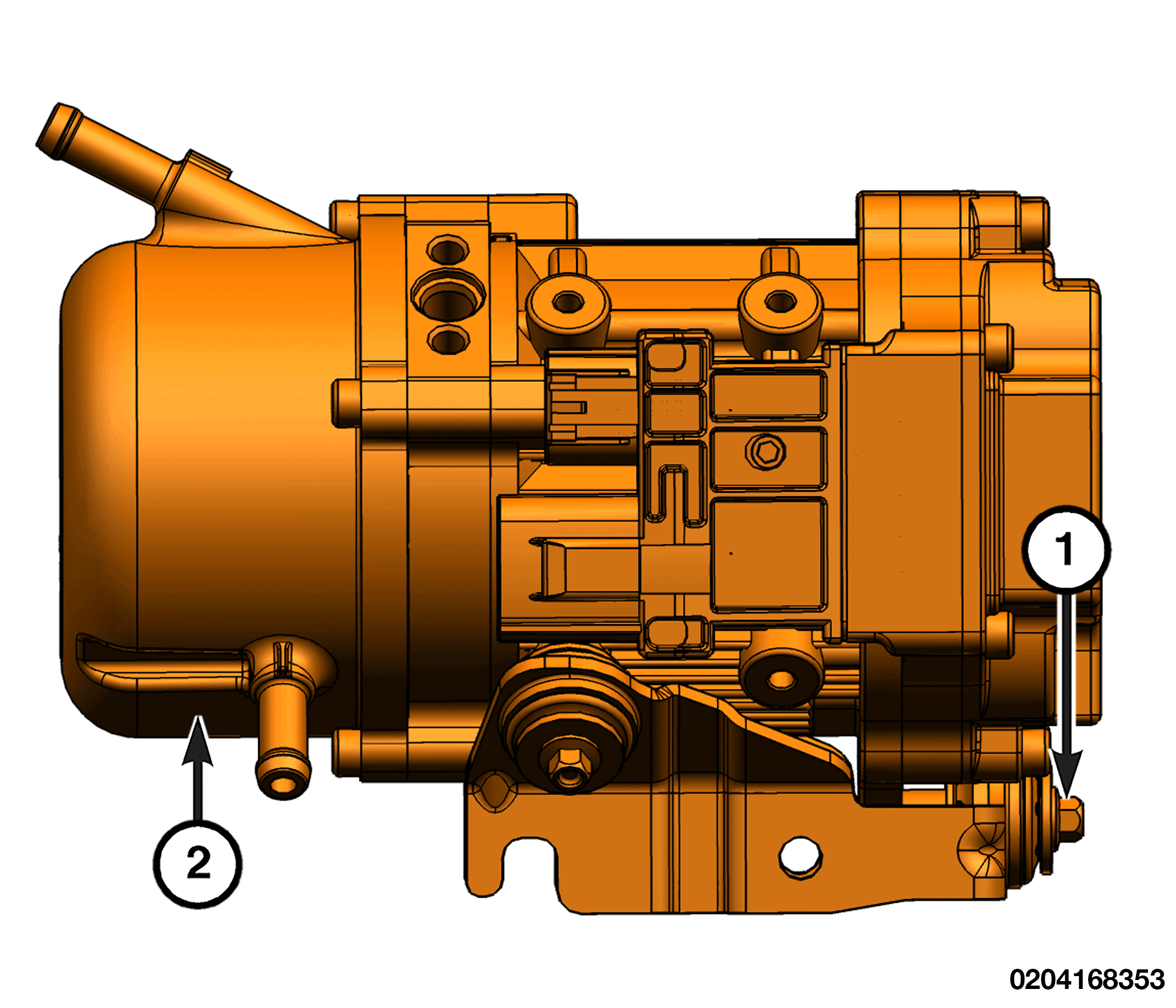

    Courtesy of CHRYSLER GROUP, LLC

    1 - Bracket Nuts

    2 - EHPS Pump

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Refill the power steering fluid and bleed the system. Refer to: POWER STEERING SYSTEM BLEEDING .
