Night Vision Processing Module

REMOVAL

1. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

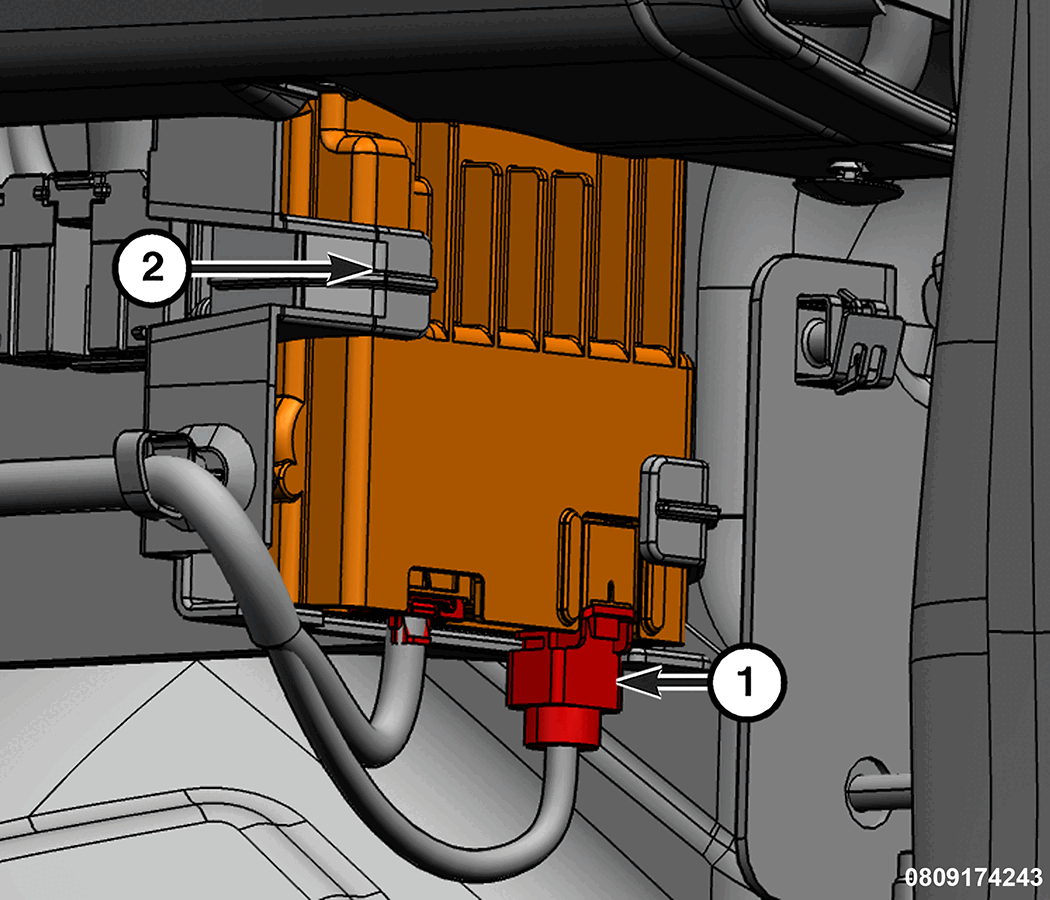

   1 - Wire Harness Connectors

   2 - Bracket

2. Disconnect the wire harness connectors from the Night Vision Processing Module (NVPM).
3. Disengage the tabs securing the NVPM to the NVPM bracket.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
