Park Assist Module: Notes

REMOVAL

1. Remove the right instrument panel silencer panel. Refer to PANEL, SILENCER, REMOVAL AND INSTALLATION .

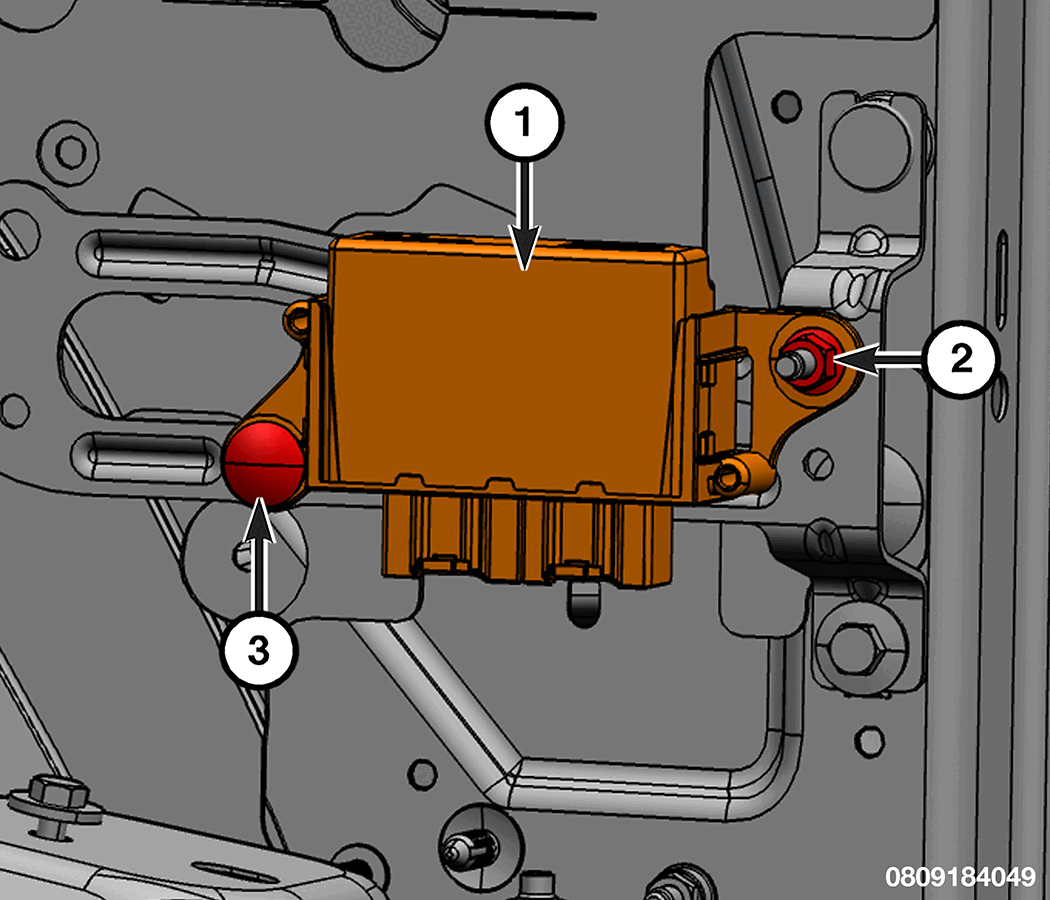

   Courtesy of CHRYSLER GROUP, LLC

   1 - Park Assist Module

   2 - Park Assist Module Nut

   3 - Park Assist Module Fastener

2. Remove the wire harness connectors from the Park Assist Module (PAM).
3. Remove the nut and push fastener securing the PAM to the bracket, then remove the PAM from the vehicle.

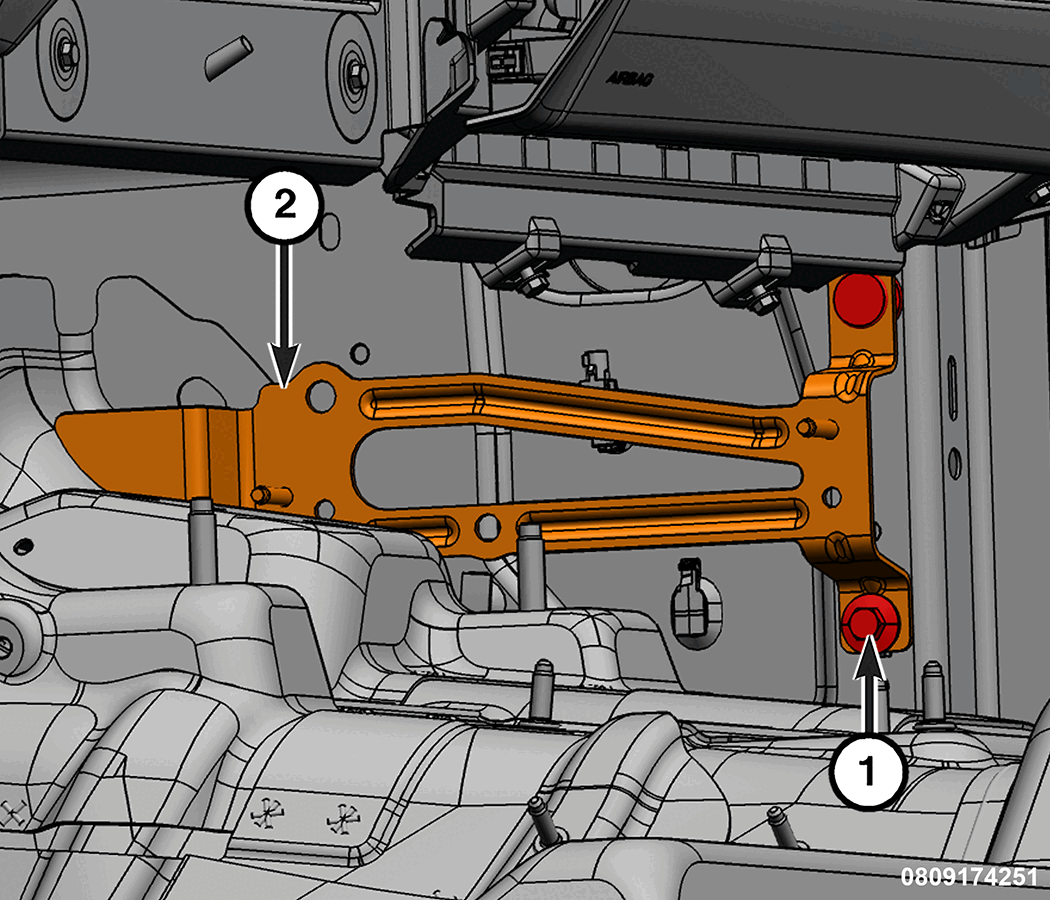

   Courtesy of CHRYSLER GROUP, LLC

   1 - Bracket Bolt and Push Fastener

   2 - Bracket

4. If required, remove the bolt and push fastener, then remove the bracket from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
