Intermediate Shaft: Notes

REMOVAL

CAUTION:

Anytime the Steering Column Control Module (SCCM) is mounted on the steering column the steering shaft must be kept from turning or else SCCM damage will occur. Some vehicles do not have an internal lock mechanisms, so the steering column shaft must be preventing from rotating through use of a suitable tool.

Secure the steering wheel to prevent it from turning.

Courtesy of CHRYSLER GROUP, LLC

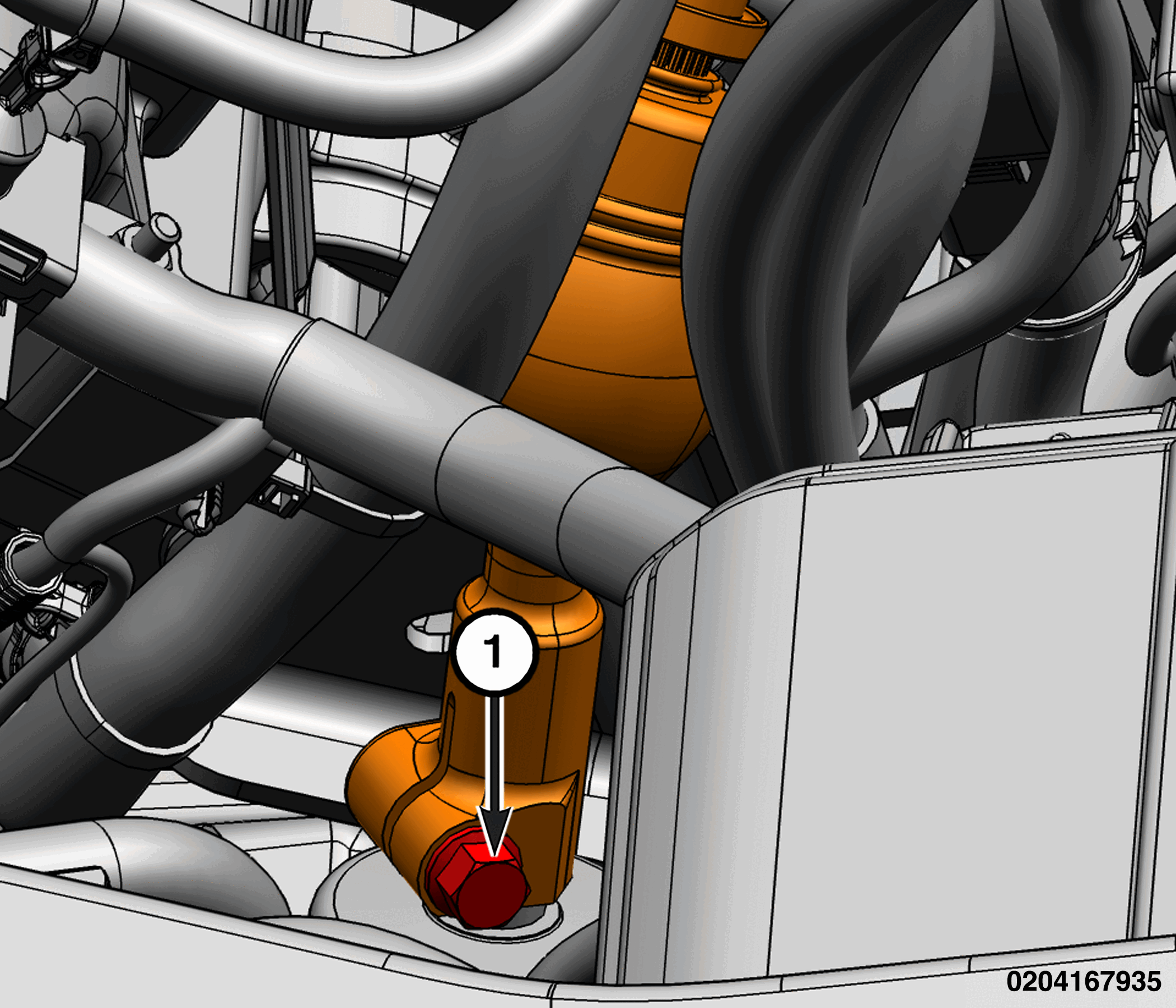

1 - Intermediate Shaft Lower Pinch Bolt
Remove and DISCARD the intermediate shaft lower pinch bolt.

Courtesy of CHRYSLER GROUP, LLC

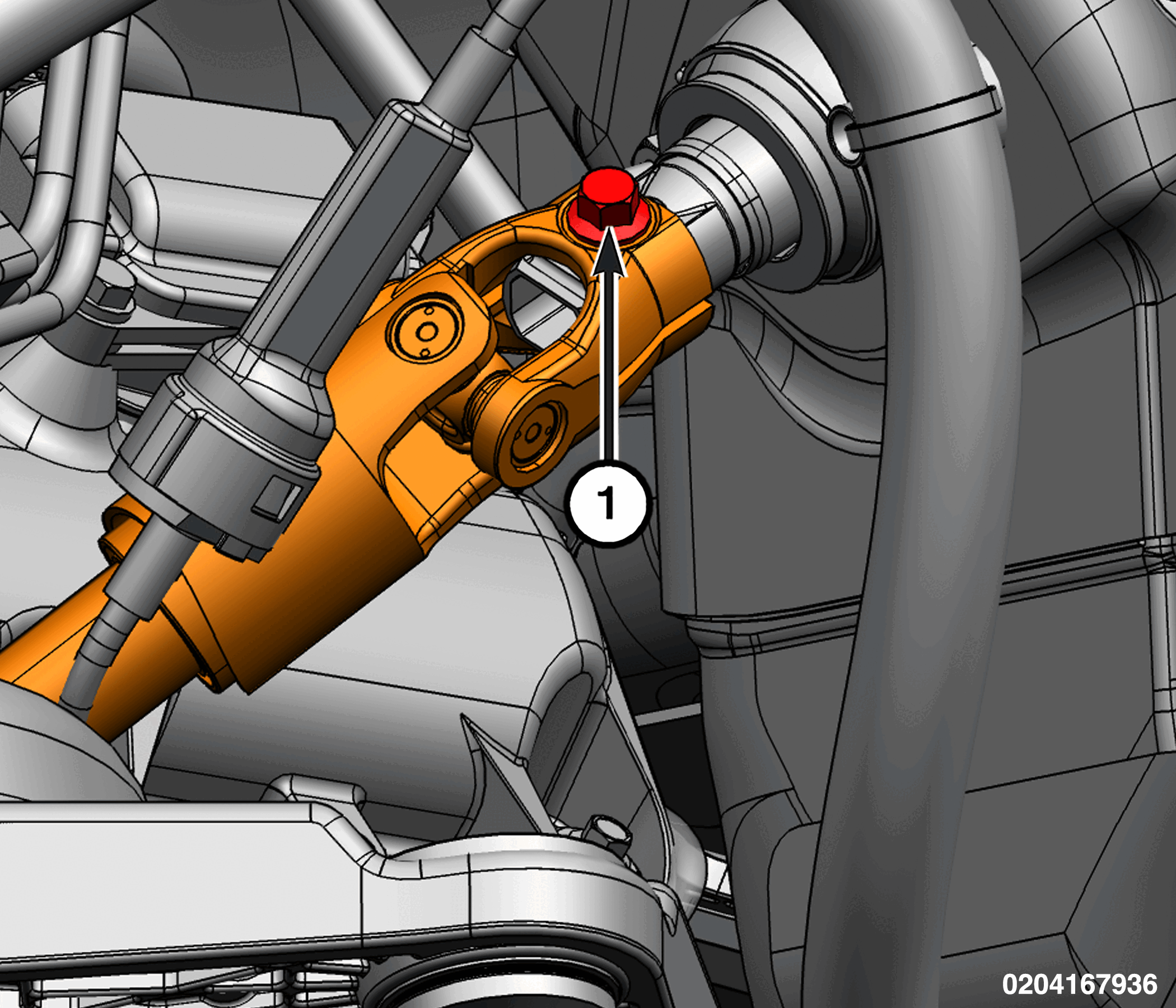

1 - Intermediate Shaft Upper Pinch Bolt
Remove and DISCARD the intermediate shaft upper pinch bolt.
Remove the intermediate shaft.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

Install a NEW intermediate shaft upper pinch bolt.
Install a NEW intermediate shaft lower pinch bolt.
