Torque Specifications - Steering Gear

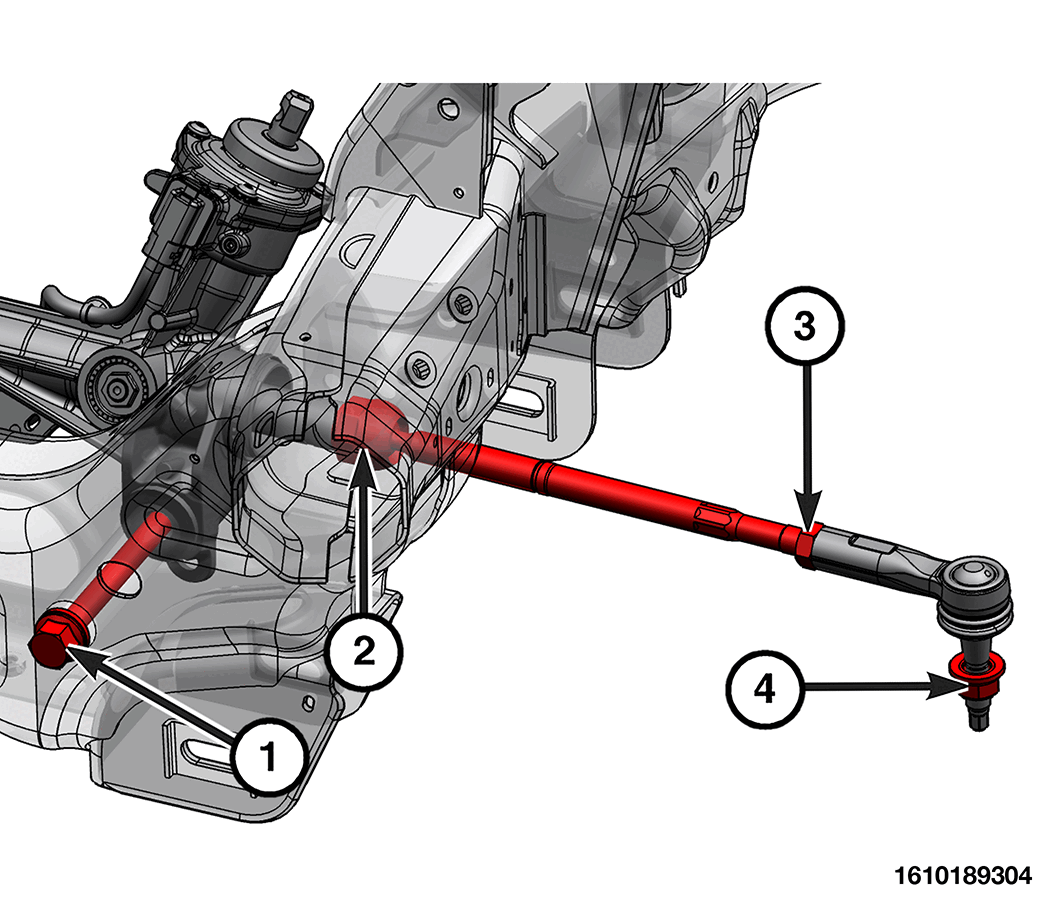

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Steering Gear Bolts | 160 + 135° N. m (118 + 135° Ft. Lbs.) | - |
| 2 | Inner Tie Rod | 116 N. m (86 In. Lbs.) | - |
| 3 | Tie Rod Jam Nut | 90 N. m (66 Ft. Lbs.) | - |
| 4 | Tie Rod End Nut | 55 + 180° N. m (41 + 180° Ft. Lbs.) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
