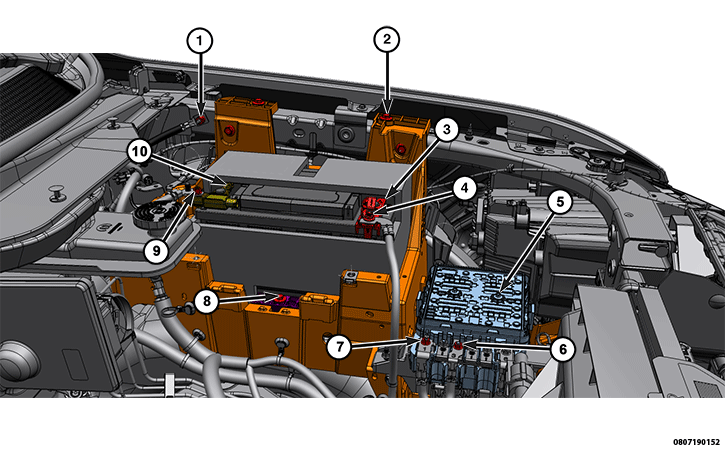

| 1 |
Battery Negative Lead to Fender |
20 N. m (16 Ft. Lbs.) |
- |
| 2 |
Battery Tray Bolts |
11 N. m (8 Ft. Lbs.) |
- |
| 3 |
Battery Positive to Positive Post |
7 N. m (71 In. Lbs.) |
- |
| 4 |
Battery Positive Cable |
7 N. m (71 In. Lbs.) |
- |
| 5 |
PDC to Wiring Connector |
4 N. m (35 In. Lbs.) |
- |
| 6 |
PDC to B+ |
12 N. m (9 Ft. Lbs.) |
- |
| 7 |
B+ Battery Positive at Power Distribution Center (PDC) |
8 N. m (71 In. Lbs.) |
- |
| 8 |
Battery Bracket Bolt - Battery Hold Down to Tray |
5 N. m (44 In. Lbs.) |
- |
| 9 |
Battery Negative Cable to the IBS |
11 N. m (8 Ft. Lbs.) |
- |
| 10 |
Intelligent Battery Sensor (IBS) Sensor to Negative Post |
5 N. m (44 In. Lbs.) |
- |
| - |
Auxiliary Battery Cable Nuts |
5 N. m (44 In. Lbs.) |
- |
| - |
Auxiliary Battery Double Ended Studs |
7 N. m (62 In. Lbs.) |
- |
| - |
Auxiliary Battery Hold Down Bolt |
5 N. m (44 In. Lbs.) |
- |
| - |
Battery Negative Cable to Engine Block |
30 N. m (22 Ft. Lbs.) |
- |
| - |
Dual Battery Switch Module |
9 N. m (80 In. Lbs.) |
|
| - |
PDC Tray To Cross Beam Nuts |
8 N. m (71 In. Lbs.) |
- |
| - |
Power Control Relay (PCR) |
9 N. m (80 In. Lbs.) |
- |
