Ride Height Switch Module

REMOVAL

1. Remove the Electronic Shift Module (ESM). Refer to MODULE, ELECTRONIC SHIFT (ESM), REMOVAL AND INSTALLATION .

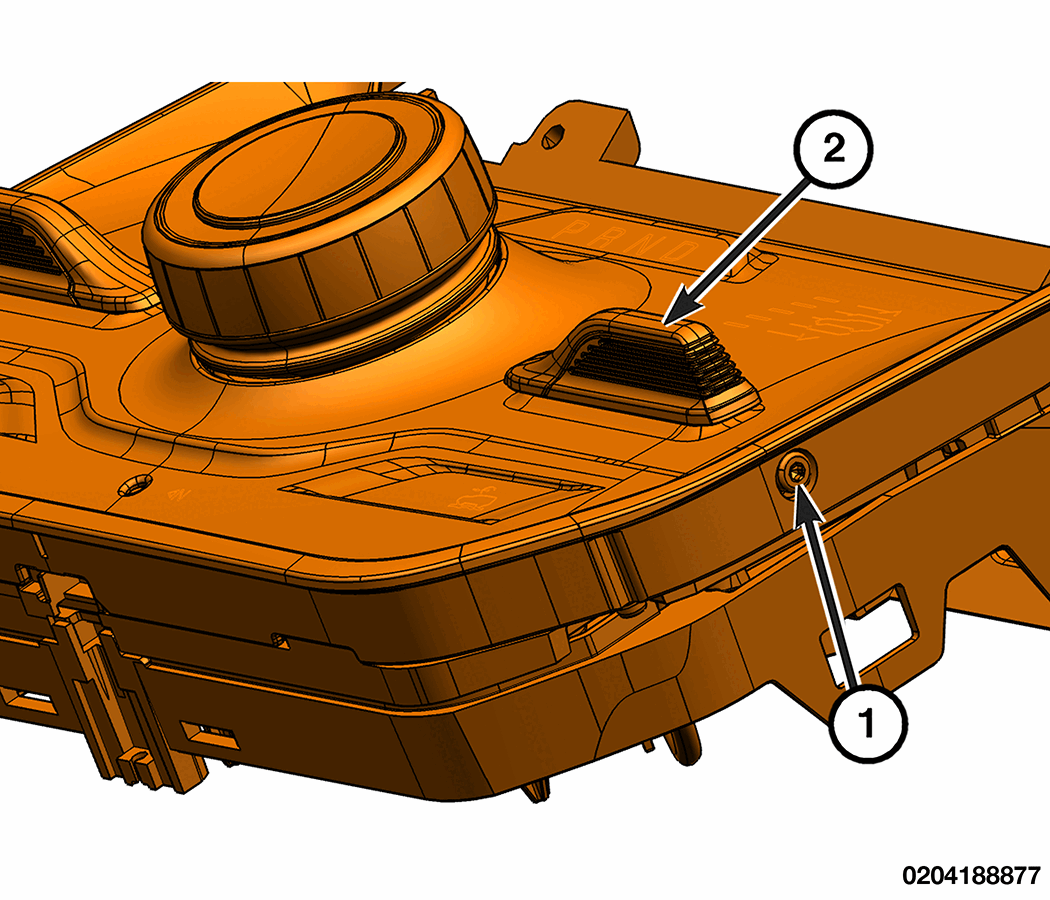

   Courtesy of CHRYSLER GROUP, LLC

   1 - Ride Height Switch Screw

   2 - Ride Height Switch Button

2. Remove the ride height switch screw and remove the ride height switch button.

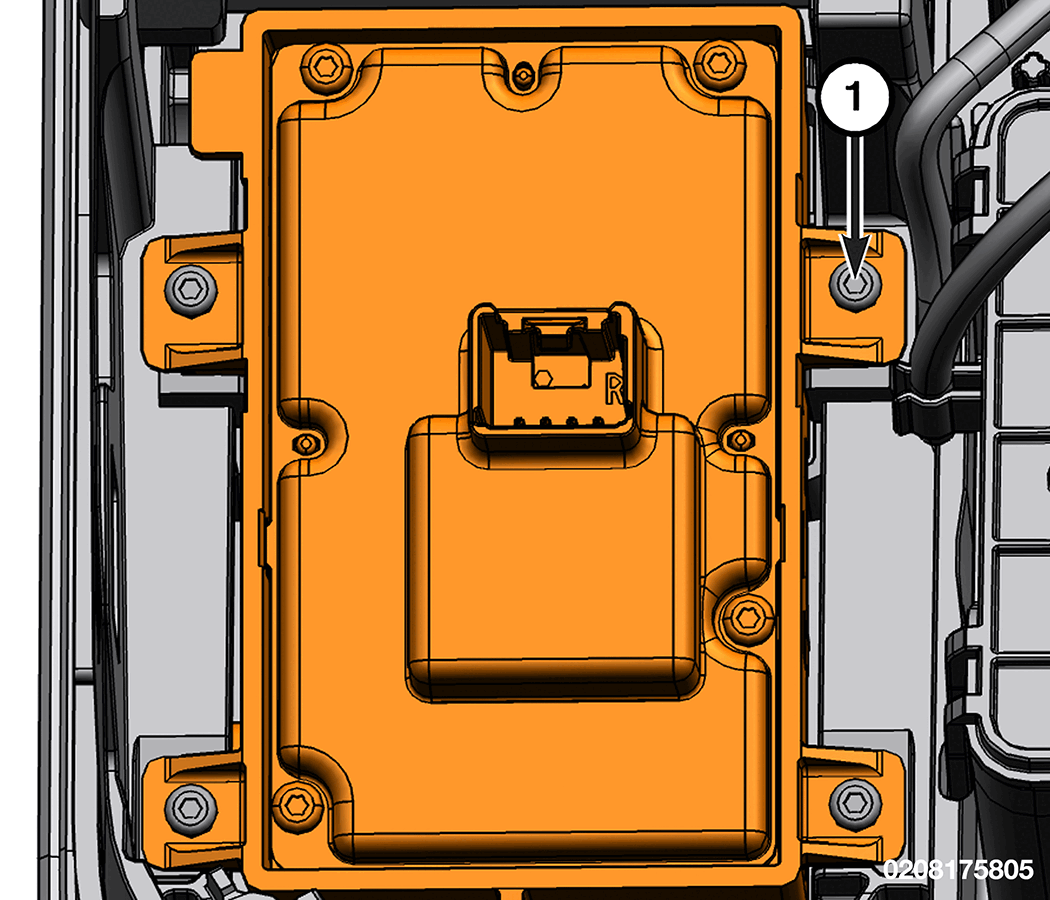

   Courtesy of CHRYSLER GROUP, LLC

   1 - Ride Height Switch Module (RHSM) Screws

3. Remove the Ride Height Switch Module (RHSM) screws.
4. Remove the RHSM.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
