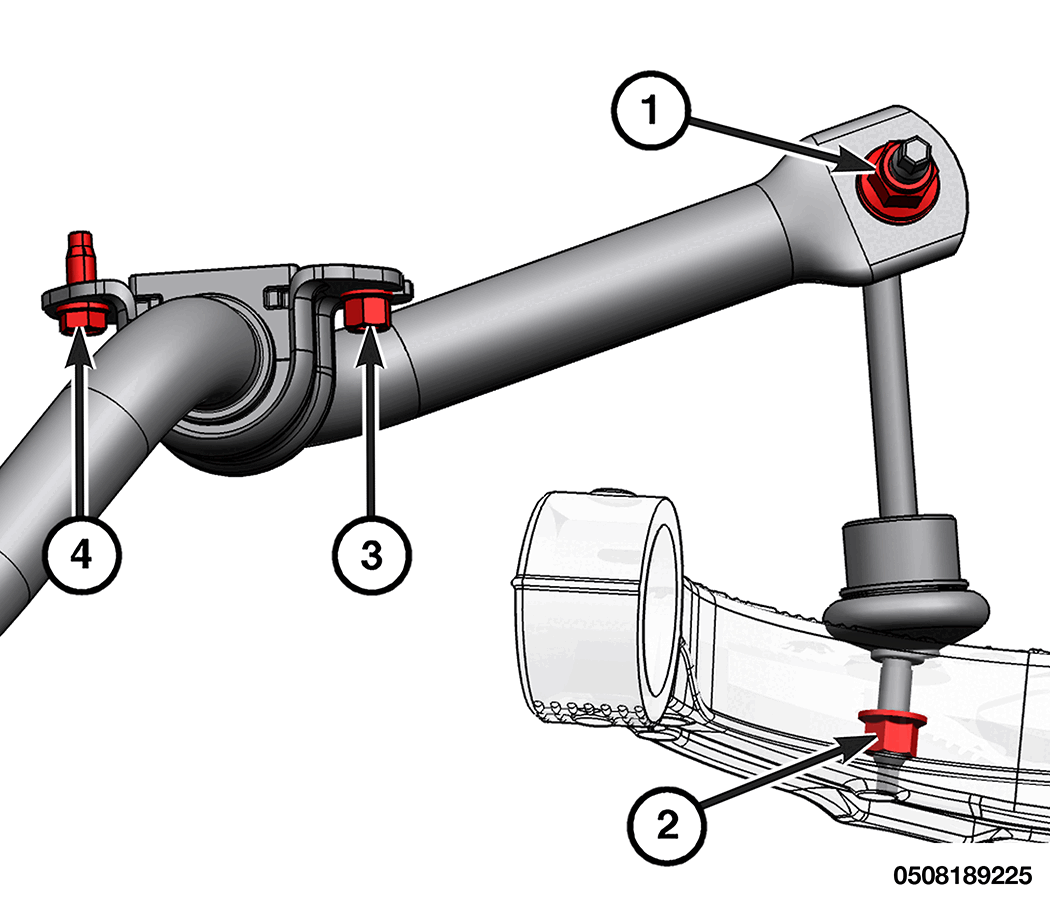

Torque Specifications - Front Stabilizer Bar

Courtesy of CHRYSLER GROUP, LLC

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Stabilizer Bar Link Upper Nut	175 N. m (129 Ft. Lbs.)	-
2	Stabilizer Bar Link Lower Nut	110 N. m (81 Ft. Lbs.)	-
3	Stabilizer Bar Bolts	48 N. m (35 Ft. Lbs.)	-
4	Stabilizer Bar Nuts	48 N. m (35 Ft. Lbs.)	-
