Rear Driveline Module (RDM): Notes

CAUTION:

Driveshaft installation is a two-person operation. Never allow driveshaft to hang from the center bearing, or while only connected to the transmission or rear axle flanges. A helper is required. If a driveshaft section is hung unsupported, damage may occur to the shaft, coupler, and center bearing from over-angulation. This may result in driveline vibrations or component failure.

REMOVAL

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the left rear halfshaft. Refer to REAR HALFSHAFT, REMOVAL AND INSTALLATION .
  3. Remove the driveshaft. Refer to REAR DRIVESHAFT, REMOVAL AND INSTALLATION .
  4. Remove the fuel tank heat shield.
  5. Place a support under the rear muffler.

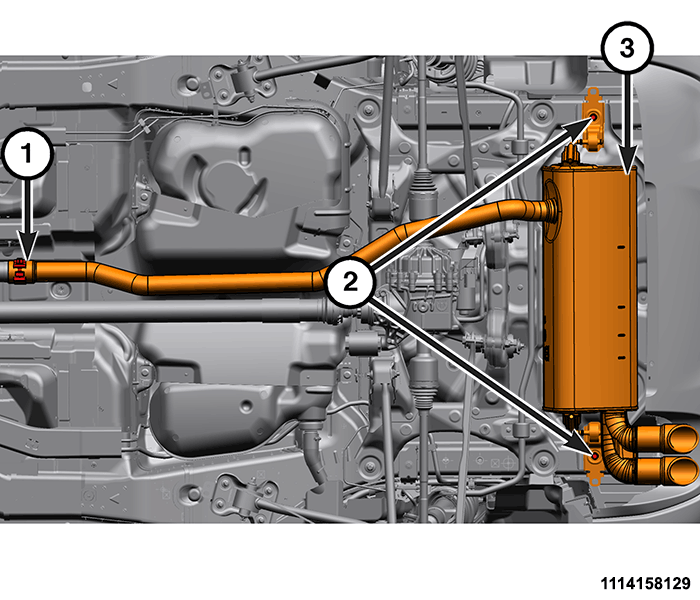

    GC0188537Courtesy of CHRYSLER GROUP, LLC
    1 - Exhaust Clamp
    2 - Exhaust Isolator Bolts
    3 - Rear Muffler
  6. Remove the exhaust isolator bolts and lower the exhaust to access the Rear Driveline Module (RDM) bolts.
  7. Remove the rear stabilizer bar bracket bolts.

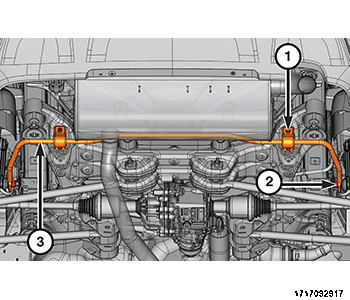

    GC0178948Courtesy of CHRYSLER GROUP, LLC
    1 - rear Stabilizer Bar Bracket Bolts
    2 - Rear Stabilizer Bar Link Nut
    3 - Rear Stabilizer bar
  8. Disconnect the RDM actuator wire harness connector.
    GC0165669Courtesy of CHRYSLER GROUP, LLC
    1 - RDM Actuator wire Harness Connector
  9. Position a suitable jack to support the RDM and remove the front RDM front isolator bolt.
    GC0164593Courtesy of CHRYSLER GROUP, LLC
    1 - RDM Front Isolator Bolt
  10. Disengage the right axle inner joint from the RDM.
  11. Remove the RDM rear isolator bolts and lower the RDM.
    CAUTION:

    Boot sealing is vital to retain special lubricants and to prevent foreign contaminants from entering the CV joint. Mishandling, such as allowing the assemblies to dangle unsupported, or pulling or pushing the ends can cut boots or damage CV joints. During removal and installation procedures, always support both ends of the halfshaft to prevent damage.

    GC0164019Courtesy of CHRYSLER GROUP, LLC
    1a - RDM Rear Isolator Bolts
    1b - RDM
  12. Lower the RDM while disengaging the left halfshaft from the RDM.

INSTALLATION

CAUTION:

Never grasp halfshaft assembly by the boots. This may cause the boot to pucker or crease and reduce the service life of the boot.

Avoid over angulating the C/V joints when handling the halfshaft.

Halfshafts exposed to battery acid, transmission fluid, brake fluid, differential fluid or gasoline may cause the boots to deteriorate. Failure to follow these instructions will result in damage.

NOTE: Use care when installing the halfshaft to the axle assembly. The halfshaft installation angle should be minimized to avoid damage to the seal upon installation.
  1. Install a NEW  O-ring on the RDM stub shafts.
  2. Install a NEW  circlip on the stub shaft.

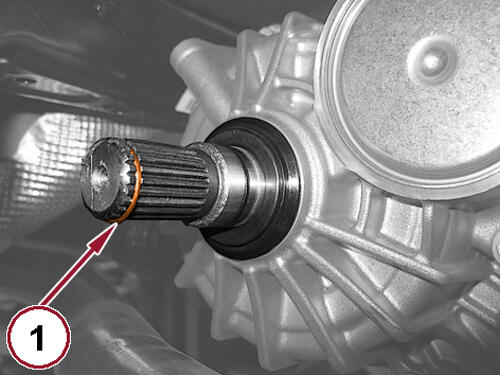

    GC0164535Courtesy of CHRYSLER GROUP, LLC
    1 - Circlip
  3. Raise the RDM into position while engaging the right halfshaft inner joint to the RDM, and tighten the RDM rear isolator bolts to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .

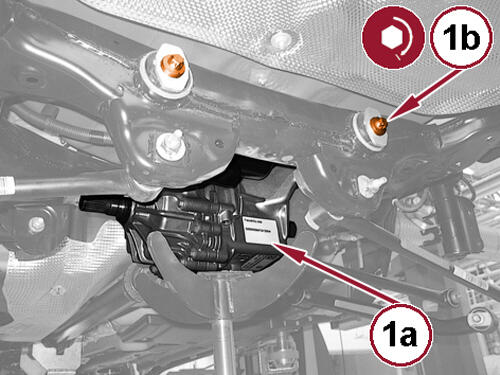

    GC0212228Courtesy of CHRYSLER GROUP, LLC
    1a - RDM
    1b - RDM Rear Isolator Bolts
  4. Install the RDM front isolator bolt and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .

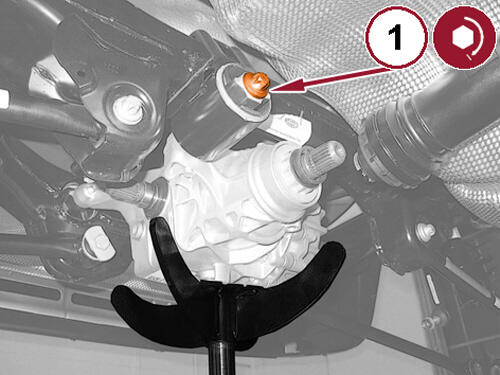

    GC0212227Courtesy of CHRYSLER GROUP, LLC
    1 - RDM Front isolator Bolt
  5. Make sure the right halfshaft inner joint fully engages the circlip on the stub shaft.
  6. Install the driveshaft. Refer to REAR DRIVESHAFT, REMOVAL AND INSTALLATION .
  7. Install the fuel tank heat shield.
  8. Connect the RDU actuator wire harness connector.
    NOTE: If replacing the RDM, it is necessary to record the last two characters of the RDM code in the area indicated of the new RDM for performing the self learning procedure.
  9. When replacing the RDM connect the diagnostic scan tool, enter Miscellaneous Functions of the DriveTrain Control Module (DTCM) and run the self-learning procedure for the RDM.
    GC0166191Courtesy of CHRYSLER GROUP, LLC
    a - RDM Code
  10. Check and correct the fluid level in the RDM. Refer to REAR DRIVELINE MODULE (RDM) FLUID LEVEL CHECK .
  11. Install the rear stabilizer bar. Refer to STABILIZER BAR, REAR SUSPENSION, REMOVAL AND INSTALLATION .
  12. Install the left rear halfshafts. Refer to REAR HALFSHAFT, REMOVAL AND INSTALLATION .
  13. raise the muffler and install the exhaust isolator bolts, tighten the bolts to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
