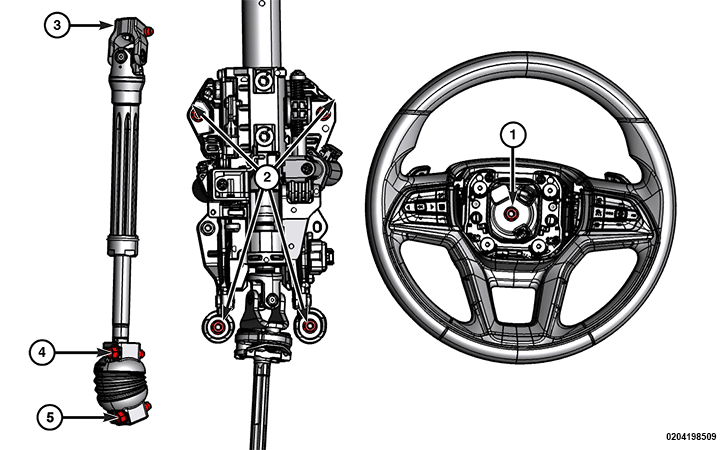

| 1 |
Steering Wheel Nut |
39 N. m (29 Ft. Lbs.) |
Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 2 |
Steering Column Nuts |
22 N. m (16 Ft. Lbs.) |
- |
| 3 |
Intermediate Shaft Pinch Bolt |
45 N. m (33 Ft. Lbs.) |
Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 4 |
Upper Steering Column Shaft Coupling Pinch Bolt |
45 N. m (33 Ft. Lbs.) |
Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 5 |
Lower Steering Column Shaft Coupling Pinch Bolt |
45 N. m (33 Ft. Lbs.) |
Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
