Idle Air Control (IAC) Valve

Turn ignition off. Disconnect IAC connector. Check resistance between terminals. See Fig 1 . If resistance is not 10.7-12.3 ohms at 68°F (20°C), replace valve.

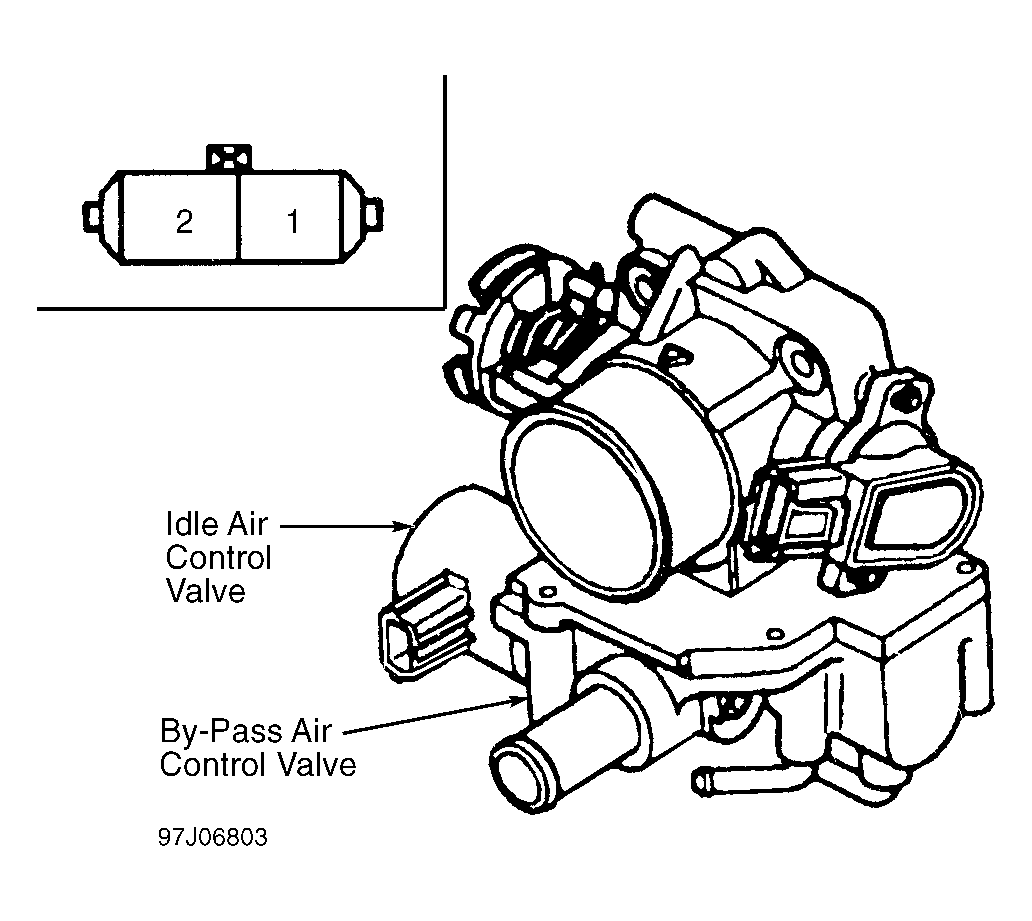

Fig 1: Identifying IAC Terminals

Courtesy of KIA MOTORS AMERICA, INC.
