Control Assembly: Service and Repair

1. Disconnect the negative battery cable.

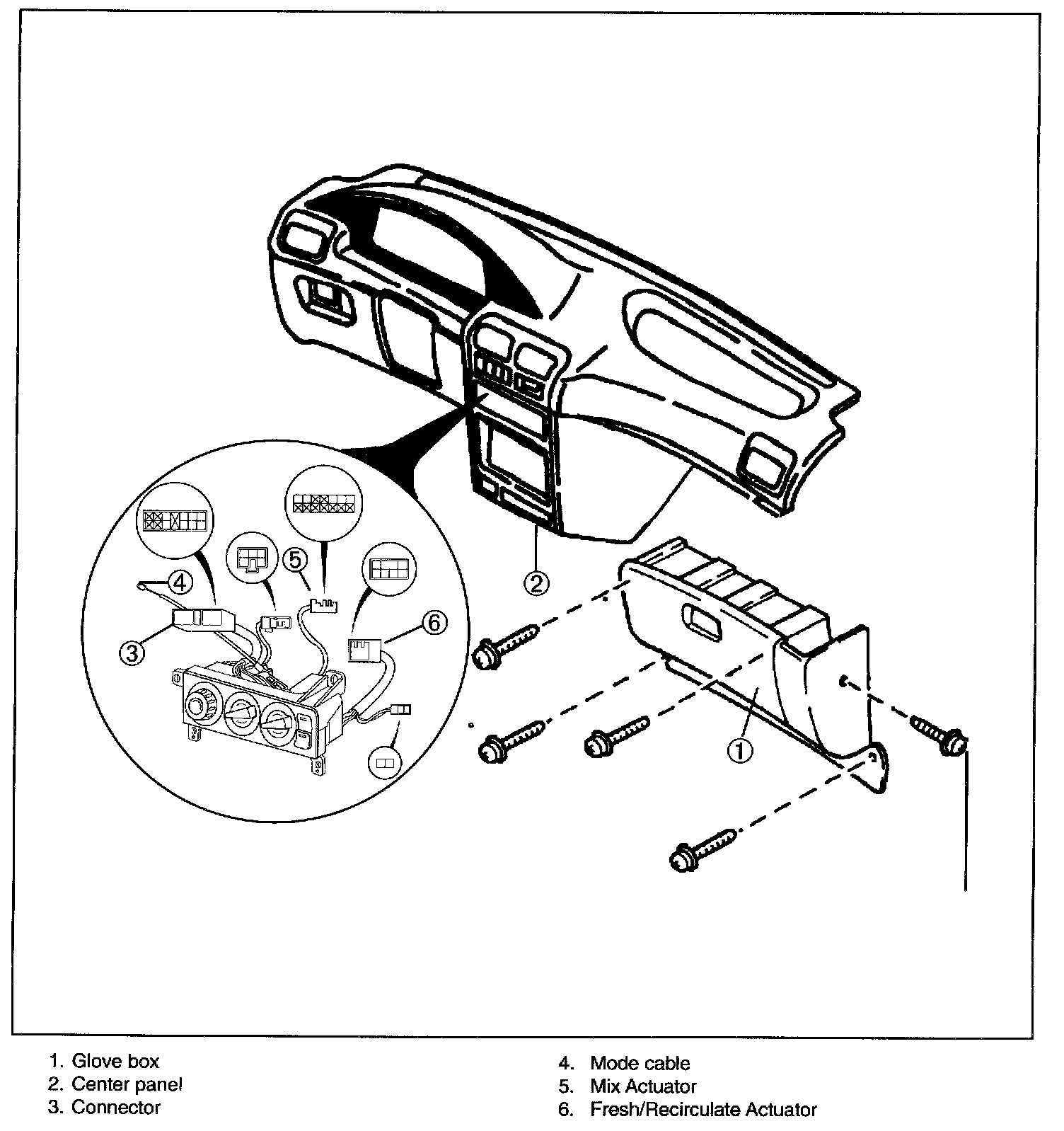

2. Remove in the order shown in the figure.
3. Install in the reverse order of removal.

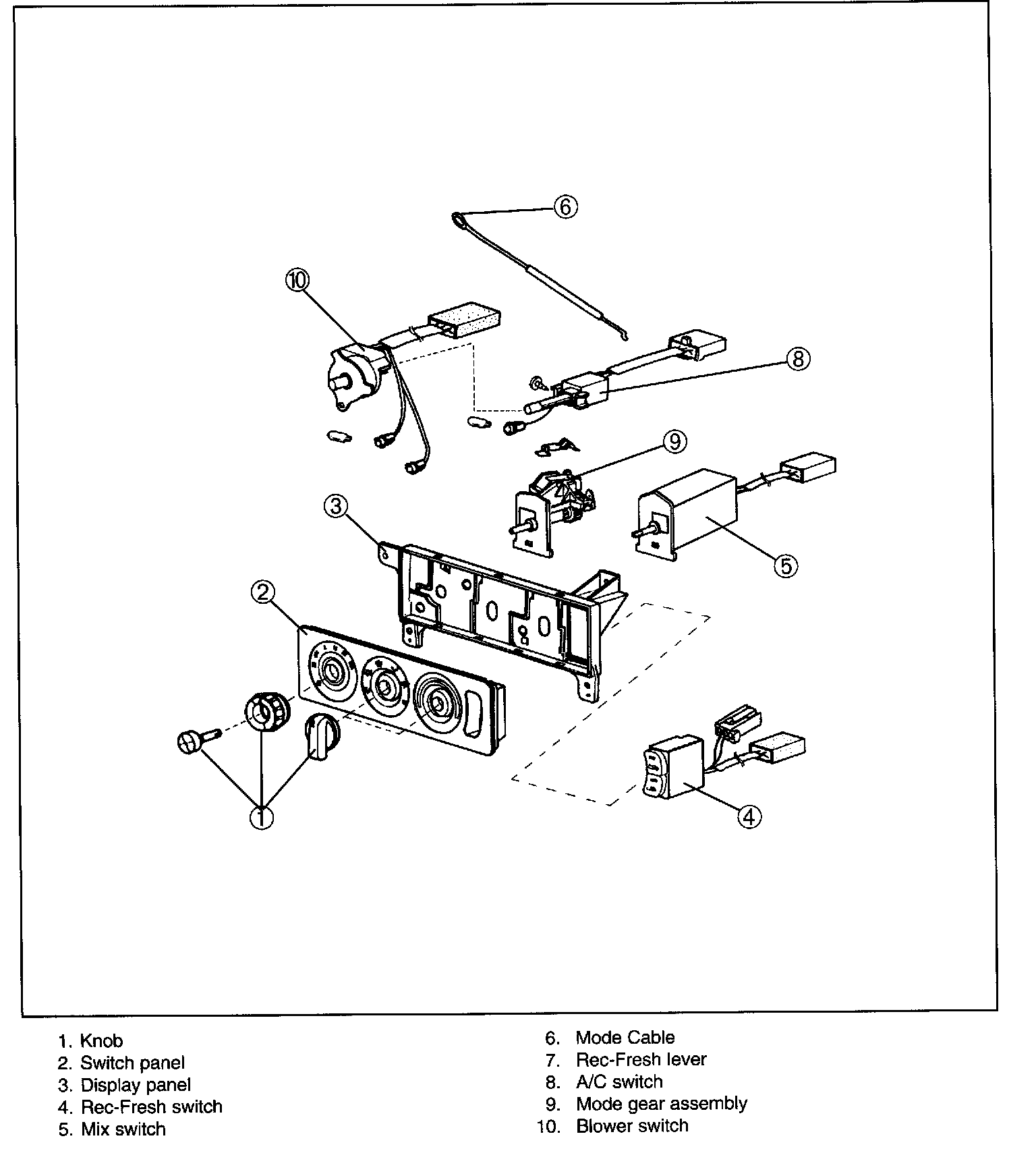

Disassemble and assemble the heater control unit as shown in the figure.
