| A/C Compressor Bracket Bolt |
| 12-mm |
14-18 (19-25) |
| 14-mm |
28-38 (38-52) |
| A/C Compressor Mounting Bolt |
29-38 (39-52) |
| Automatic Transaxle Linkage Nut/Washer |
24-34 (32-46) |
| Camshaft Bearing Cap Bolts |
13-20 (18-27) |
| Connecting Rod Nut |
35-37 (47-50) |
| Crankshaft Pulley Bolt |
9-13 (12-17) |
| Crankshaft Sprocket Bolt |
116-123 (157-167) |
| Cylinder Head Bolt |
| Step 1 |
36 (49) |
| Step 2 |
Loosen Bolts In Sequence |
| Step 3 |
29 (39) |
| Step 4 |
|
| Step 5 |
Turn Additional 90-Degrees |
| Step 6 |
Turn Additional 90-Degrees |
| Dynamic Damper Bolt |
55-76 (74-103) |
| Engine Ground Strap Bolts |
| At Engine |
28-38 (38-52) |
| At Frame |
|
| Engine Hanger |
27-38 (37-52) |
| Engine Mount Bolts/Nuts |
| No. 1 (3 Bolts) |
49-69 (67-93) |
| No. 2 (2 Nuts) |
28-38 (38-52) |
| No. 3 (1 Bolt) |
63-86 (85-117) |
| No. 4 |
| Bolt (1) |
47-66 (64-89) |
| Nut (3) |
50-69 (68-93) |
| Exhaust Manifold Heat Shield Bolt |
14-22 (19-30) |
| Exhaust Manifold-To-Head Bolt/Nut |
| Manifold-To-Head (9) |
28-34 (38-46) |
| Manifold-To-TWC Warmup Converter (5) |
16-21 (22-28) |
| Extension Bar (M/T) |
24-35 (32-47) |
| Front Exhaust Pipe |
| Pipe-To-TWC Warmup Converter Nuts |
30-41 (40-55) |
| Converter Hanger Nuts |
51-69 (69-94) |
| Clamp Nuts |
15-20 (20-27) |
| Intake Manifold Support Bracket |
27-38 (37-52) |
| Joint Shaft Support Bracket Bolts |
32-46 (43-62) |

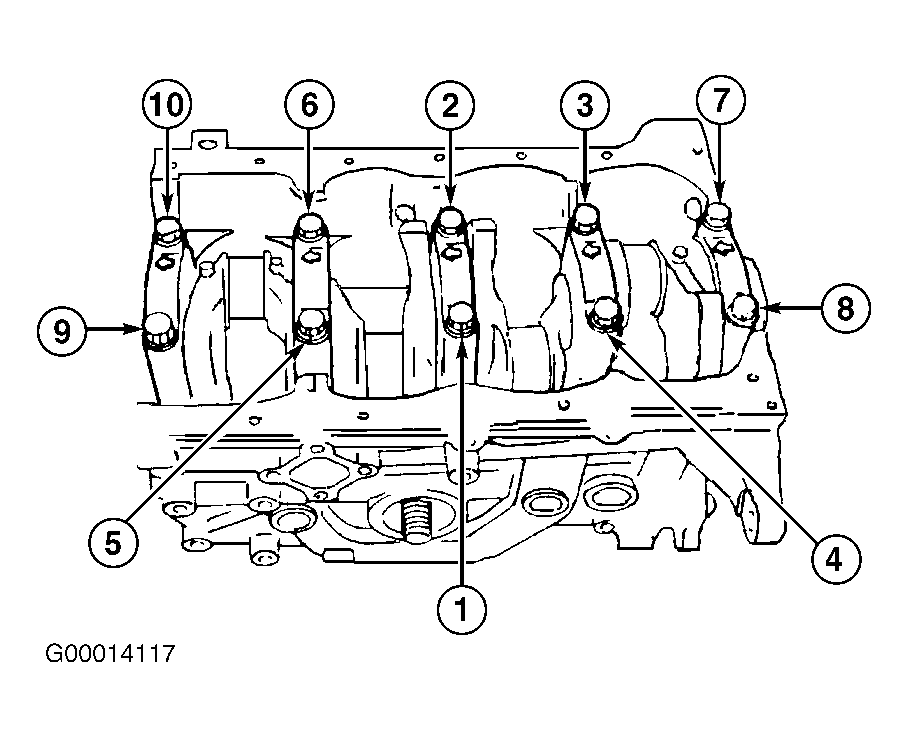

| Main Bearing Cap Bolt |
| Step 1 |
29 (39) |
| Step 2 |
|
| Step 3 |
15 (20) |
| Step 4 |
|
| Step 5 |
Turn Additional 90-Degrees |
| Step 6 |
Turn Additional 60-Degrees |
| Oil Pump Bolt |
14-19 (19-26) |
| Pinch Bolts |
32-38 (43-52) |
| Power Steering Pump Mounting Bolt |
28-38 (38-52) |
| Rear Seal Cover Bolts |
| Short Bolts (6) |
|
| Long Bolts (2) |
30-41 (40-55) |
| Stabilizer Control Link Bolts |
32-45 (43-61) |
| Starter Bolt |
27-38 (37-52) |
| Tensioner Pulley Lock Bolt |
28-38 (38-52) |
| Thermostat Housing |
14-19 (19-26) |
| Timing Belt Guide Plate Bolt |
9-13 (12-17) |
| Water Pump Bolt |
14-19 (19-26) |
| Water Pump Pulley Bolt |
9-13 (12-17) |
| INCH Lbs. (N.m) |
| Center Cover Bolt |
44-80 (5-9) |
| Oil Pan Bolts |
| Except Bolt "E" |
70-97 (8-11) |
| "E" |
|
| Oil Pressure Switch |
106-160 (12-18) |
| Oil Strainer Bolt |
70-106 (8-12) |
| Timing Belt Cover Bolt |
70-97 (8-11) |
