Replacing Sensor Rotor

  1. Remove the rear brake drum from the vehicle.
  2. Remove the sensor rotor by using the SST (0K670 990 AA0)  .

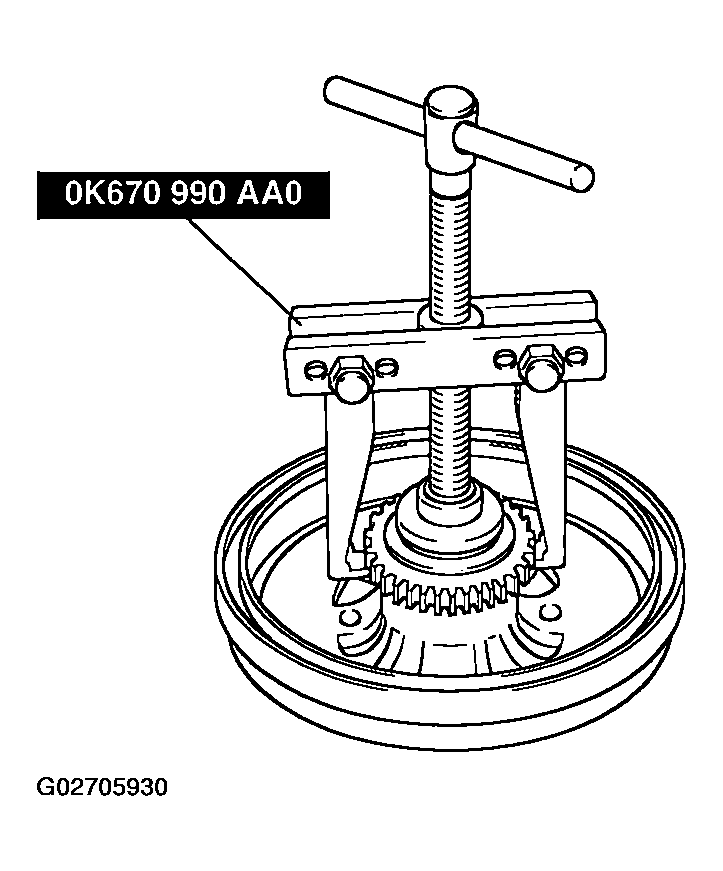

    Fig 1: Removing Rear Sensor Rotor
    G02705930Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the sensor rotor by using suitable tool.
    Fig 2: Installing Rear Sensor Rotor
    G02705931Courtesy of KIA MOTORS AMERICA, INC.
