Electronic Brake Control Module: Testing and Inspection

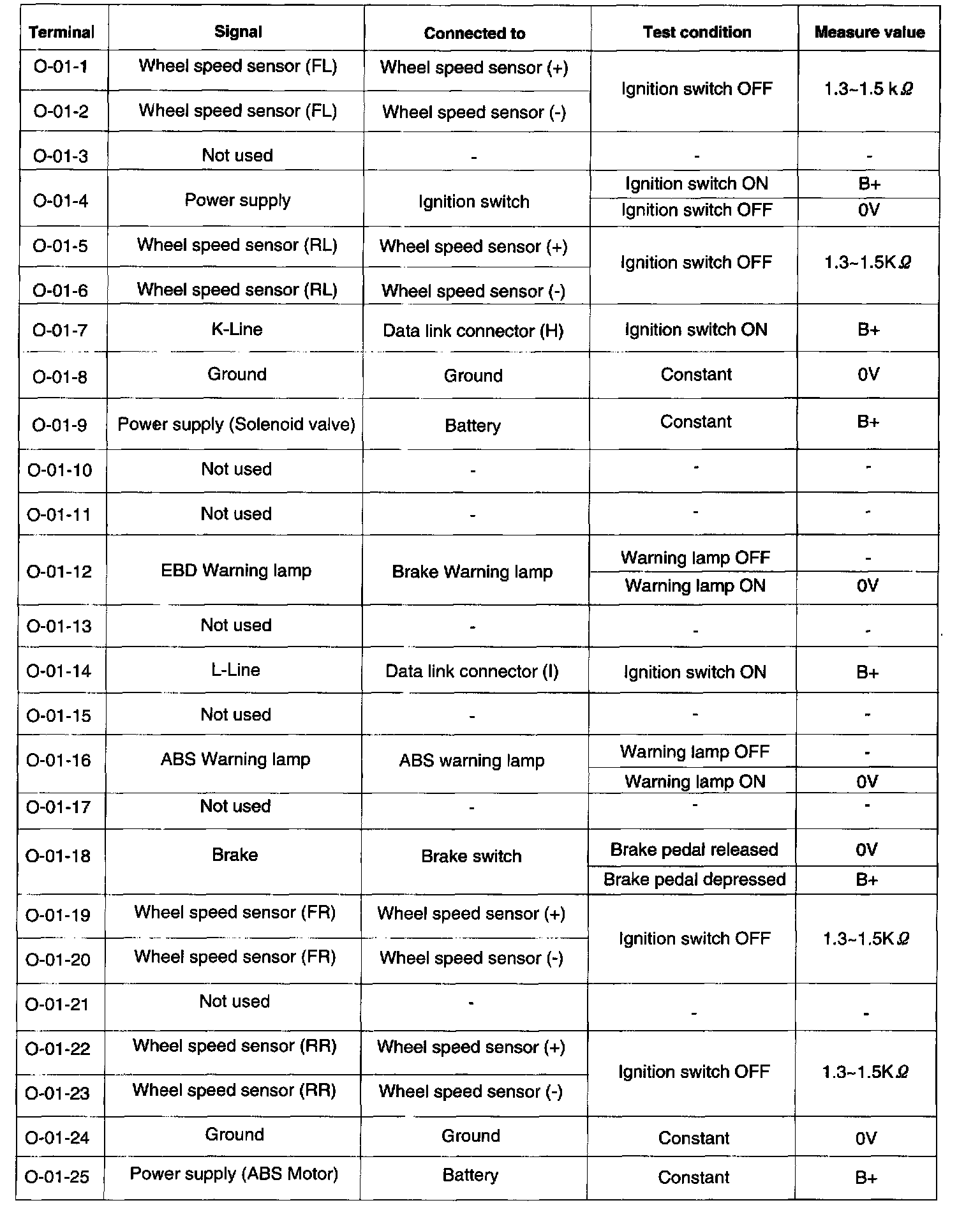

TERMINAL VOLTAGE TABLE





Part 1 of 2





Part 2 of 2
