Cylinder Block Specifications
CYLINDER BLOCK
| Application | In. (mm) | |||||
|---|---|---|---|---|---|---|
| Cylinder Bore | ||||||
| Standard Diameter | (1) | |||||
| Maximum Taper & Out-Of-Round | (1) | |||||
| Deck Height | ||||||
| Standard | (1) | |||||
| Minimum | (1) | |||||
| Maximum Deck Warpage | (1) | |||||

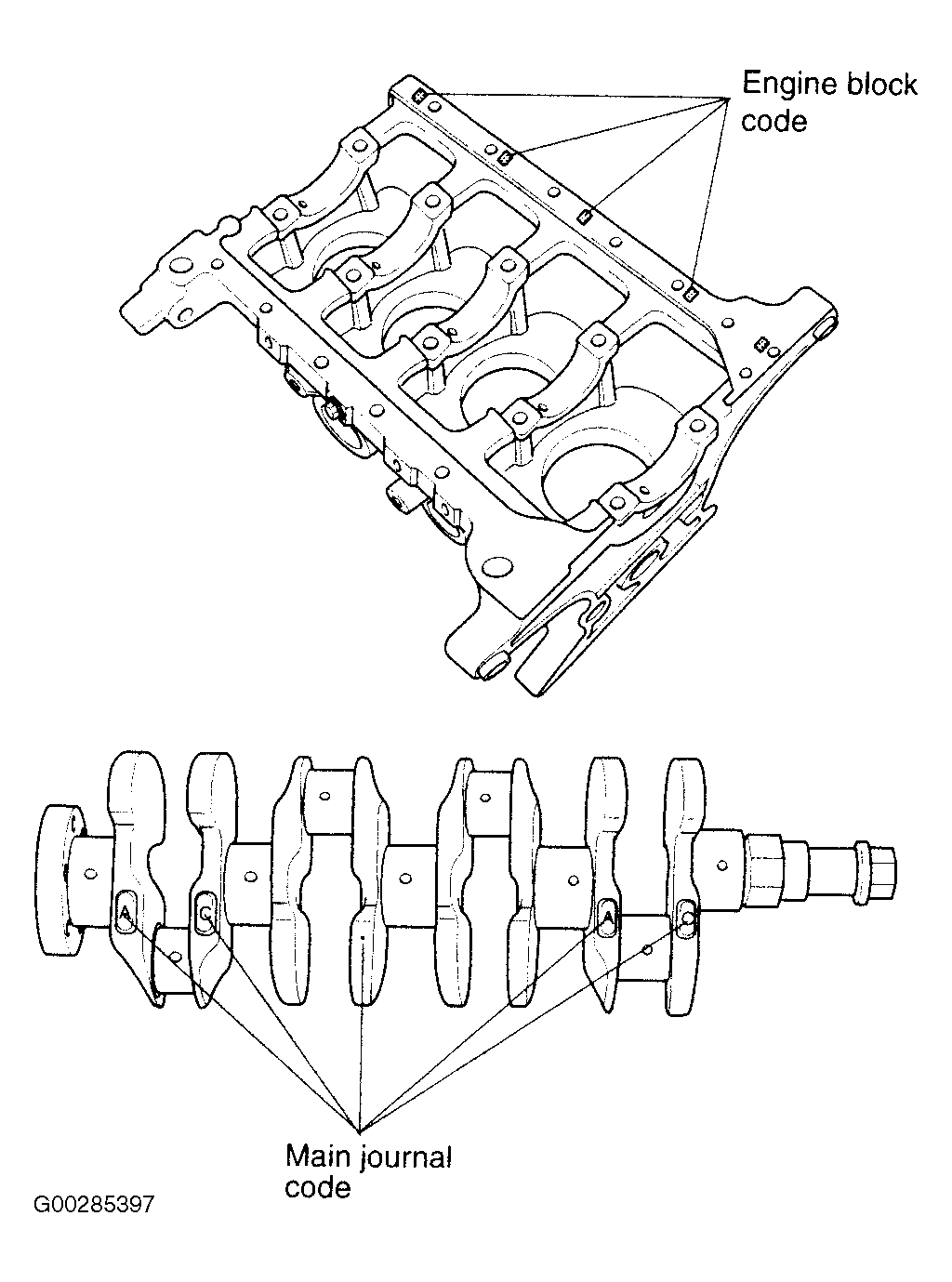

| Main Bearing Housing Bore (2) | ||||||
| Code A | 2.1259-2.1262 (54.000-54.006) | |||||
| Code "." | 2.1262-2.1265 (54.006-54.012) | |||||
| Code B | 2.1265-2.1267 (54.012-54.018) | |||||
|
||||||
