Wheel Alignment Specifications

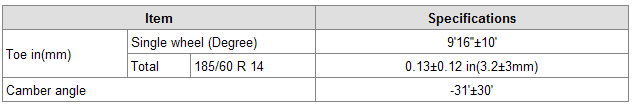

Fig 1: Wheel Alignment Specifications - Optima & Margentis

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Wheel Alignment Specifications - Rio

Courtesy of KIA MOTORS AMERICA, INC.

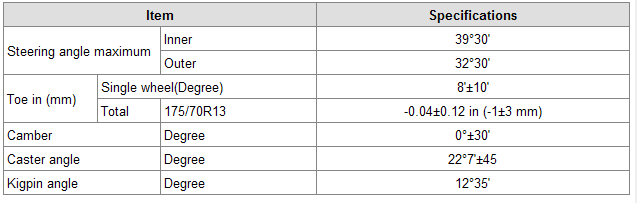

Fig 3: Wheel Alignment Specifications - Sephia (Front)

Courtesy of KIA MOTORS AMERICA, INC.

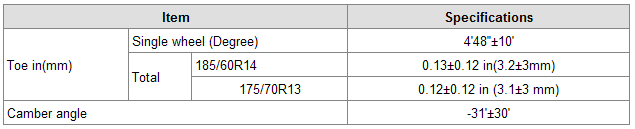

Fig 4: Wheel Alignment Specifications - Sephia (Rear)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Wheel Alignment Specifications - Spectra (Front)

Courtesy of KIA MOTORS AMERICA, INC.

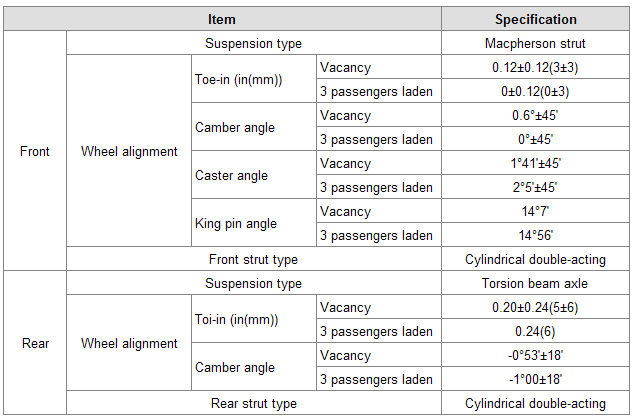

Fig 6: Wheel Alignment Specifications - Spectra (Rear)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Wheel Alignment Specifications - Sportage

Courtesy of KIA MOTORS AMERICA, INC.
