Transaxle case assembly

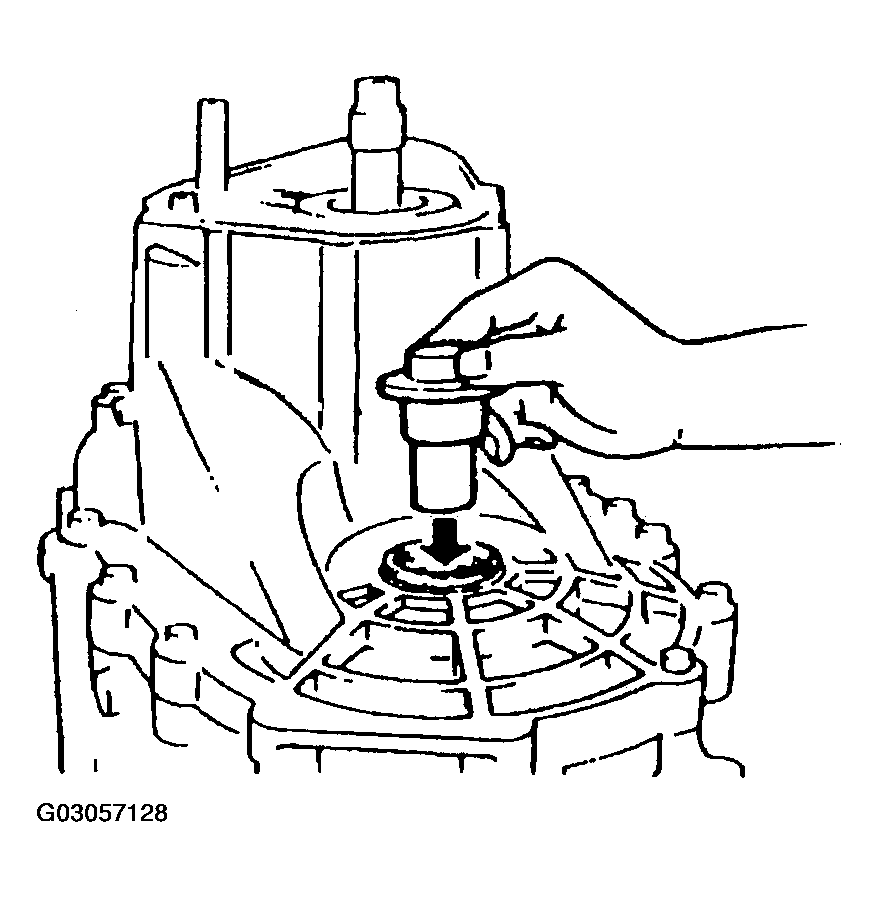

- Apply thin coat of sealant to contact surfaces of clutch housing and transaxle case, and tighten transaxle case installation bolts to specified torque. Install differential side gear holder.
Tightening torque: 28 ~ 38 lb. ft. (38 ~ 51 N.m, 3.8 ~ 5.3 kg-m)
