Differential Assembly: Disassembly

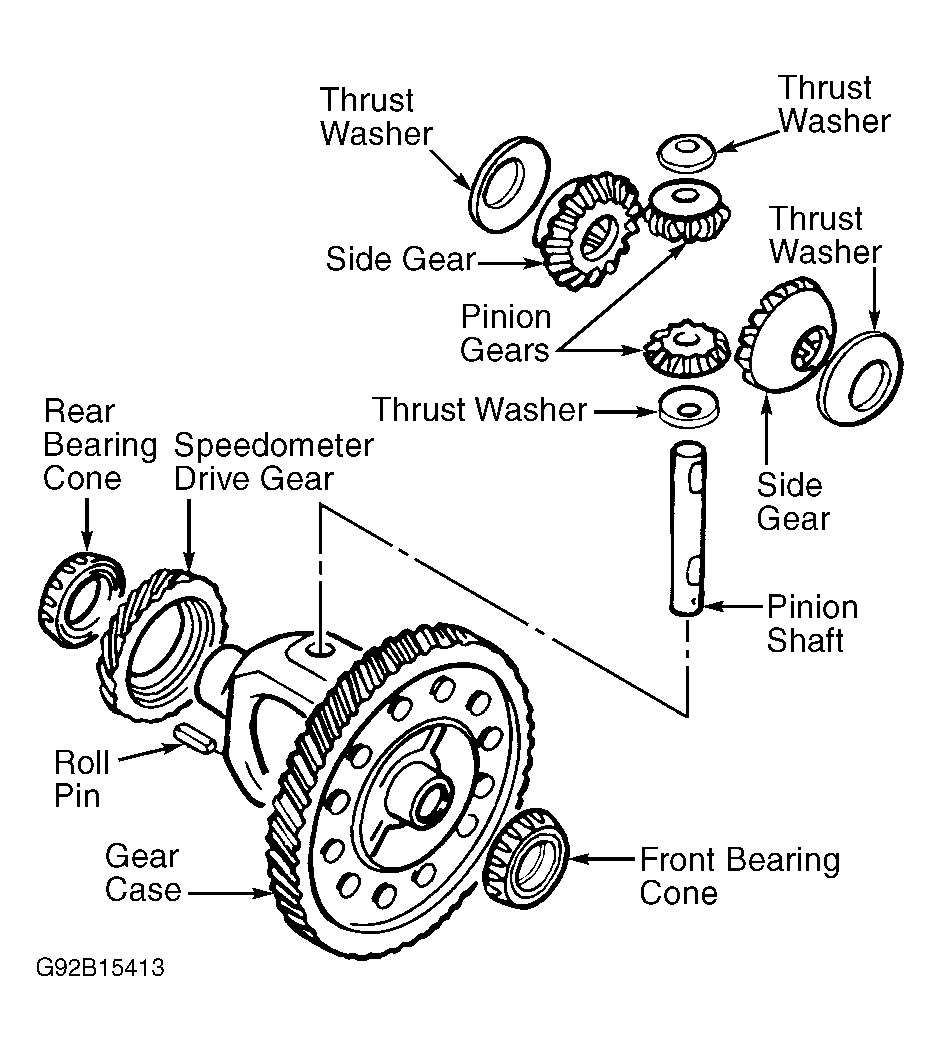

Using pin punch and hammer, drive out roll pin and remove pinion shaft. See Figure . Remove pinion gears, side gears and thrust washers from differential case. Using a bearing splitter and appropriate puller, remove differential case side bearings and speedometer drive gear.
