Vehicle Speed Sensor

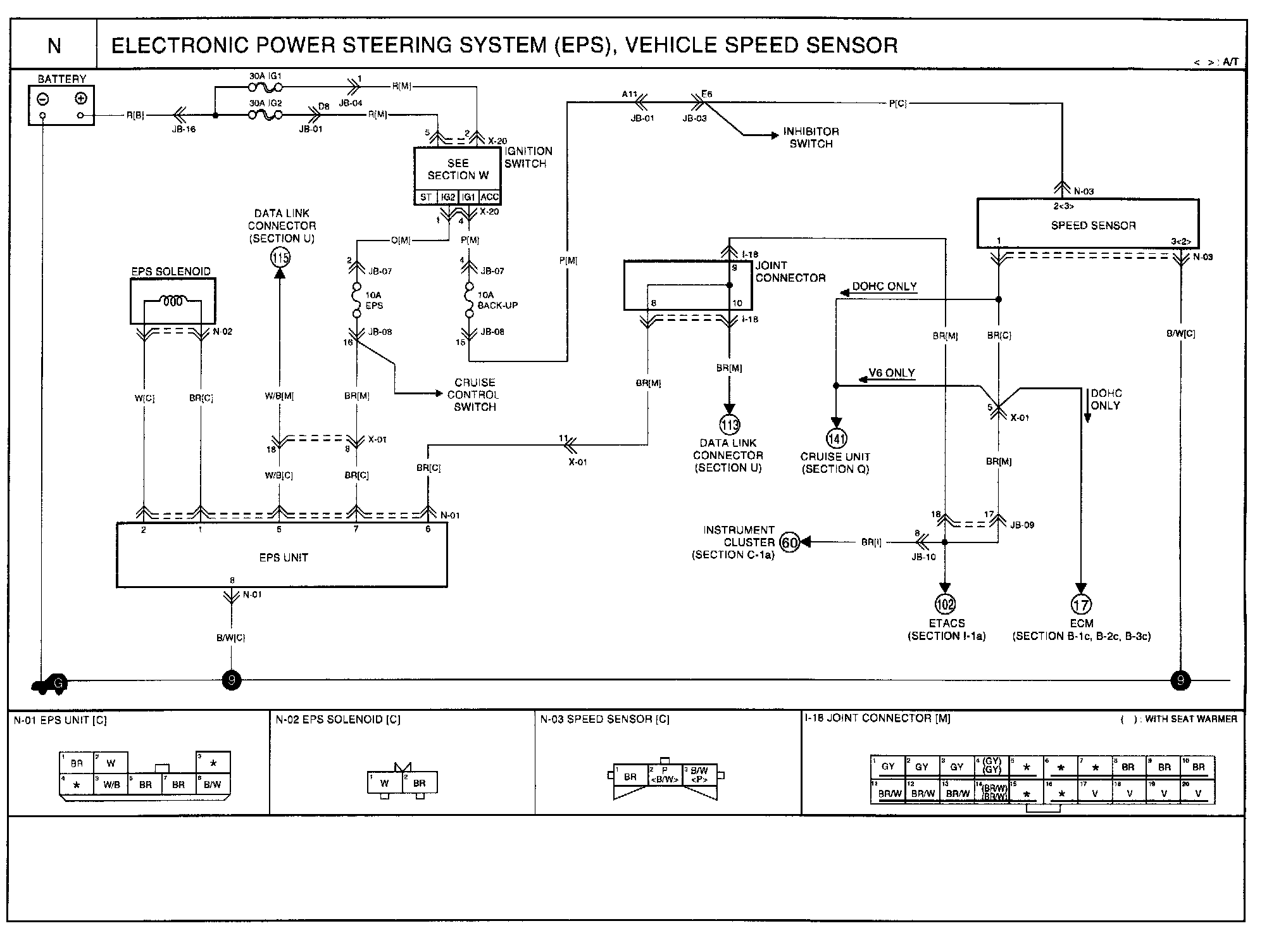

N - Electronic Power Steering System (EPS), Vehicle Speed Sensor Circuit:

NOTE: Other diagrams referred to by section number but not shown here can be found at Diagrams by Diagram Section Number. Electrical Diagrams
