Connector Locations

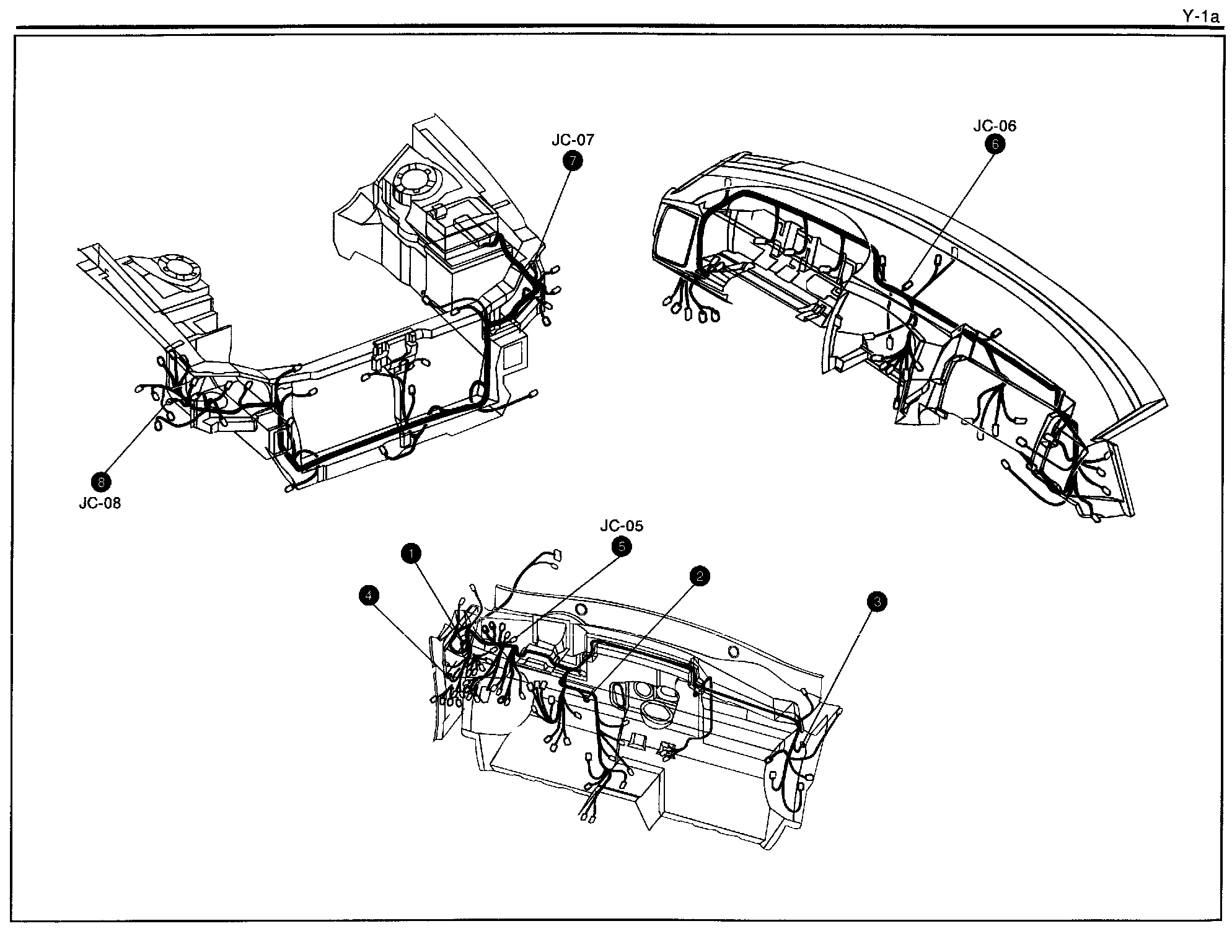

Y-1a - Ground Point Harness/Connector Symbols:

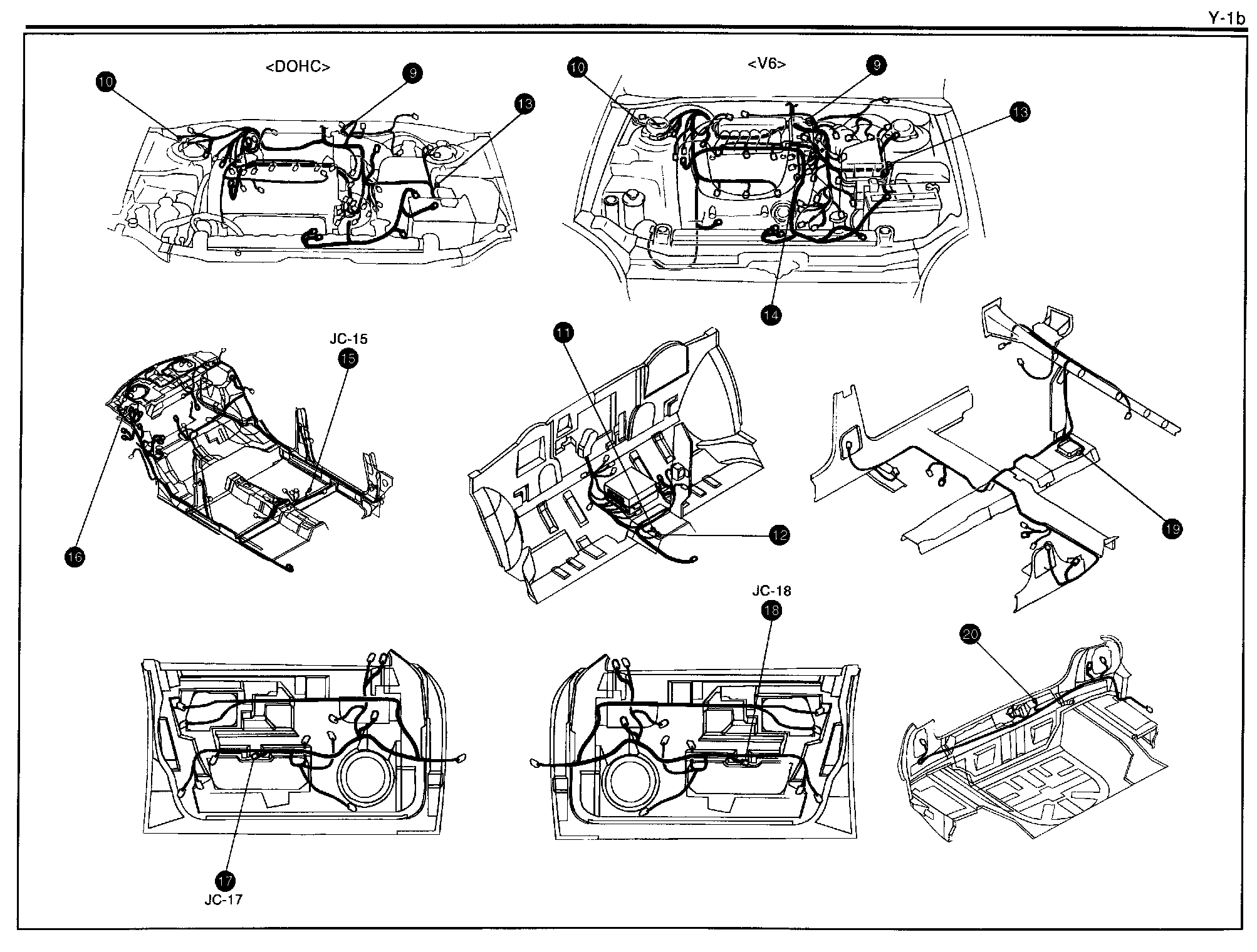

Y-1b - Ground Point Harness/Connector Symbols:
