Diode Test

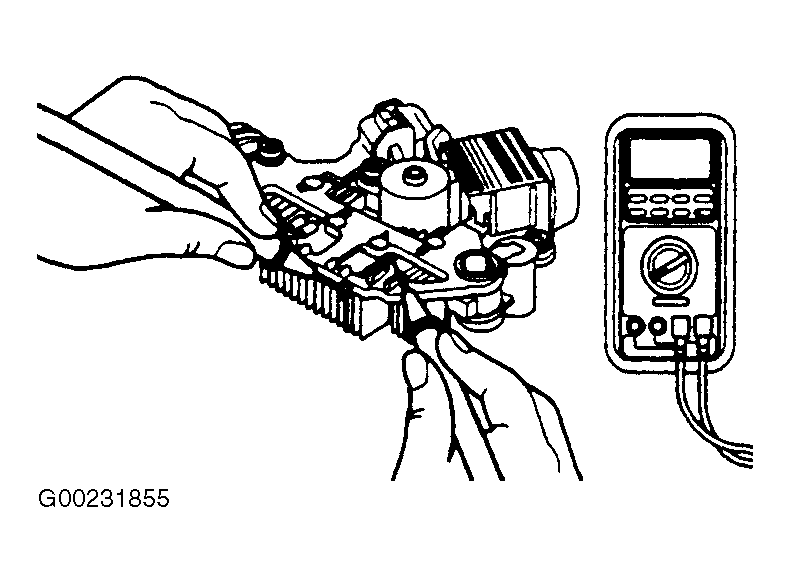

Check the 3 diodes for continuity by connecting an ohmmeter to both ends of each diode. See Fig 1. Each diode should have continuity in one direction only. If continuity is not as specified, replace complete assembly.
Check the 3 diodes for continuity by connecting an ohmmeter to both ends of each diode. See Fig 1. Each diode should have continuity in one direction only. If continuity is not as specified, replace complete assembly.
