Controller Area Network (Can) Adapter For Hi-Scan Pro (SST005)

Publication date: 2005-06-01
Reference number: SST005

CONTROLLER AREA NETWORK (CAN) ADAPTER FOR HI-SCAN PRO

CONTROLLER AREA NETWORK (CAN) ADAPTER FOR HI-SCAN PRO

TECHNICAL SERVICE BULLETIN

Reference Number(s): SST 005, Date of Issue:  June 2005
KIA: Rio
Volume: 3
GROUP: Special Service Tool

SUBJECT

CONTROLLER AREA NETWORK (CAN) ADAPTER FOR HI-SCAN PRO

This bulletin provides information relating to the use of a Controller Area Network (CAN) Interface when using the Hi-Scan Pro to retrieve diagnostic information from a Kia vehicle that employs CAN communication between an Electronic Control Unit (ECU) and the Hi-Scan Pro.

The CAN interface (P/N 09900-20000) is being provided to all Kia retailers as a mandatory Special Service Tool (SST). Additional CAN interfaces and other Hi-Scan Pro accessories may be ordered by calling 866-542-8665.

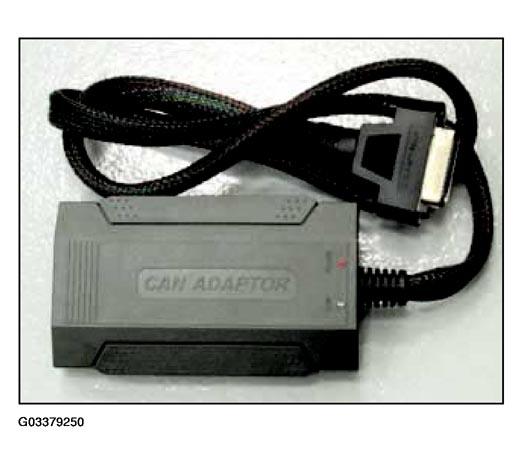

Fig 1: Identifying CAN Adaptor
G03379250

SERVICE PROCEDURE

  1. Download software version KP510 from the Kia Service Information System (KSIS). After reviewing the instructions included as part of the download file, install the software onto the Hi-Scan Pro Standard (green label) software card.

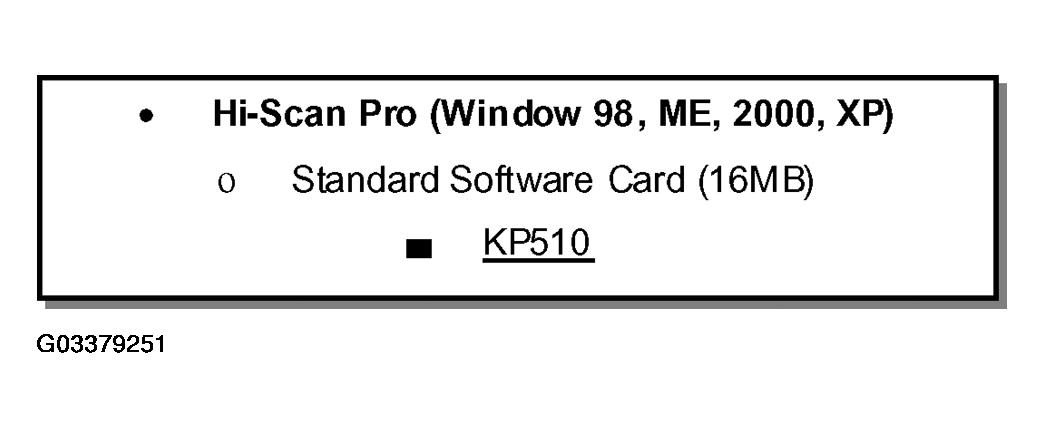

    Fig 2: Downloading Software Version KP510
    G03379251
  2. Ensure the Hi-Scan Pro is not connected to a vehicle. Remove the Diagnostic Link Connector (DLC) cable from the Hi-Scan Pro by loosening the two (2) screws.

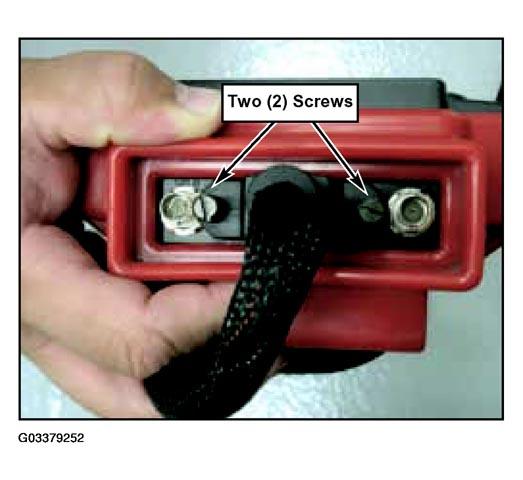

    Fig 3: Removing DLC Cable
    G03379252
  3. If either of the screw/nut assemblies are damaged, replace them with P/N K00U2100ST-NUT and K00U2100ST-SCREW.

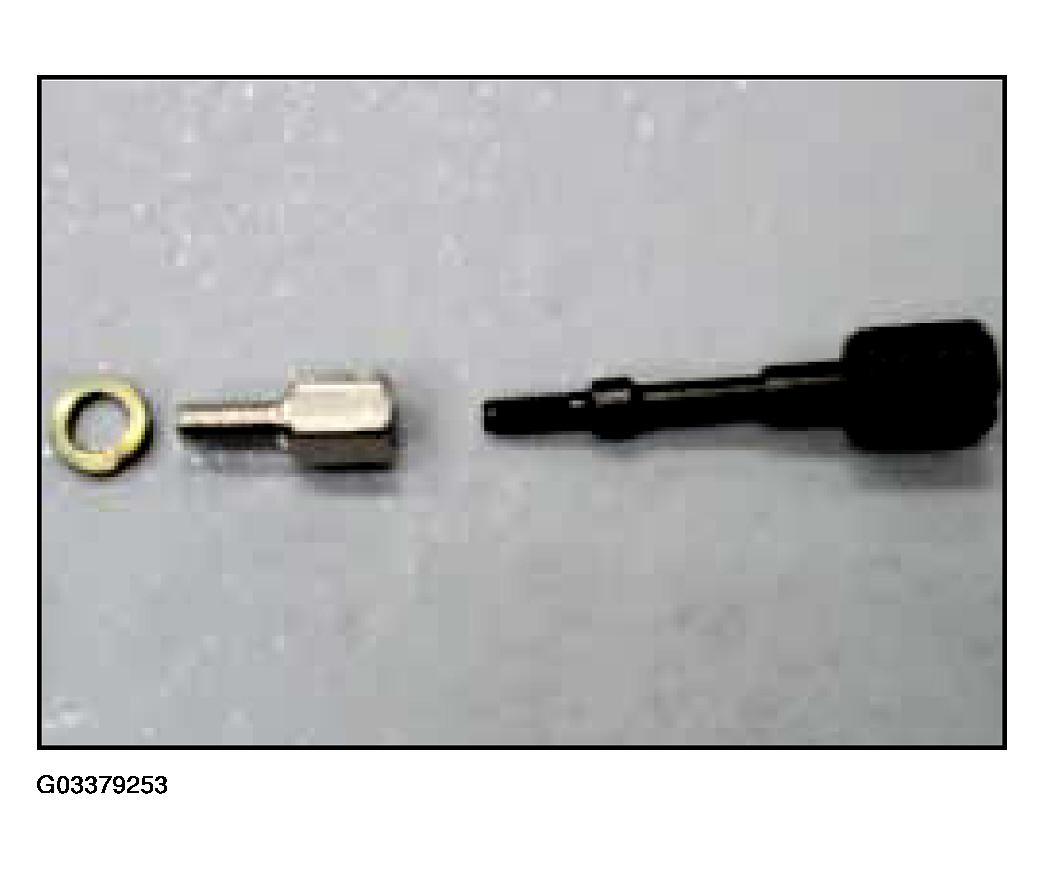

    Fig 4: Inspecting Screw/Nut Assemblies
    G03379253
  4. Connect the CAN Interface cable to the top of the Hi-Scan Pro. Tighten the two (2) screws by hand.

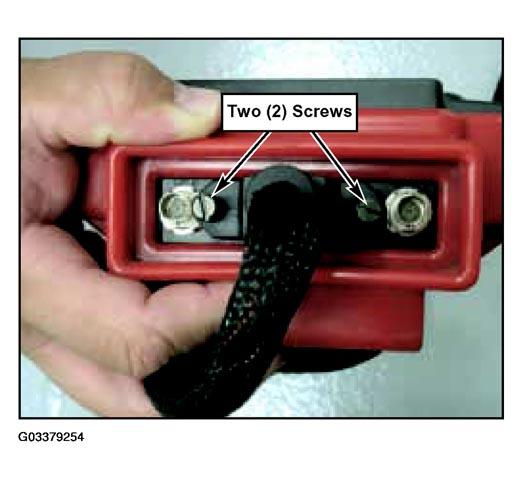

    Fig 5: Connecting CAN Interface Cable
    G03379254
  5. Connect the DLC cable to the CAN Interface. Tighten the two (2) screws by hand.

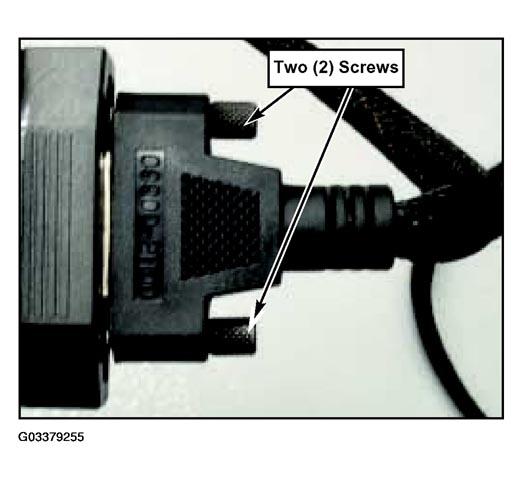

    Fig 6: Connecting DLC Cable To CAN Interface
    G03379255
  6. Place the switch located on the front of the CAN Interface into the "AUTO" position.

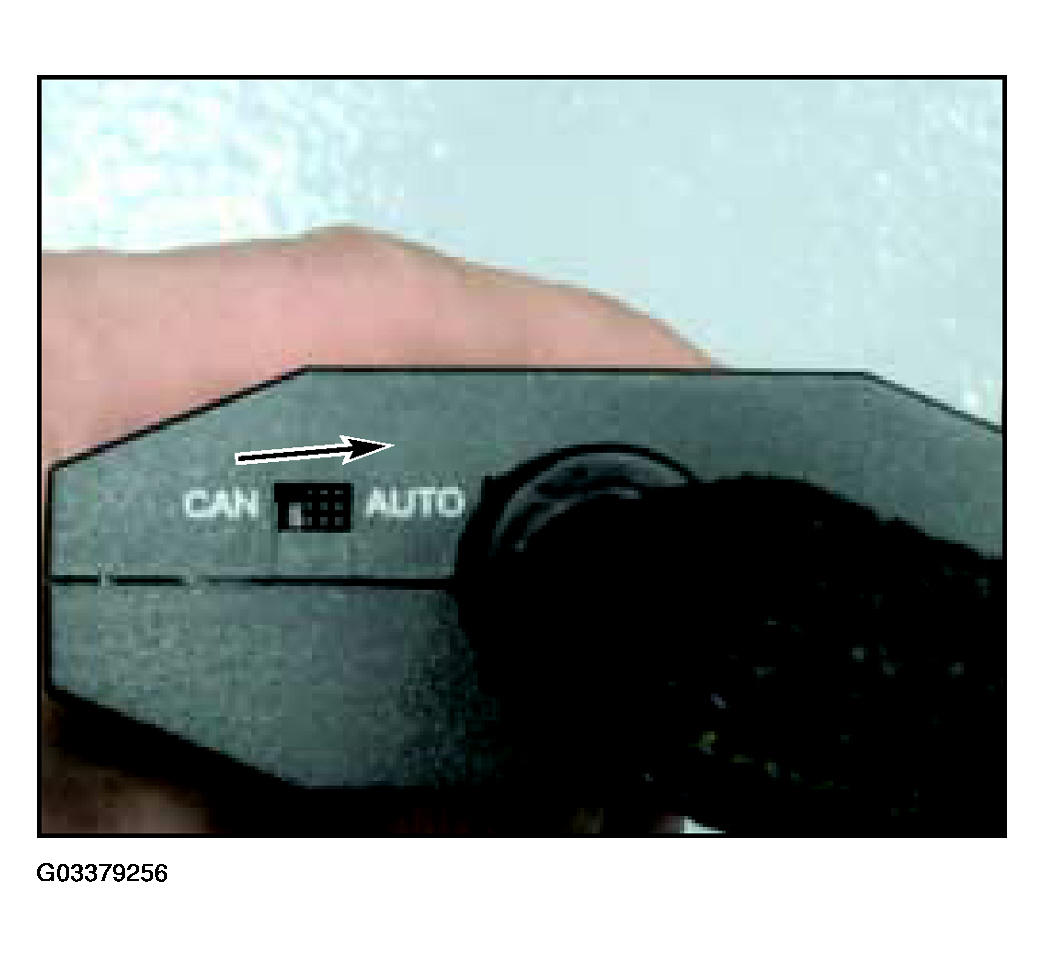

    Fig 7: Placing Switch into "AUTO" Position
    G03379256
  7. With the vehicle ignition in the OFF position, connect the DLC cable to the OBD-II connector of the vehicle. The red "POWER" LED on the CAN interface should illuminate.

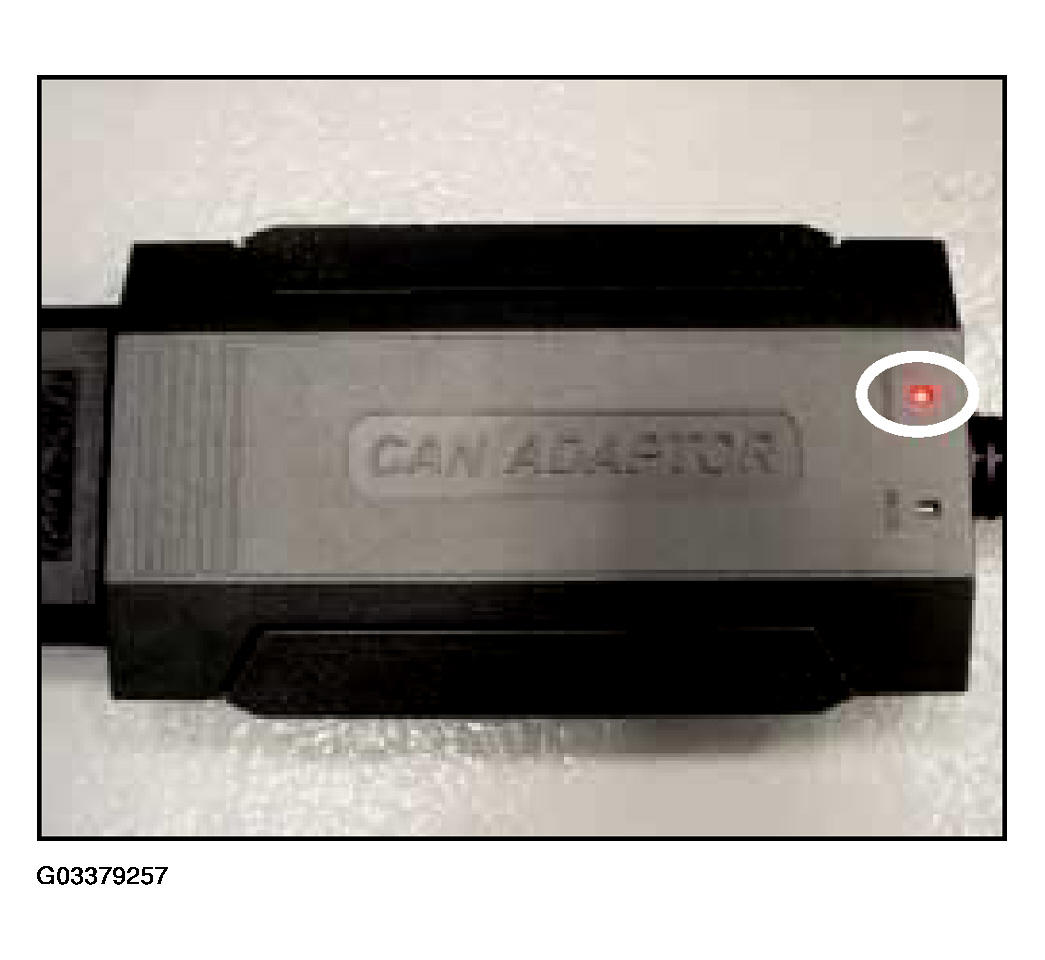

    Fig 8: Identifying Power LED
    G03379257
  8. Turn the Hi-Scan Pro ON. Access the appropriate System Select menu using the Hi-Scan Pro keypad.

    After selecting Engine Control or Automatic Transaxle Control, press the ENTER key on the Hi-Scan Pro. The display will indicate that the CAN adapter should be connected before continuing. Turn the ignition switch to the ON position and press the ENTER key on the Hi-Scan Pro.

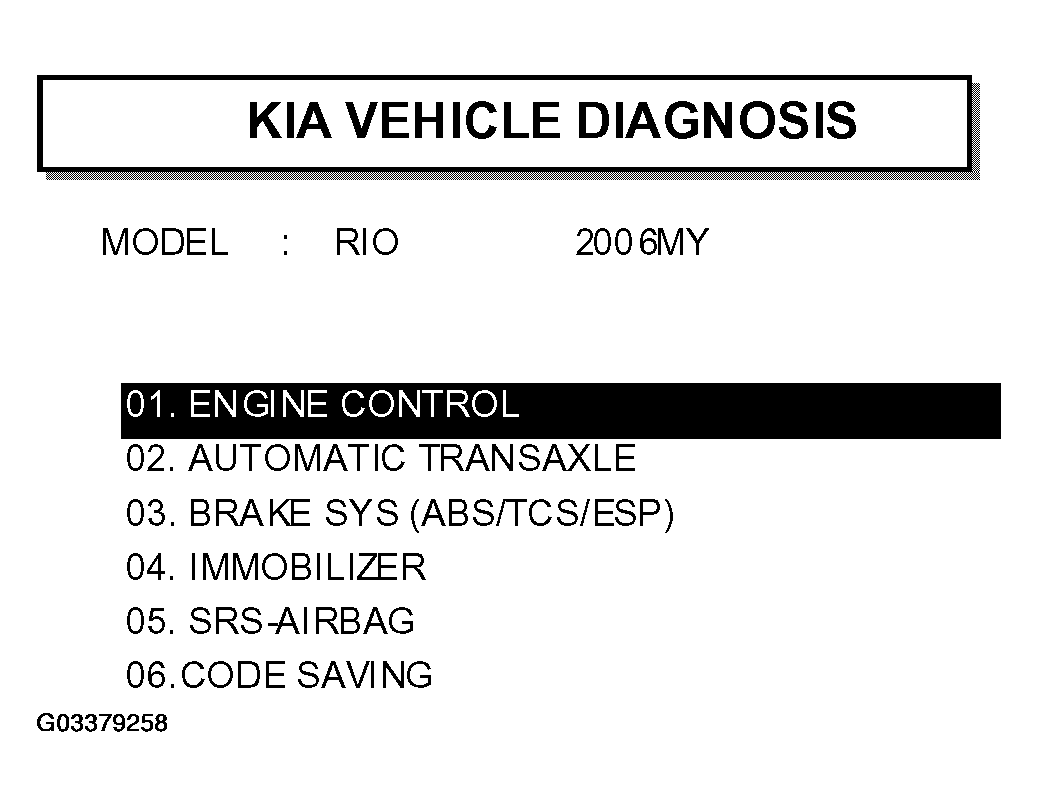

    Fig 9: System Select Menu
    G03379258
  9. The green "COM" LED on the CAN adapter will illuminate when communication with a CAN-compatible ECU is established.

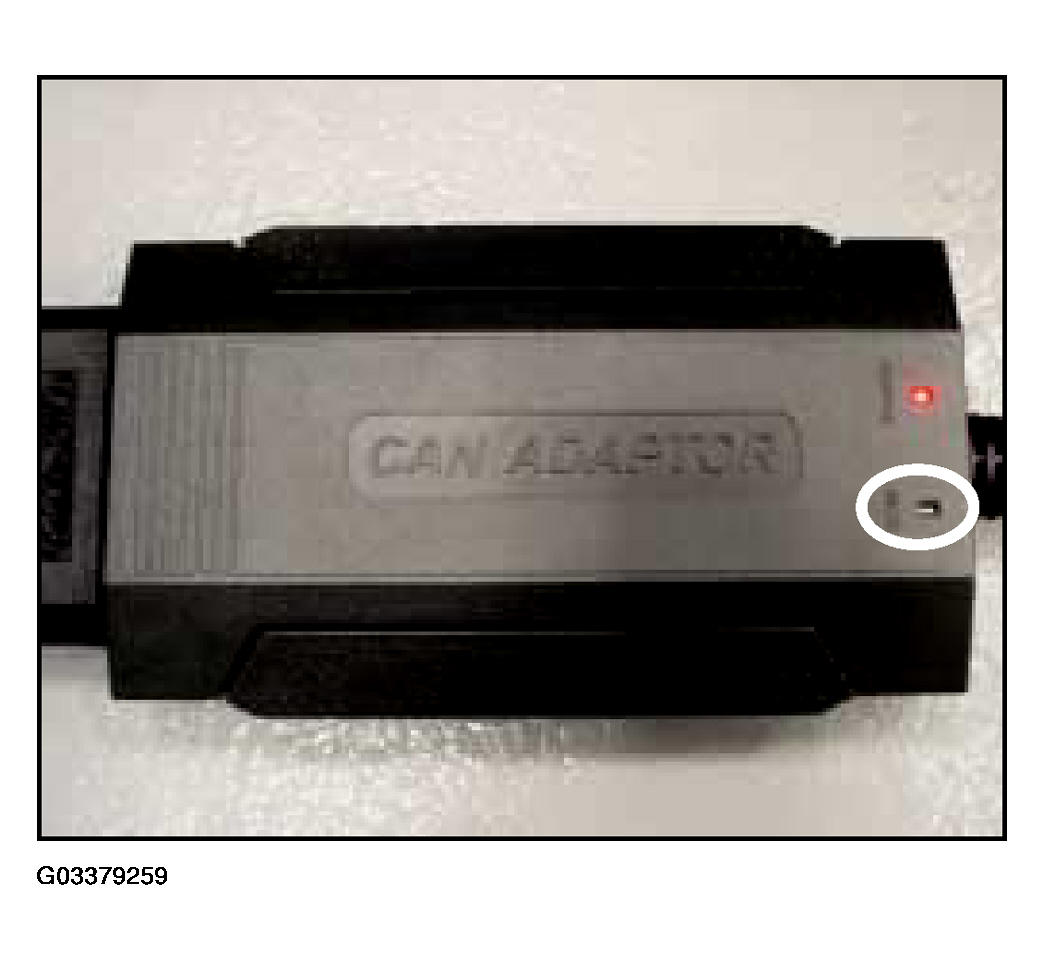

    Fig 10: Identifying Green LED
    G03379259
  10. Once communication is established, the required diagnostic functions may be performed.
    NOTE: The CAN Interface may remain connected to the Hi-Scan Pro. Communication with non-CAN compatible vehicles will not be affected.

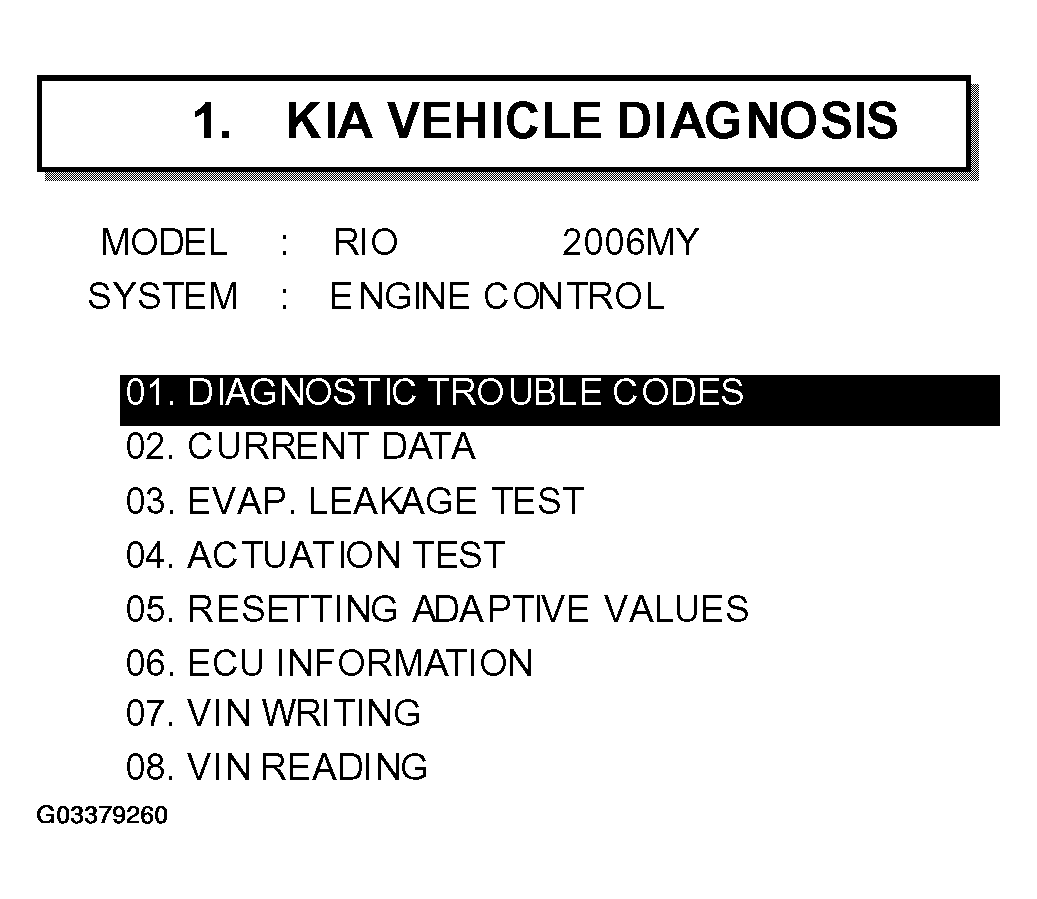

    Fig 11: Diagnostic Function Menu
    G03379260
