Rear Abs Sensor: Removal

Disconnect the negative battery cable from the battery.
Loosen the rear shock absorber attaching bolt.

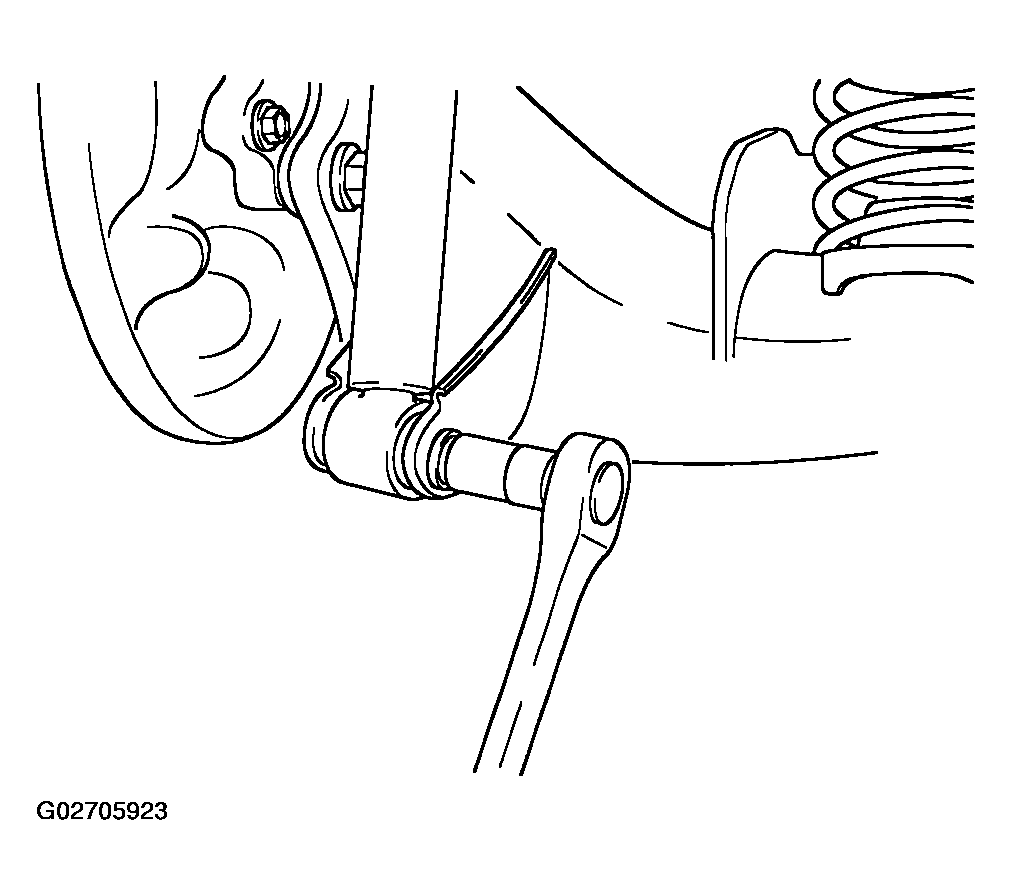

Fig 1: Loosening Rear Shock Absorber Attaching Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ABS sensor from the backing plate.

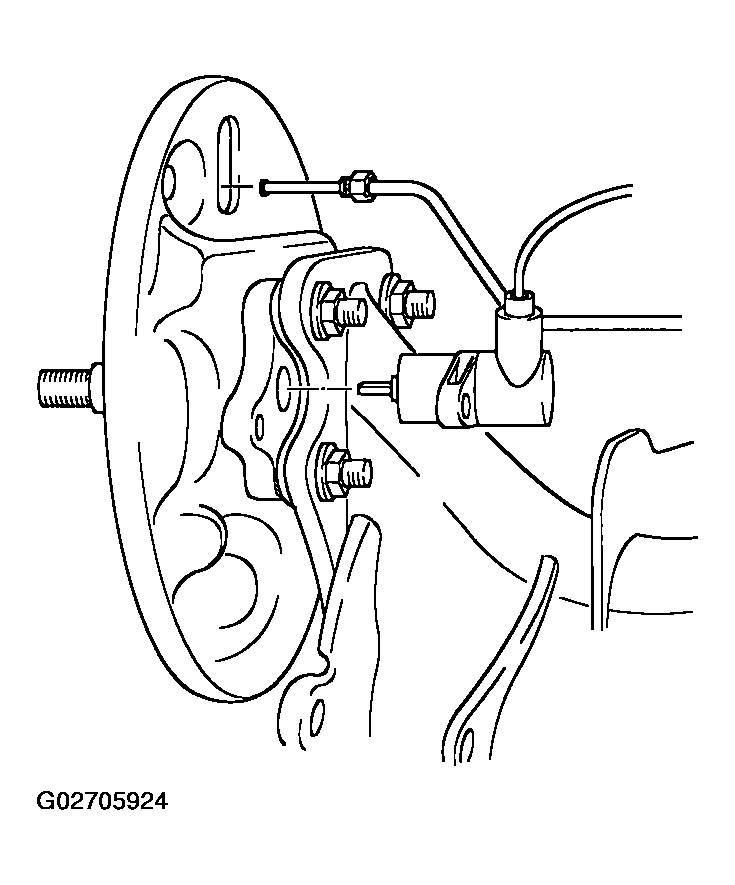

Fig 2: Removing ABS Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ABS sensor wire from the attaching clip.
After removing the rear seat and rear side door trim, remove the ABS sensor and connector.

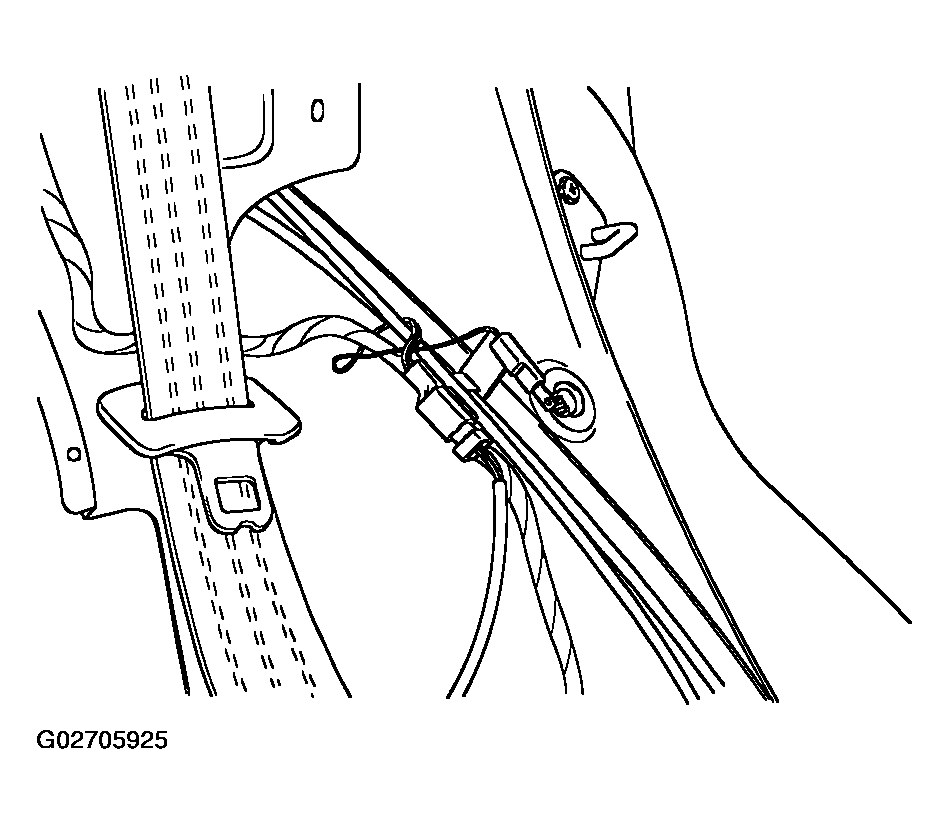

Fig 3: Disconnecting ABS Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
