Removal And Installation

  1. Remove negative battery cable.
  2. Disconnect horn wire.
  3. Remove the bolt holding the horn and remove the horn assembly.
  4. Installation is the reverse of removal. Bolt tightening torque 70-90 in.lbs. (80-110 kg-cm.).

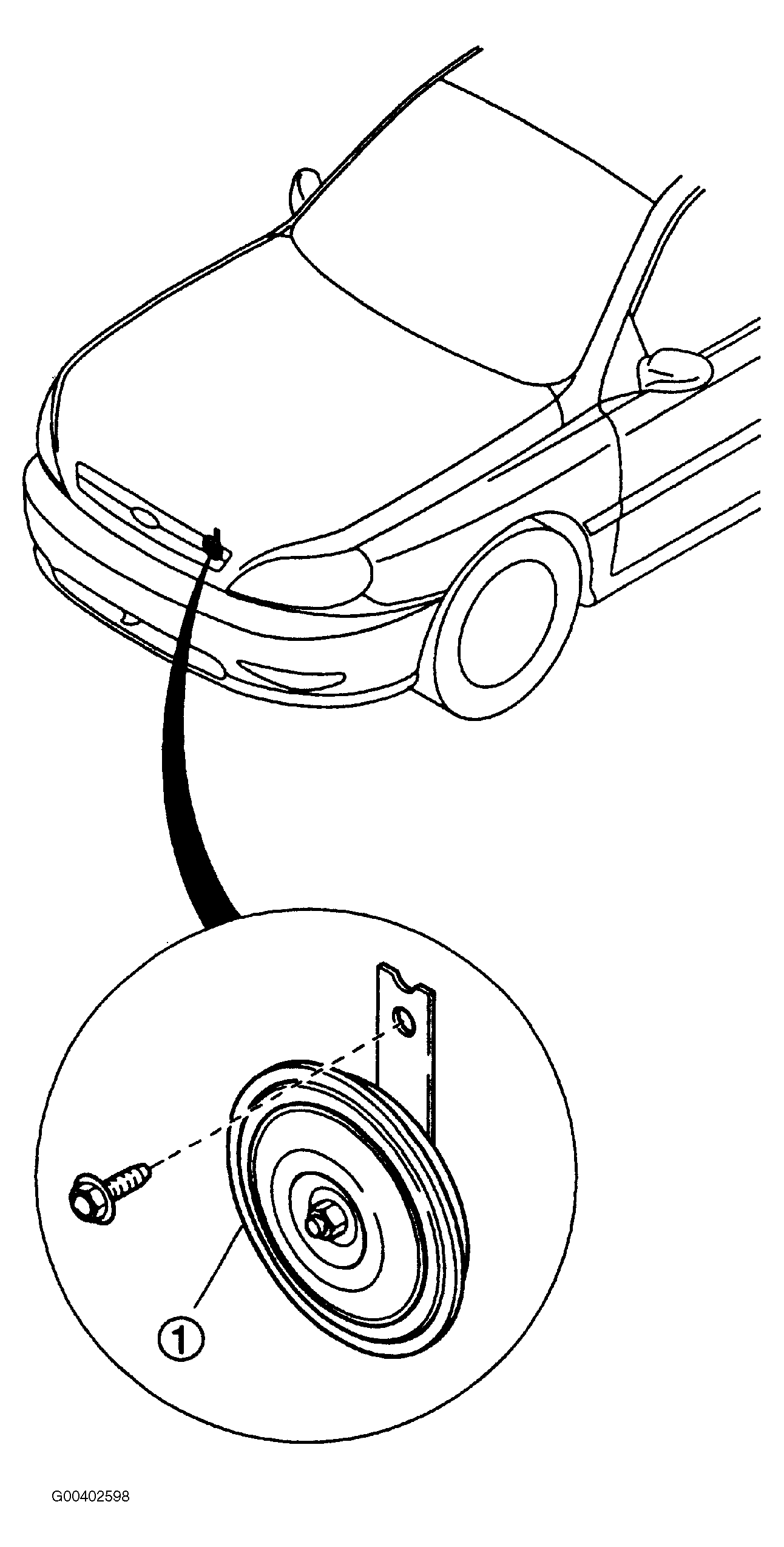

    Fig 1: Identifying Horn Location
    G00402598Courtesy of KIA MOTORS AMERICA, INC.
