ABS Control Unit Connector End View

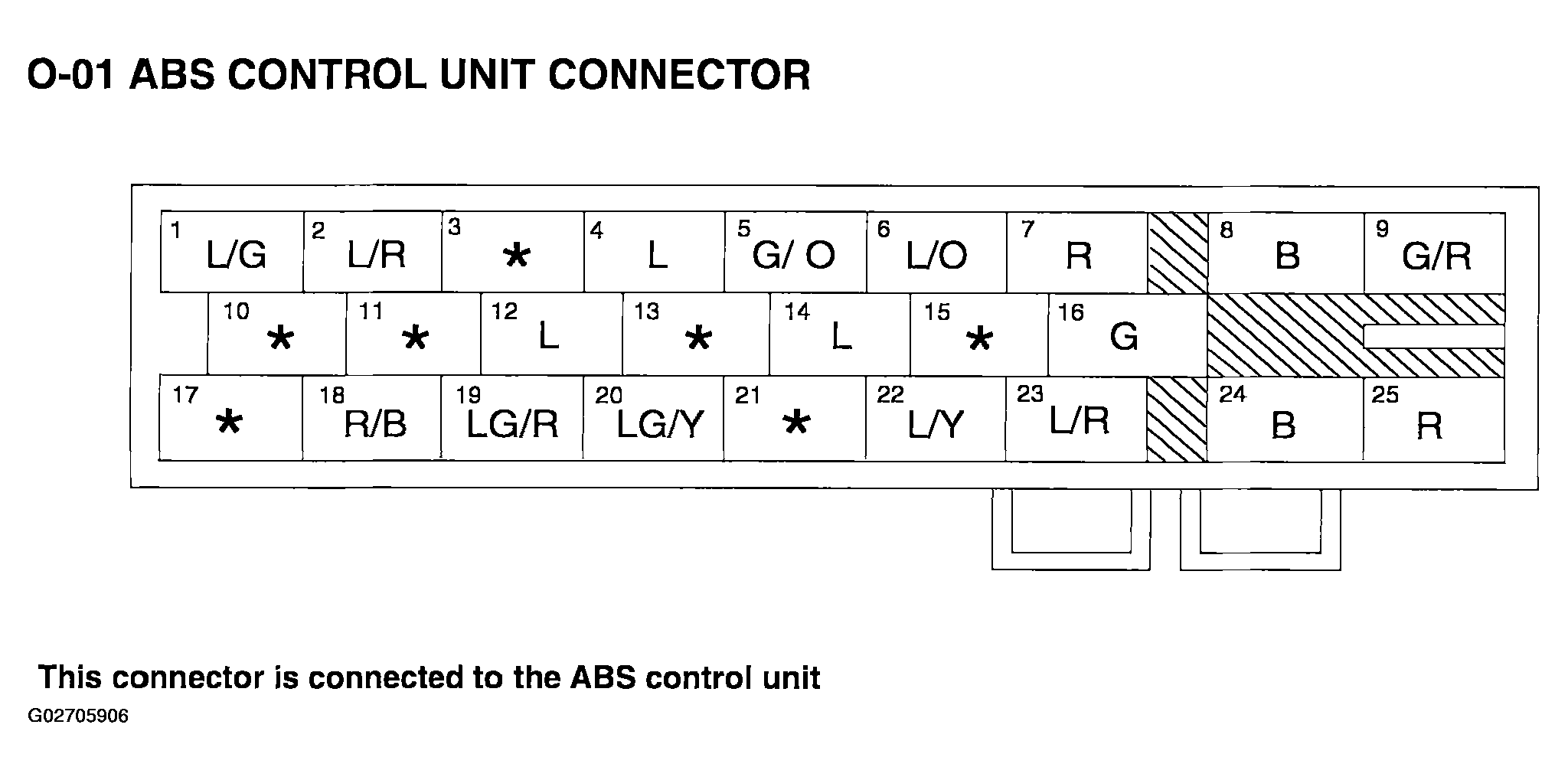

Fig 1: ABS Control Unit Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
