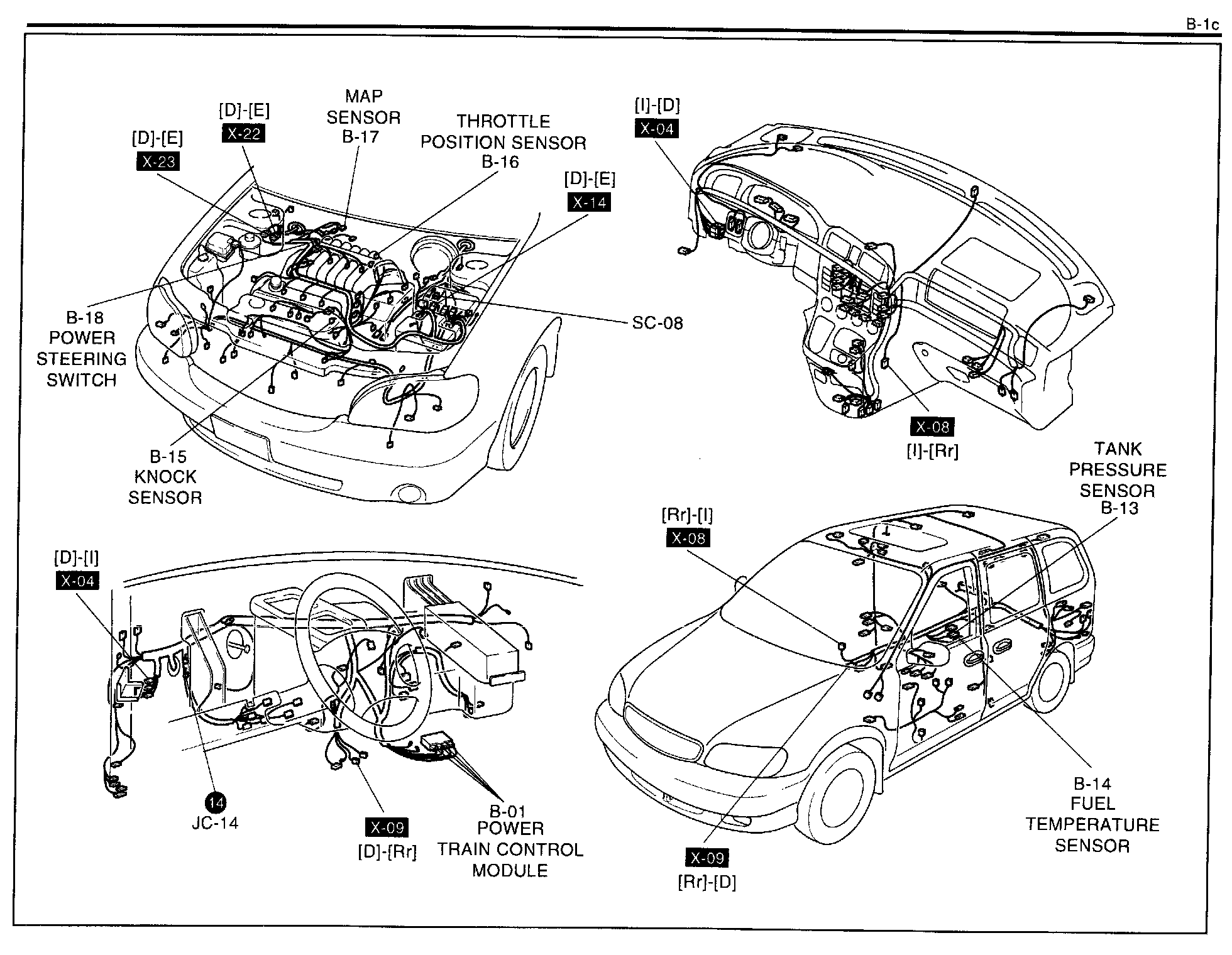

B-1c - Powertrain Control System (PCM)
B-1c - Power Train Control System (PCM) Harness/Connector Symbols:
