Service Data For Sensors and Actuators

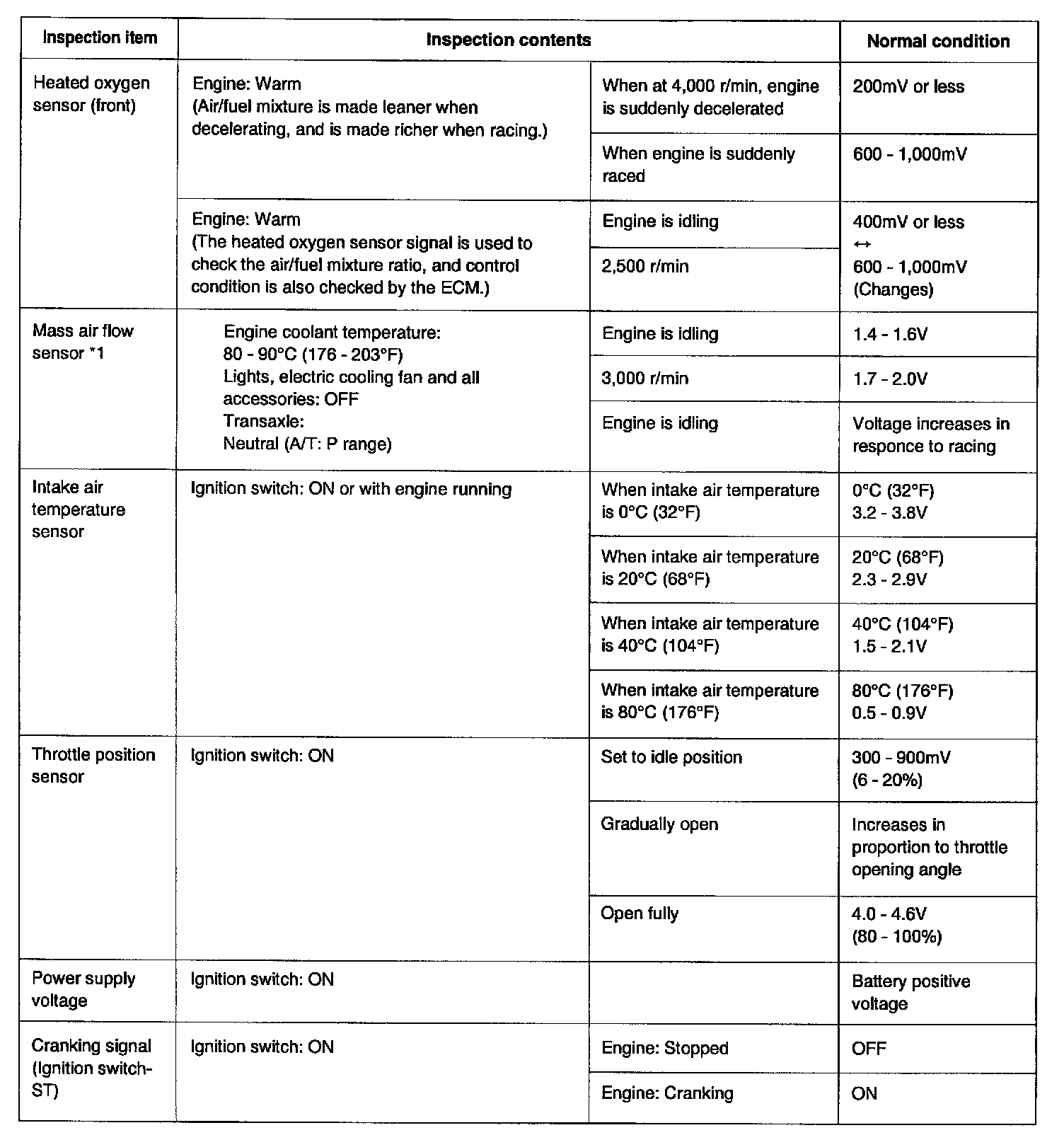

Service Data For Sensors And Actuantors Part 1:

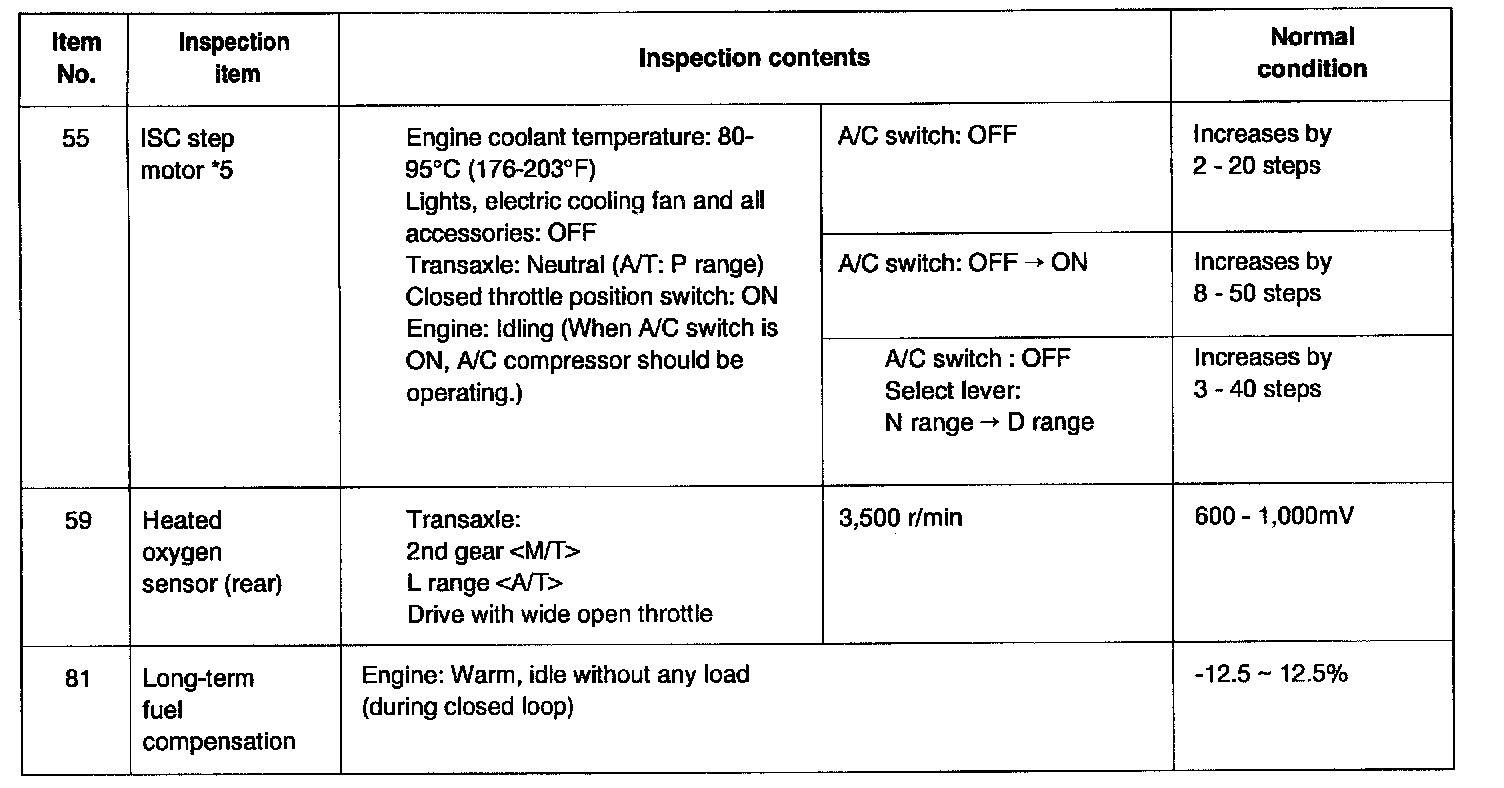

Service Data For Sensors And Actuantors Part 2:

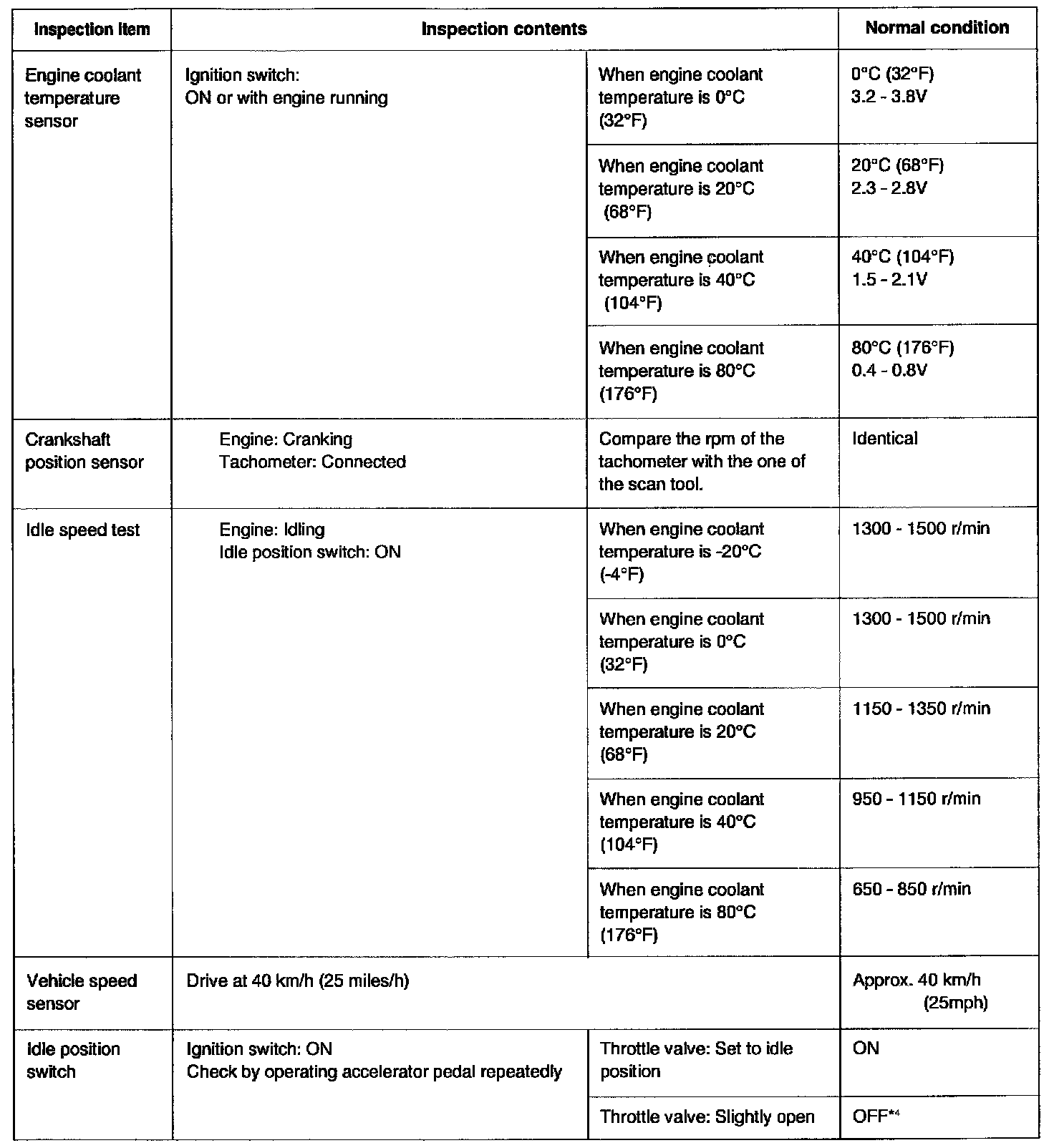

Service Data For Sensors And Actuantors Part 3:

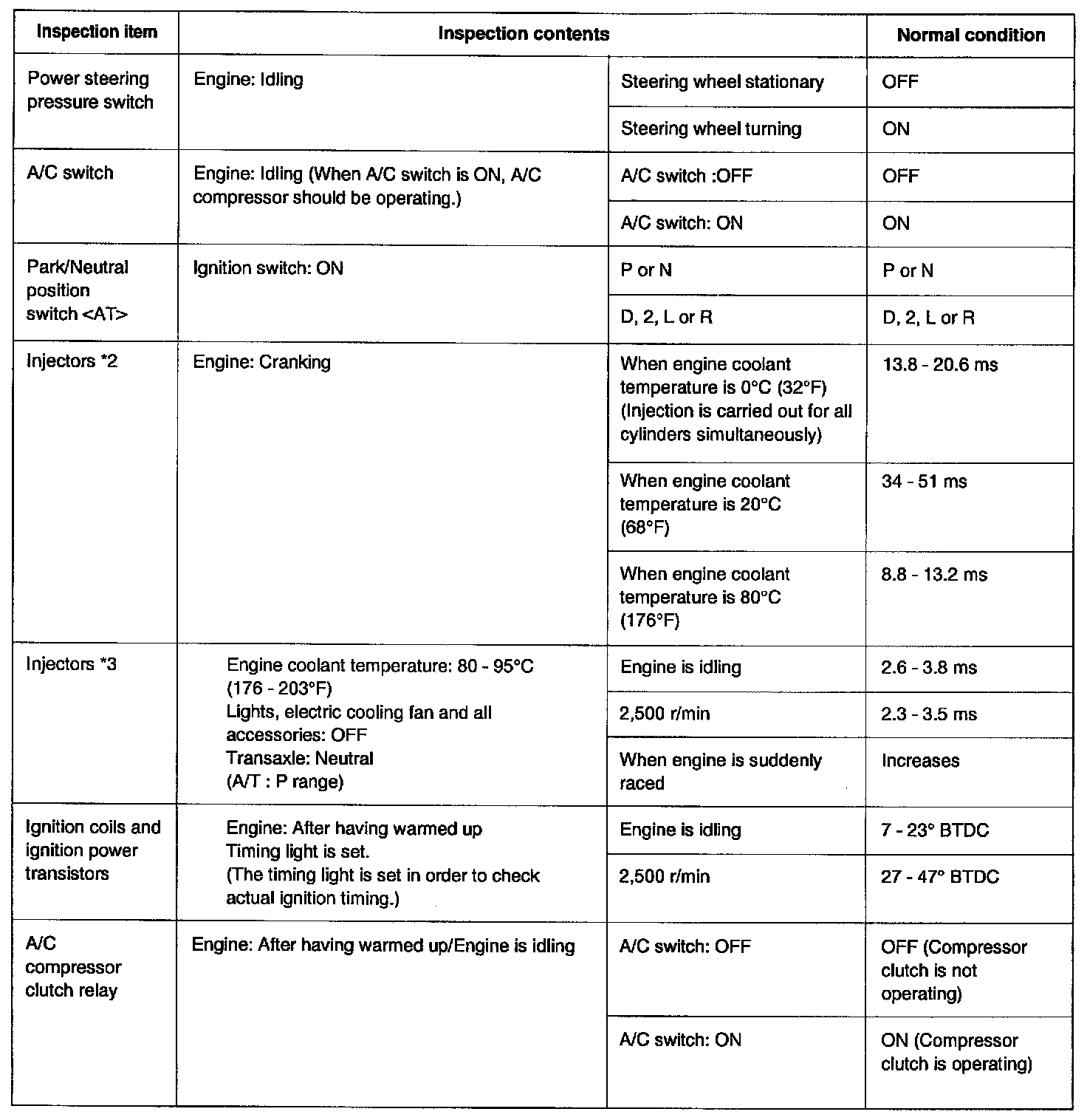

Service Data For Sensors And Actuantors Part 4:
