Removal - Cruise Control Cable

  1. Disconnect cable and conduit from engine bracket.
  2. Disconnect cable and fitting from throttle body lever stud.

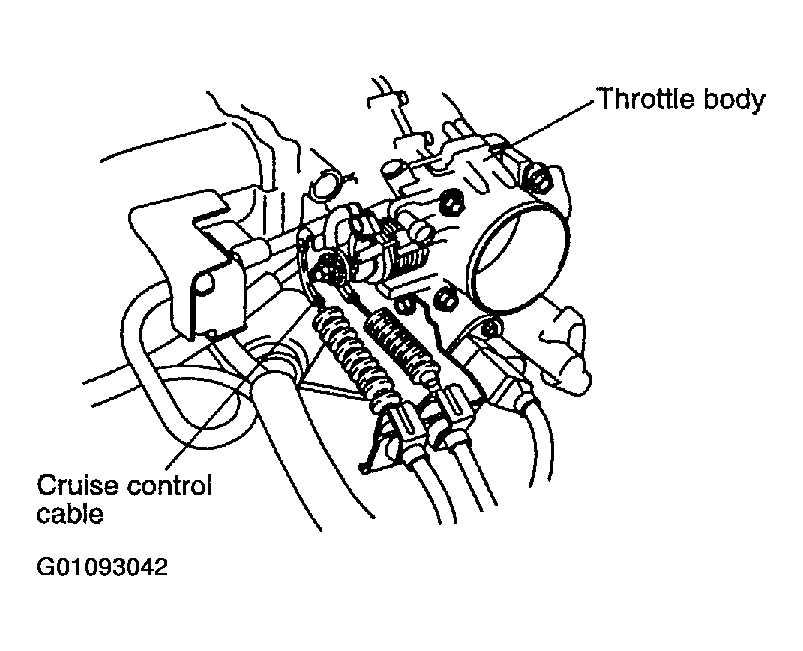

    Fig 1: Disconnecting Cable & Fitting From Throttle Body Lever Stud
    G01093042Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect cable bead from cruise motor ribbon end fitting on cruise control module.
    Fig 2: Disconnecting Cable Bead From Cruise Motor Ribbon End Fitting
    G01093043Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove cable from vehicle.
