Removal - Cruise Control Module

Disconnect battery negative cable.
Disconnect cruise control cable from throttle body.
Disconnect cruise control cable from cruise control module.

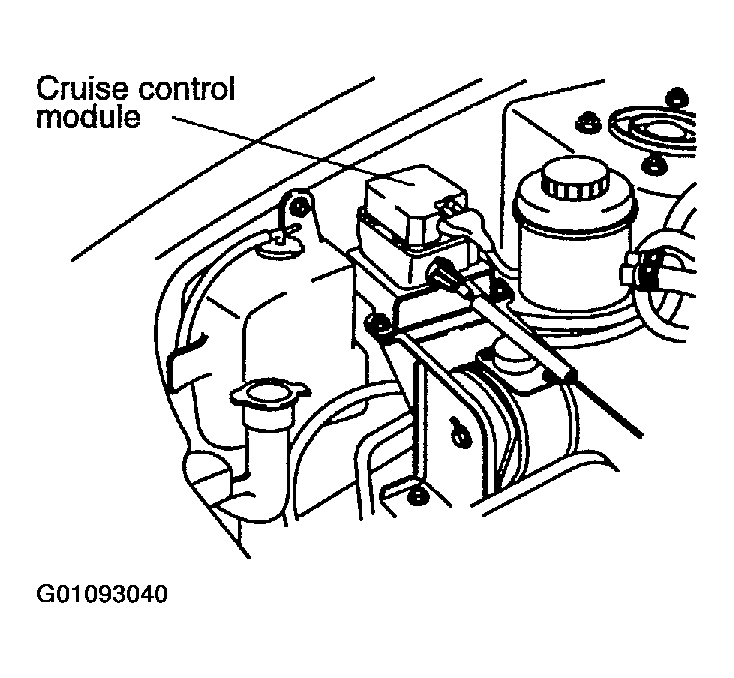

Fig 1: Disconnecting Cruise Control Cable From Cruise Control Module
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect control module connector from cruise control module.
Remove three bolts securing control module with bracket.

Fig 2: Removing Bolts Securing Control Module With Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Remove control module with bracket from engine compartment.
Remove three bolts attaching cruise control module to bracket.
Remove control module from bracket.

Fig 3: Removing Control Module From Bracket
Courtesy of KIA MOTORS AMERICA, INC.
