Window Motor Regulator Assembly: Installation

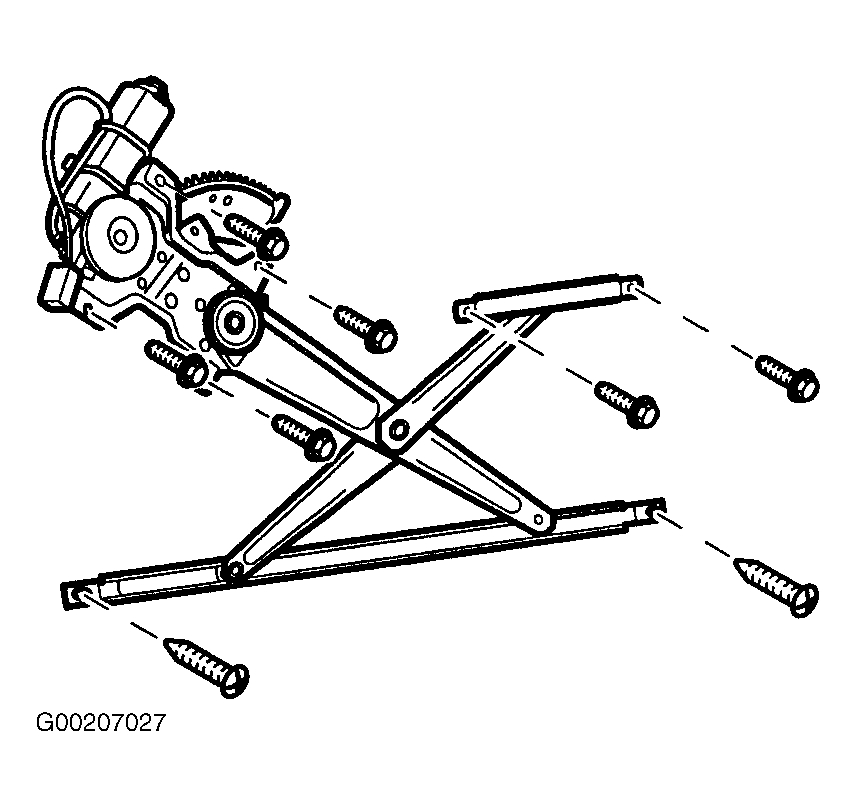

- Install glass guide and one bolt loosely. Install window motor regulator assembly through access hole in door. Reconnect window motor harness connector.
- Install window glass by tilting toward hinge side of door. Place glass on small bracket on window regulator. Loosely install 2 window-to-regulator bolts. Reconnect window switch and negative battery cable.
- Turn ignition on and operate window up and down to ensure correct operation. To complete installation, reverse removal procedure.
Courtesy of KIA MOTORS AMERICA, INC.
