Lubrication System: Components

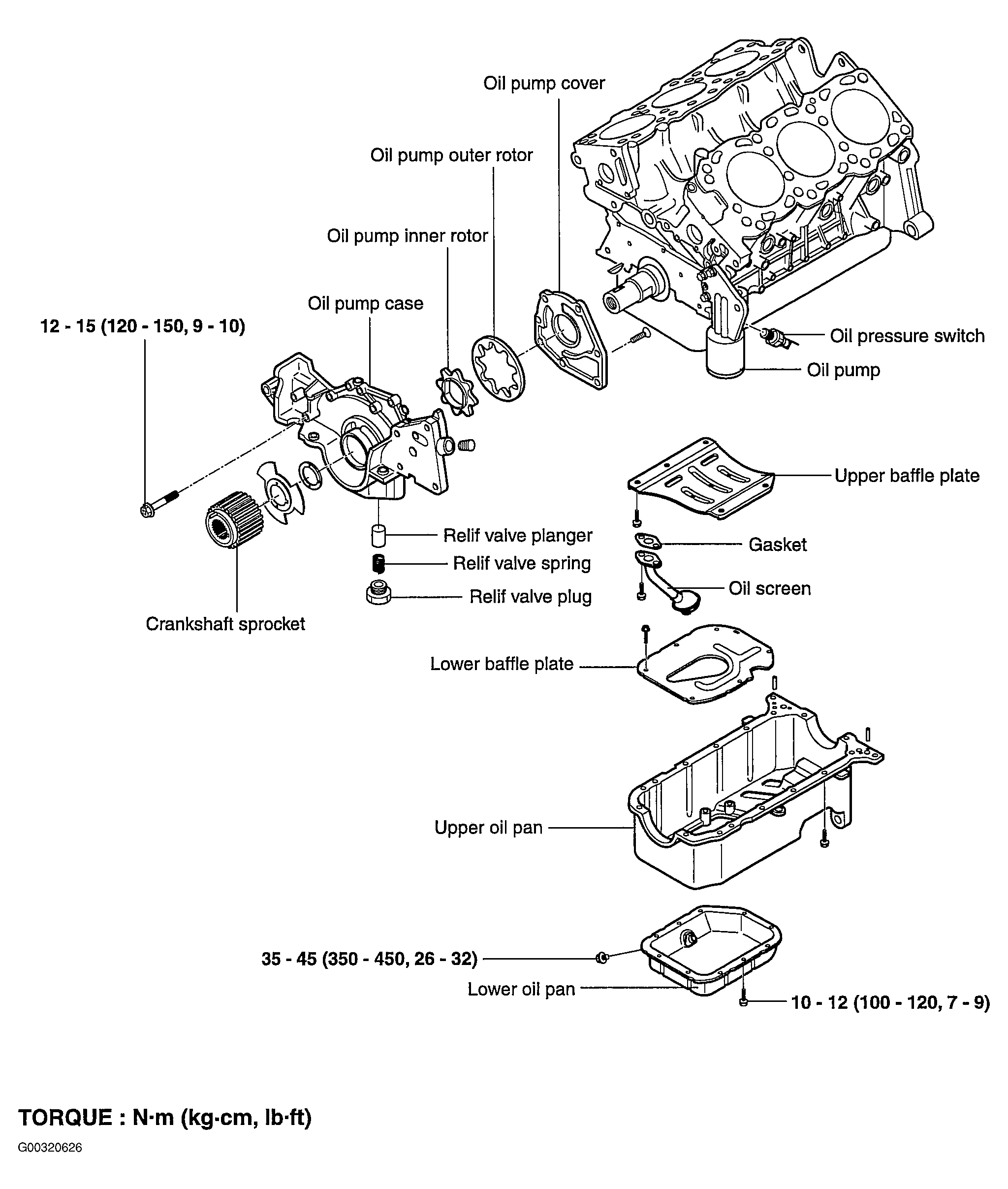

Fig 1: Exploded View Of Oil Pump & Oil Pan

G00320626

Courtesy of KIA MOTORS AMERICA, INC.
